Connector repair
This procedure includes HDMI, DisplayPort and audio connectors.
The connectors are on the main board (board part number 60104-10172).

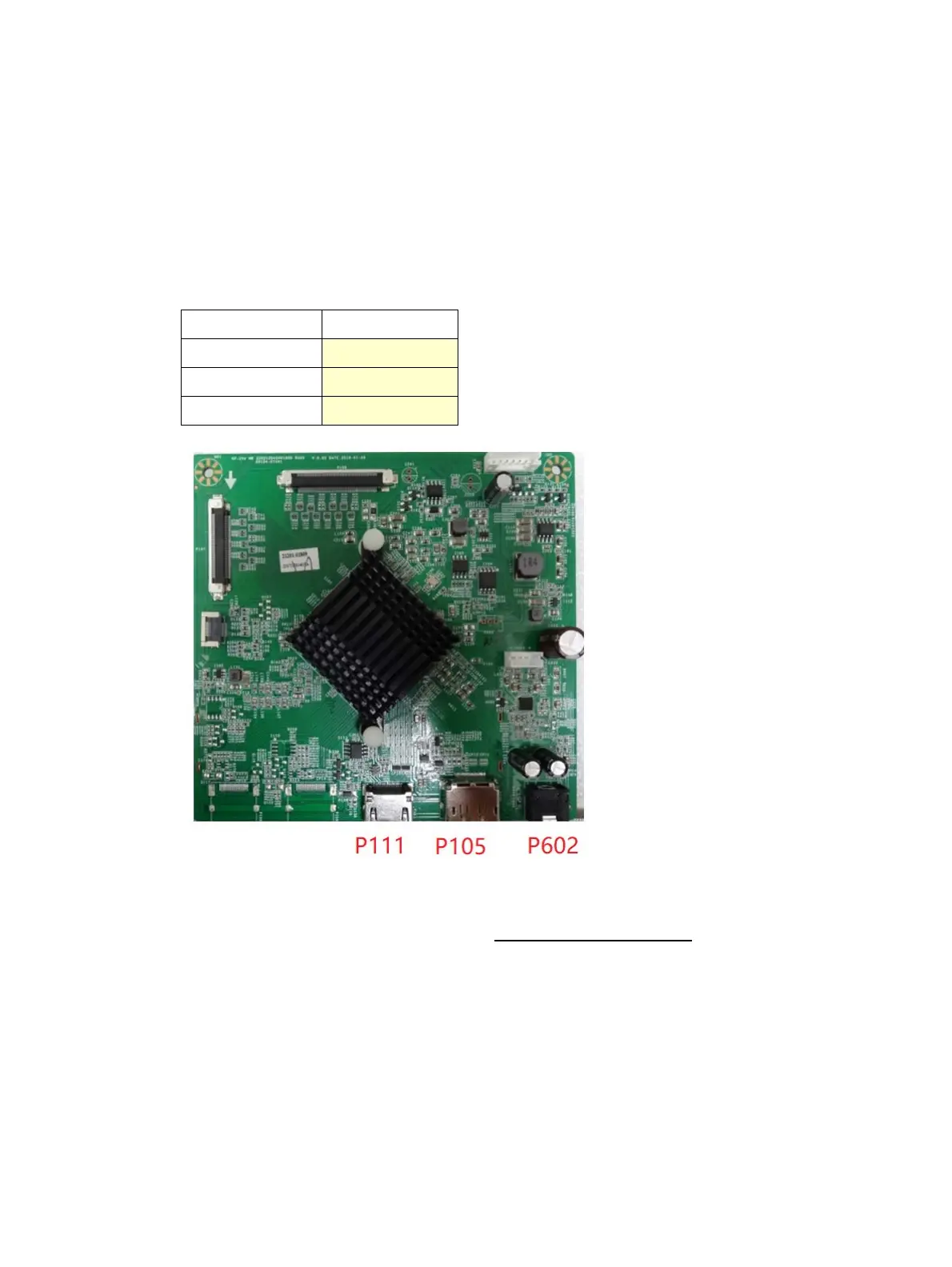

The connectors identifiers are as follows:
Before repairing connectors, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 9
.
Audio connector P602
Repair the audio connector:
1) Use a hot air gun to melt the solder on the pins. Pin solder with soldering iron and absorber. You
can gently push down with the soldering iron once everything is molten to move the P602 out of the
through holes.
