HP Z2 Mini G5 - Page 7

Document No. : Ludao disassembly SOP station :
Operation Name : Ver. : Edit date
Step：
Standard Operation Procedure
Notice: Please inform production line leader or master if you found any abnormal..
Fixture list (Spec.) Qty
Symbol
Safe
Order
Hear
Look
manu
al
Static
Qual
ity
Fix
tur
e
Issue Department：
Lister：
Zhou. Gui-lin
Industrial Engineering Class
2(2/2)
For no HDD SKU
Pic1
Pic2

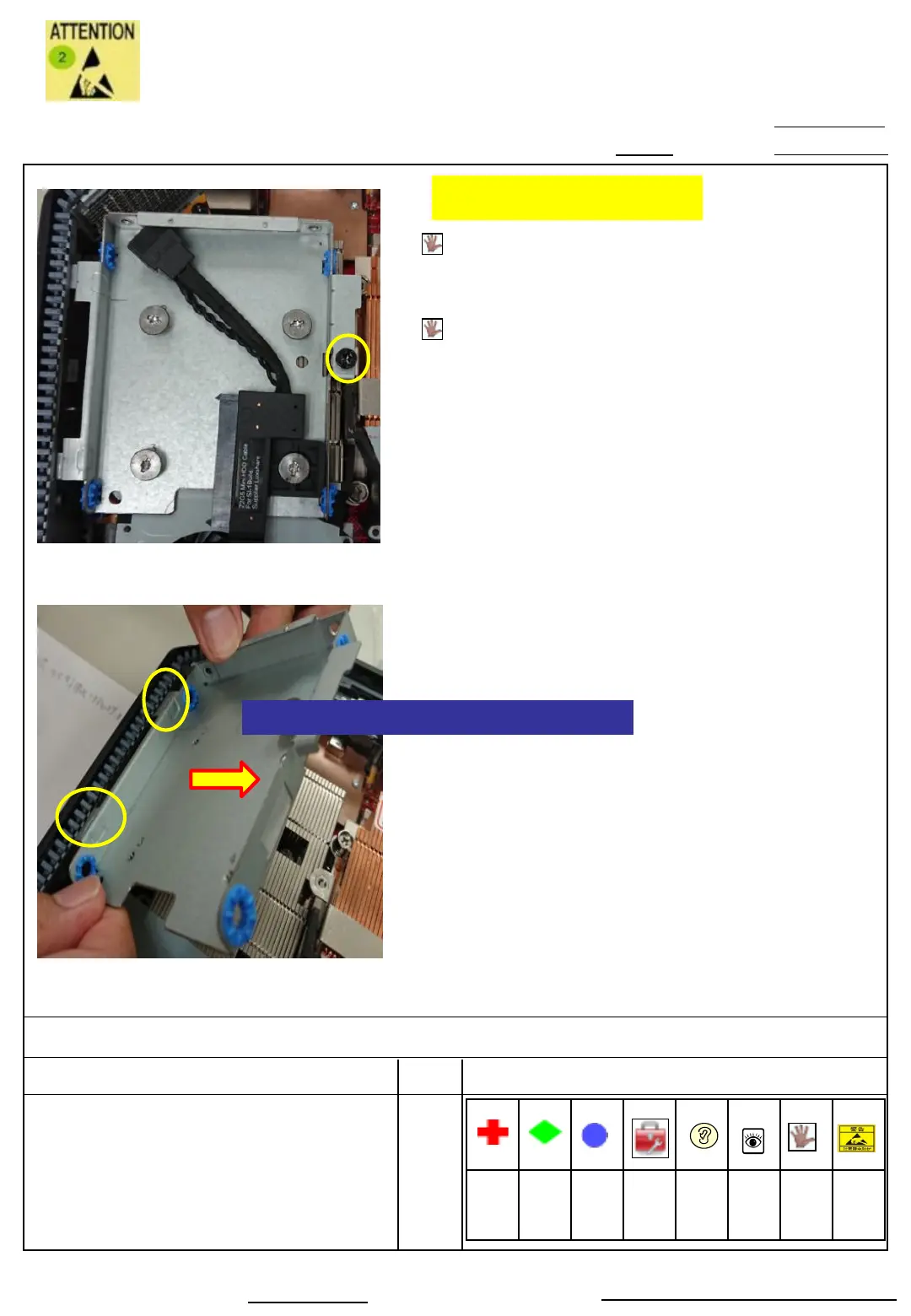

1. Disassemble the HDD set screw*1（Pic1）
the torque force of the driver is 2.5+/-
0.2kgf.cm
2.Take out the HDD in the oblique direction
（Pic2）
Disassemble HDD
Take out the HDD in the oblique direction
Half finger insert 1
T8 electric screw driver 1
2020/7/1
0.20
