Disassemble HDD
Half finger insert 1
2(1/2)

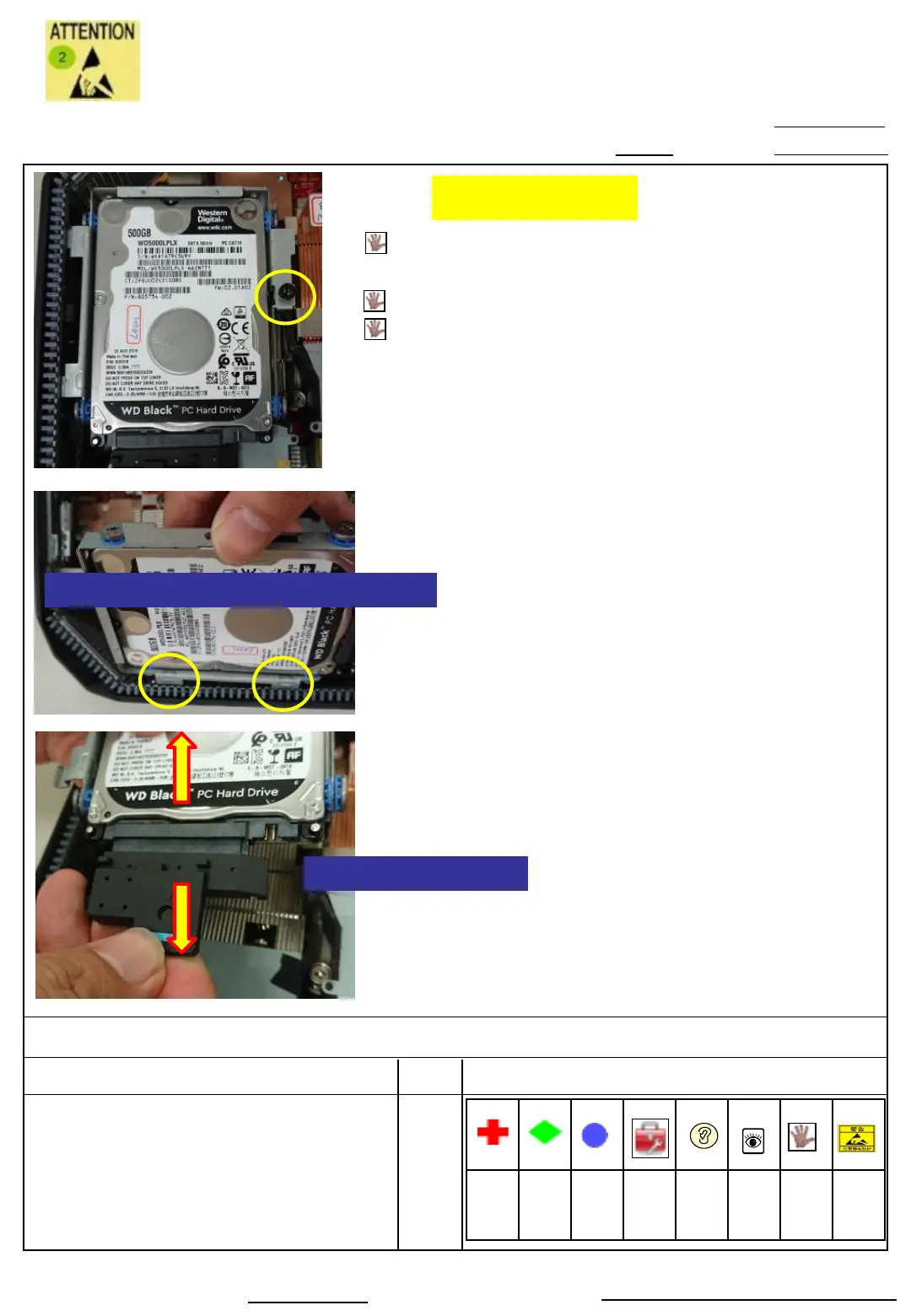

1. Disassemble the HDD set screw*1（Pic1）
the torque force of the driver is 2.5+/-0.2kgf.cm
2.Take out the HDD in the oblique direction（Pic2）
3.Disassemble HDD and HDD cable（Pic3）
the HDD cable shall be pulled out horizontally
For HDD SKU
Pic1
T8 electric screw driver 1
pulled out horizontally
Take out the HDD in the oblique direction
Pic2
Pic3
2020/7/1
0.20
