11
f. Alternate DNS Address
Leave as default value and hit Enter
Default Setting : 0.0.0.0
Recommended Setting : Network Dependent
g. Wired LAN IPV6 Configuration
Select Enabled option for IPv6 Feature Selection
If DHCP is disabled, then steps 8h through 8i are required to configure the
IPV6 static IP address.

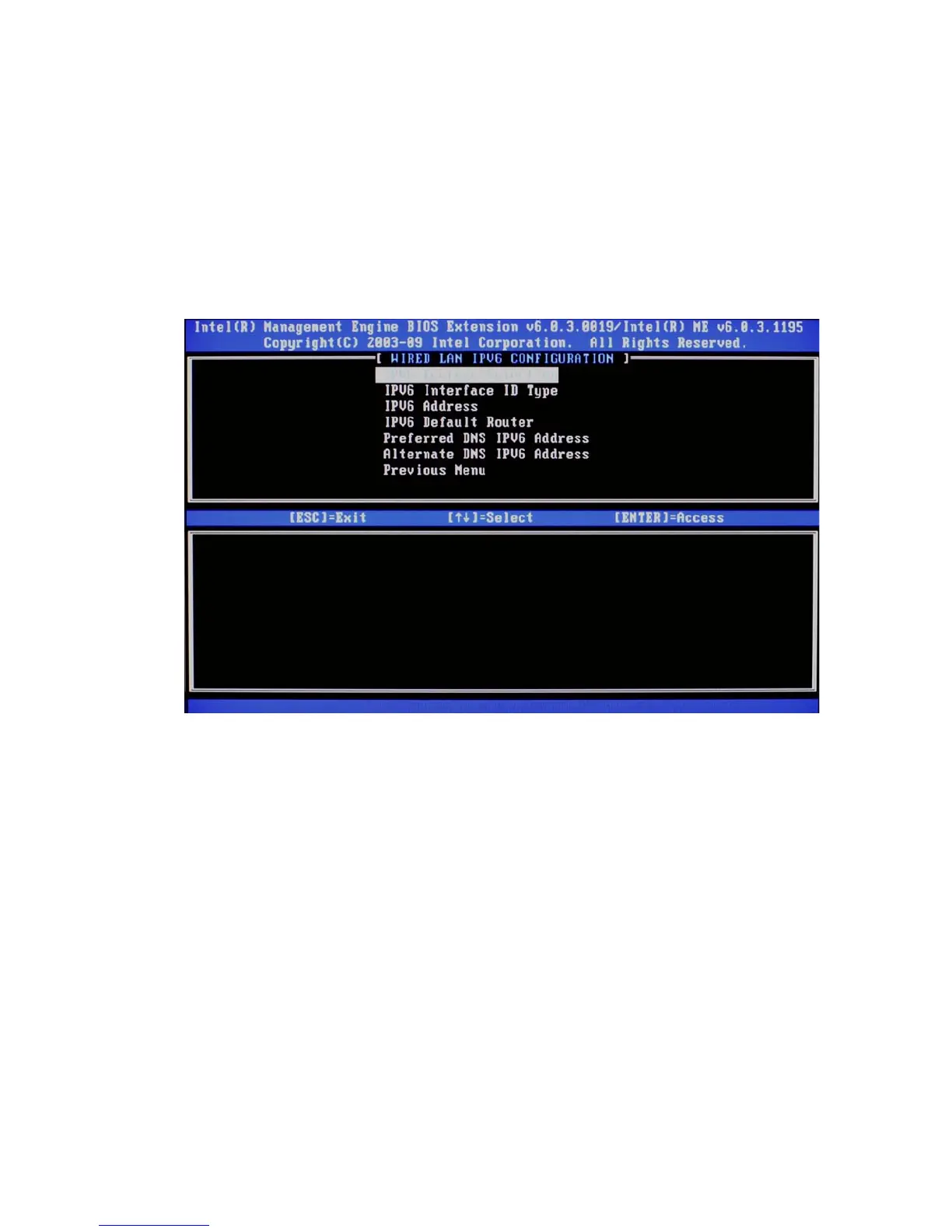

Figure 6: Intel ME Wired LAN IPv6 Configuration Screen
i. IPv6 Interface ID Type.
Default Setting : Random ID
Recommended Setting : Random ID
RANDOM ID - The IPv6 Interface ID is automatically generated using a
random number as described in RFC 3041. This is the default.
Intel ID - The IPv6 Interface ID is automatically generated using the
MAC address.
Manual ID - The IPv6 Interface ID is configured manually. Selecting this
type requires that the Manual Interface ID is set with a valid value.
