HP Z220 CMT Series User Manual

HP Z220 CMT Workstation rear panel

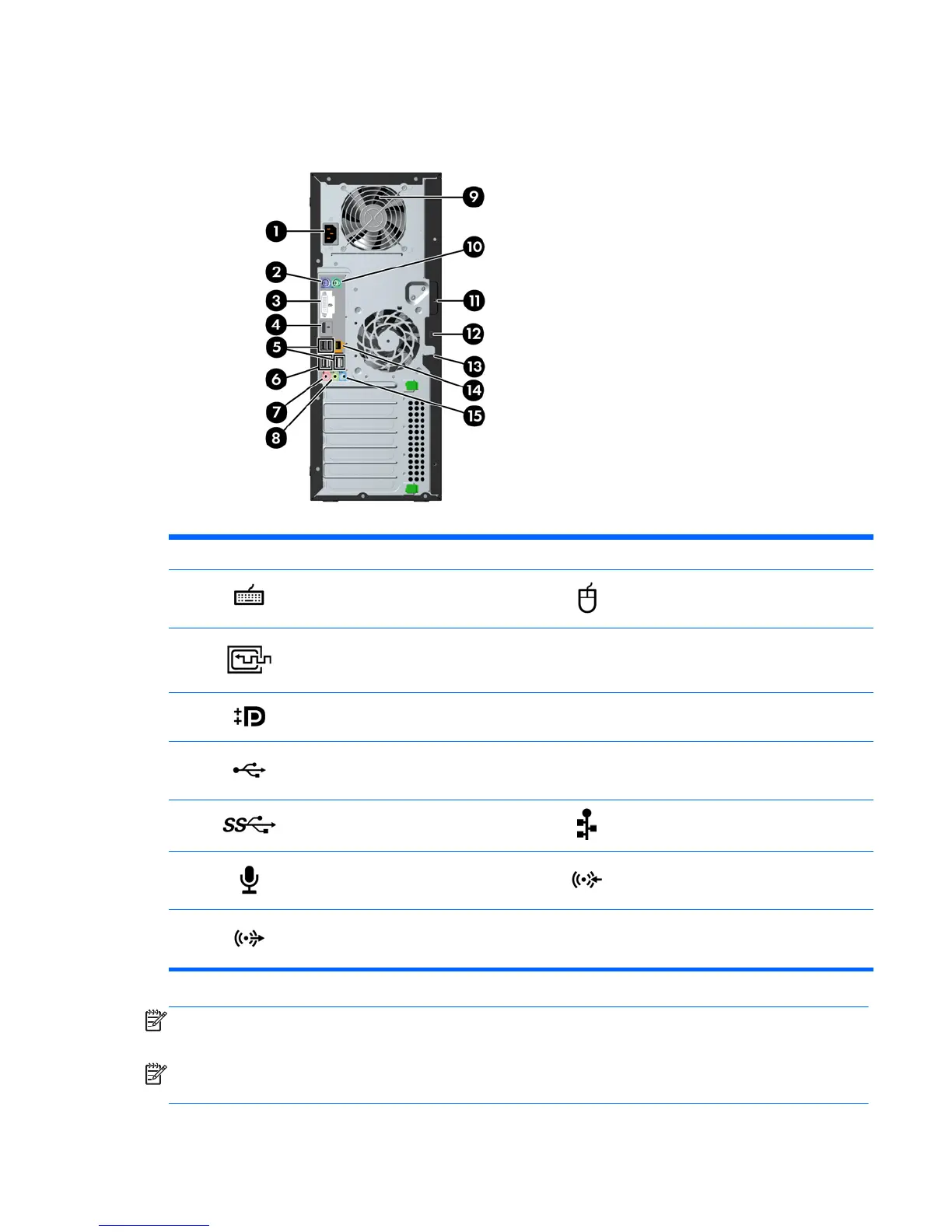

Figure 2-4 Rear panel components
Table 2-4 Component descriptions
1 Power cord connector 9 Power supply Built-In Self Test (BIST) LED
2
PS/2 keyboard connector (purple) 10 PS/2 mouse connector (green)
3
DVI-I connector 11 Universal chassis clamp opening
4
Display Port (DP) connector 12 Cable lock slot
5
USB 2.0 ports (4) (black) 13 Padlock loop
6
USB 3.0 ports (2) (blue) 14 RJ-45 network connector
7
Microphone connector (pink) 15 Audio line-in connector (blue)
8
Audio line-out connector (green)
NOTE: The labels for the rear panel connectors use industry-
standard icons and colors.
NOTE:
The DP and DVI-I ports are not supported when the system is configured with Intel Xeon E3-12x0 v2 processors. Also, if a discrete graphics card
is installed these ports are disabled by default.
NOTE:
Simultaneous usage of integrated Intel HD graphics and discrete graphics cards (in order to drive more than two displays) can be enabled using
the Computer (F10) Setup Utility. However, HP recommends using only discrete graphics cards when attaching three or more displays.
HP Z220 CMT Workstation components
11

HP Z220 CMT Series Specifications

General

Chipset	Intel C216
Network	Integrated Intel 82579LM Gigabit Ethernet
Form Factor	Convertible Minitower (CMT)
Processor Options	Intel Core i3, Intel Core i5, Intel Core i7
Memory	Up to 32 GB DDR3
Storage Options	3.5" Hard Disk Drives
Graphics	Integrated Intel HD Graphics, NVIDIA Quadro, AMD FirePro
Expansion Slots	1 x PCIe x16, 1 x PCI
Ports	2 USB 3.0
Operating System	Windows 8 Pro, Windows 7 Professional
Power Supply	400W (90% efficiency)
Dimensions	17.5 inches
