HP Z220 CMT Series User Manual

6. On the back of the front bezel, squeeze the HP logo mounting tabs (1) and press the logo outward
(2).

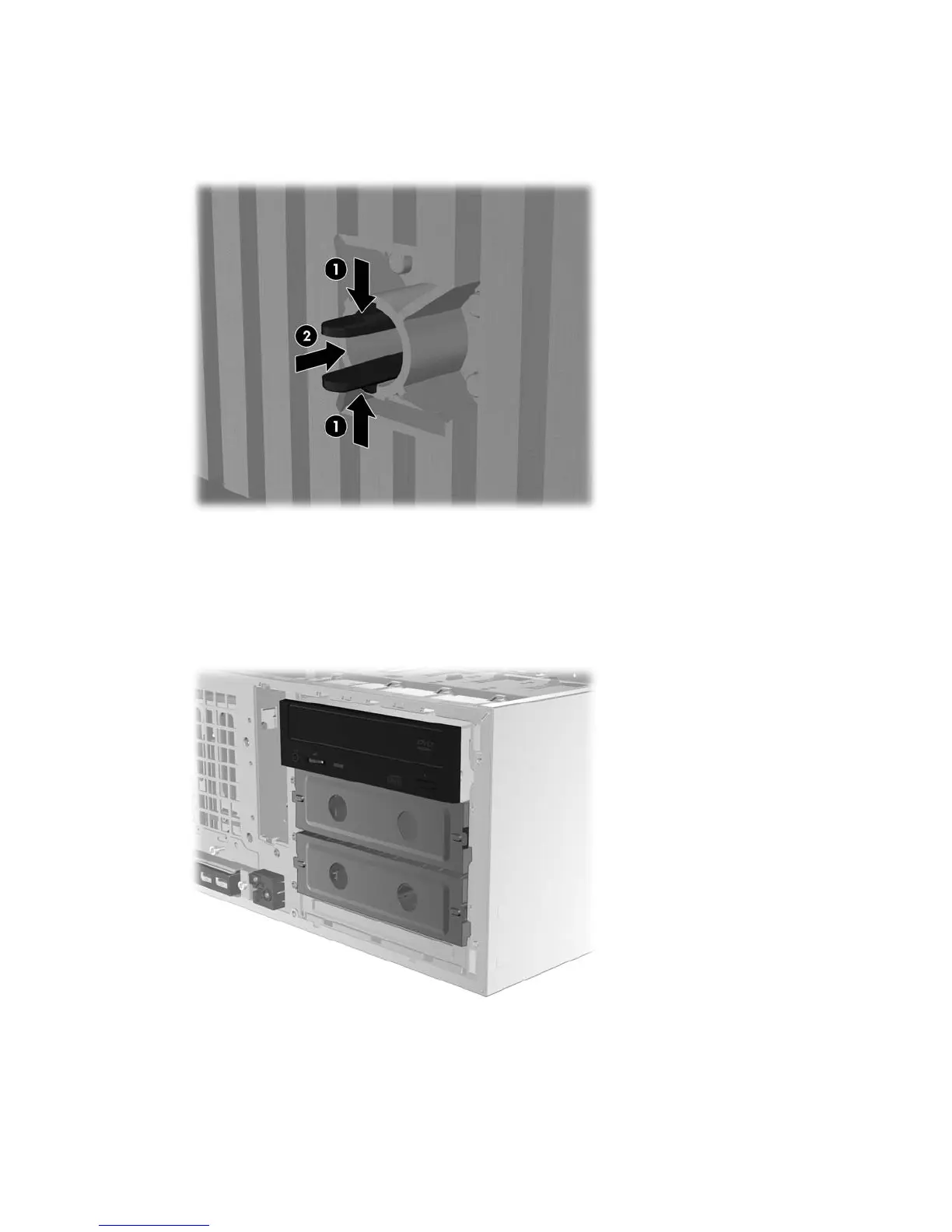

Figure 3-8 Rotating the HP logo
Rotate the HP logo 90 degrees counterclockwise, then release the logo and press it back into
place.
7. Remove the EMI filler panels and optical disk drive from the chassis.
8. Rotate the EMI filler panels and optical drive 90 degrees, then reinstall them.
Figure 3-9 Reinstalling the optical drive
9. Replace the front bezel and the side access panel.
30 Chapter 3 Setting up the workstation

HP Z220 CMT Series Specifications

General

Chipset	Intel C216
Network	Integrated Intel 82579LM Gigabit Ethernet
Form Factor	Convertible Minitower (CMT)
Processor Options	Intel Core i3, Intel Core i5, Intel Core i7
Memory	Up to 32 GB DDR3
Storage Options	3.5" Hard Disk Drives
Graphics	Integrated Intel HD Graphics, NVIDIA Quadro, AMD FirePro
Expansion Slots	1 x PCIe x16, 1 x PCI
Ports	2 USB 3.0
Operating System	Windows 8 Pro, Windows 7 Professional
Power Supply	400W (90% efficiency)
Dimensions	17.5 inches
