33

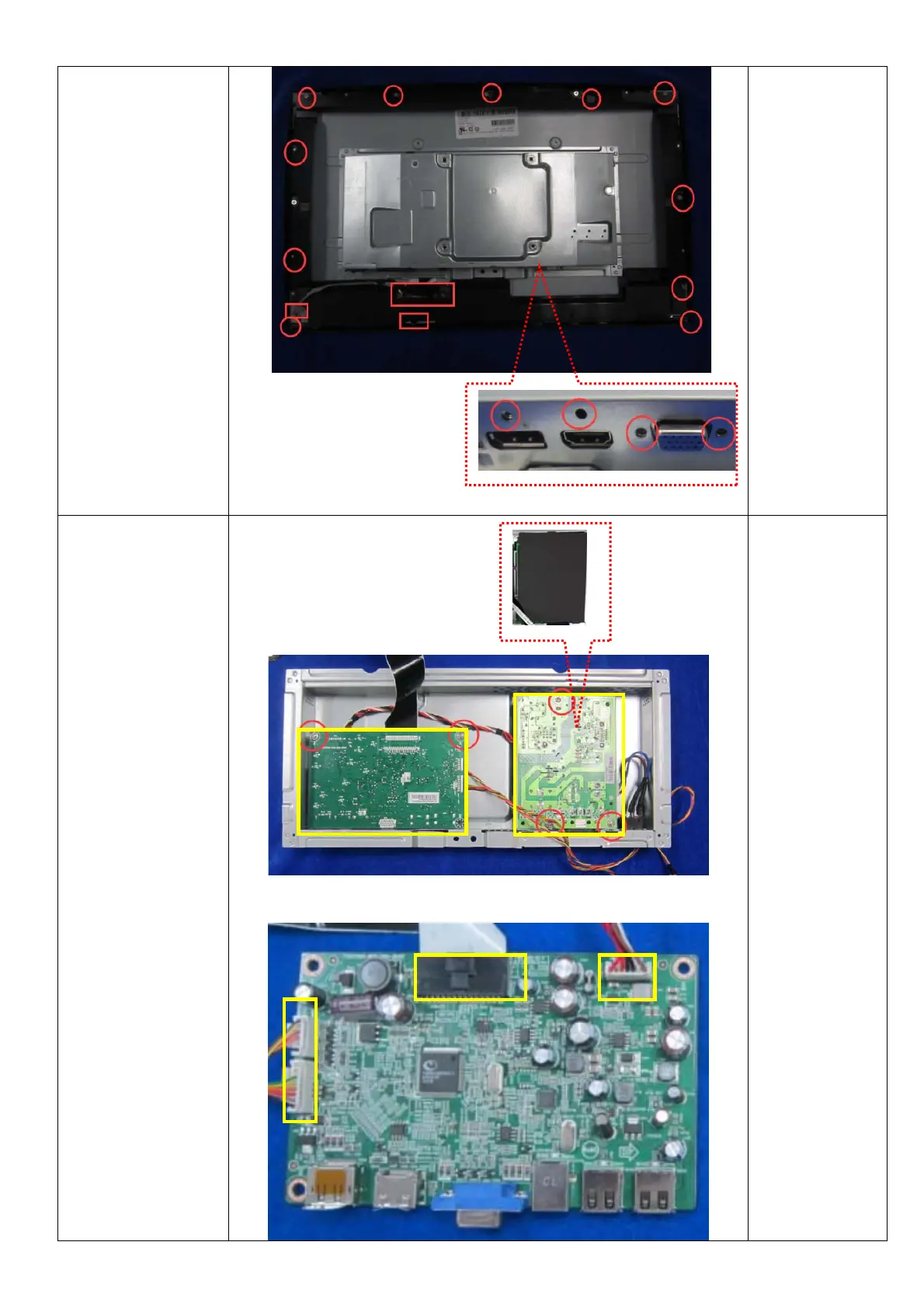

Separate the
MAINFRAME
and PANEL
Tear out all
tapes.
Remove the
screws and
disconnect the
connectors
to separate the
MAINFRAME
and PANEL.
Remove the
MAIN BOARD
and POWER
BOARD
Remove the
MAYLR &
screws and
disconnect the
connectors to
remove the
MAIN BOARD
Power board and
USB board

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HP Z22n and is the answer not in the manual?

HP Z22n Specifications

General IconGeneral
Screen Size21.5 inches
Resolution1920 x 1080
Panel TypeIPS
Aspect Ratio16:9
Brightness250 cd/m²
Contrast Ratio1000:1
Response Time7 ms
VESA Mount100 x 100 mm
Pixel Pitch0.248 mm
Native Resolution1920 x 1080
Viewing Angles178° horizontal / 178° vertical
PortsVGA, DisplayPort
