HP Z24i User Manual

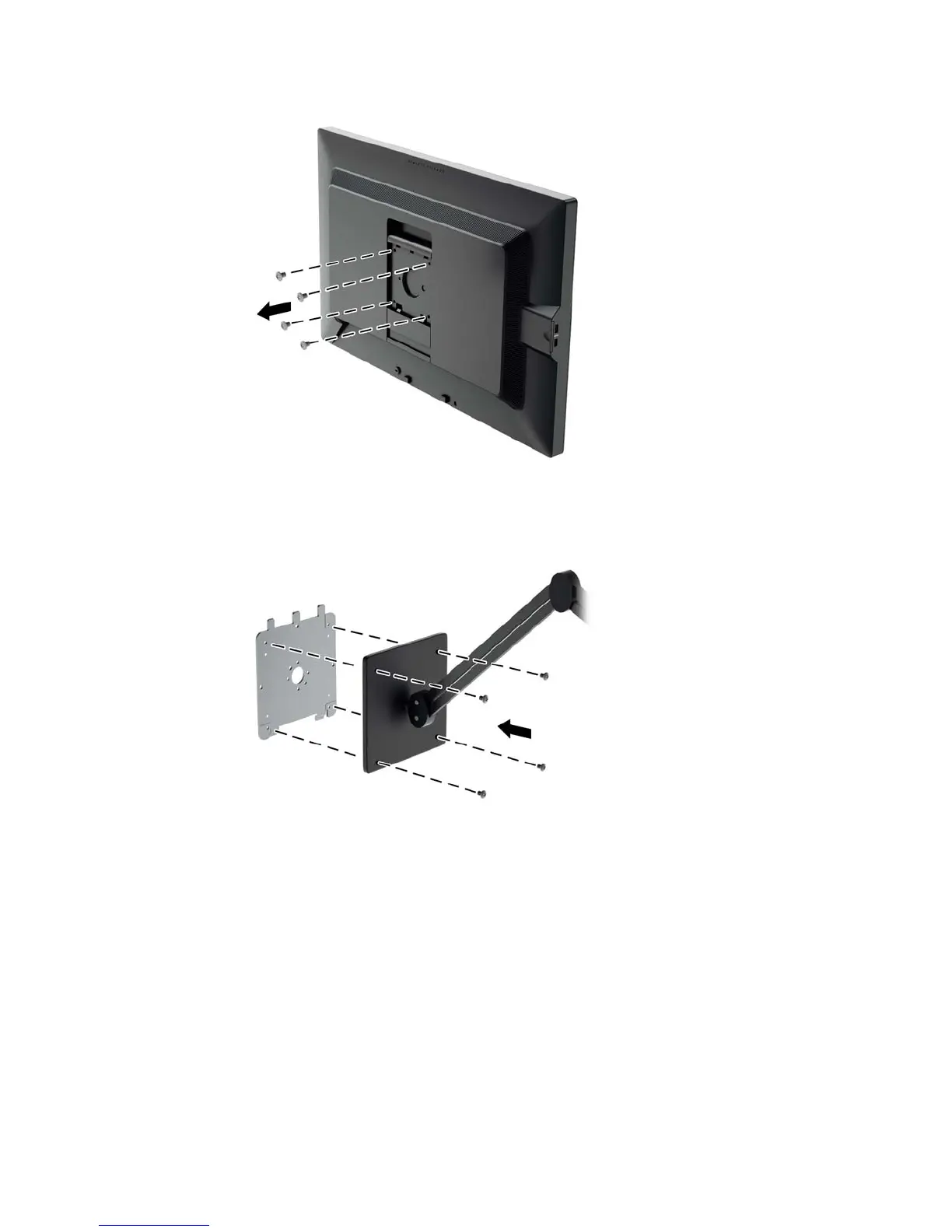

3. Remove the four screws from the VESA holes located on the rear of the monitor panel.
4. Install the mounting plate to the wall or swing arm of your choice using the four screws that were
removed from the VESA holes on the rear of the monitor panel.
18 Chapter 2 Setting Up and Using the Monitor

HP Z24i Specifications

General

Screen Size	24 inches
Resolution	1920 x 1200
Panel Type	IPS
Aspect Ratio	16:10
Brightness	300 cd/m²
Contrast Ratio	1000:1
Viewing Angle	178° horizontal / 178° vertical
Color Support	16.7 million colors
Response Time	8 ms gray to gray
Ports	DVI-D, DisplayPort, VGA
USB Ports	4 x USB 2.0
VESA Mount	Yes (100 x 100 mm)
