HP Z24i User Manual

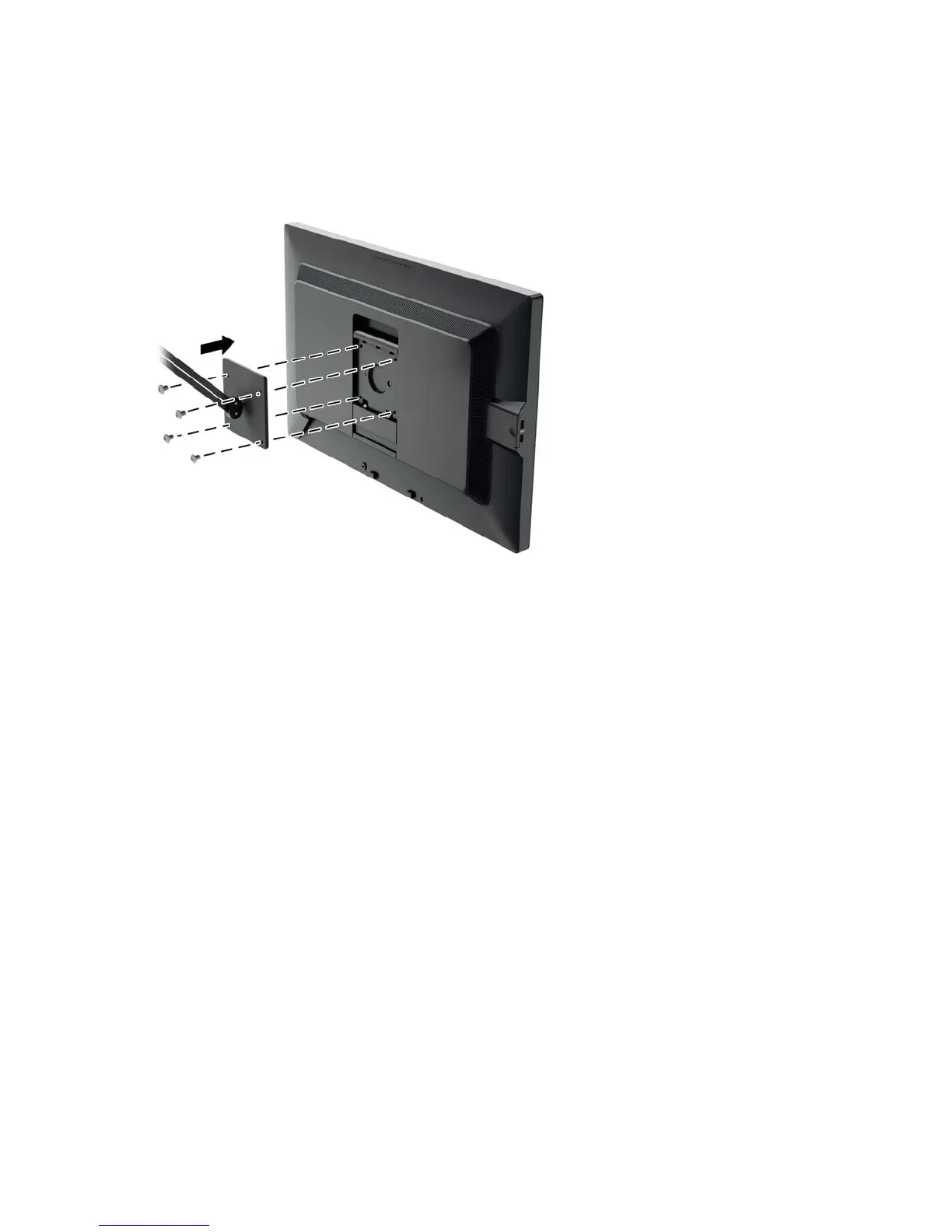

Mounting the Monitor Without Using the Quick Release 2 Mounting
Bracket
To mount the monitor panel directly to a mounting fixture without using the HP Quick Release 2
mounting bracket, use the four screws removed from the VESA holes on rear of the monitor panel
and install them to attach the mounting device to the rear of the monitor panel.
20 Chapter 2 Setting Up and Using the Monitor

HP Z24i Specifications

General

Screen Size	24 inches
Resolution	1920 x 1200
Panel Type	IPS
Aspect Ratio	16:10
Brightness	300 cd/m²
Contrast Ratio	1000:1
Viewing Angle	178° horizontal / 178° vertical
Color Support	16.7 million colors
Response Time	8 ms gray to gray
Ports	DVI-D, DisplayPort, VGA
USB Ports	4 x USB 2.0
VESA Mount	Yes (100 x 100 mm)
