13

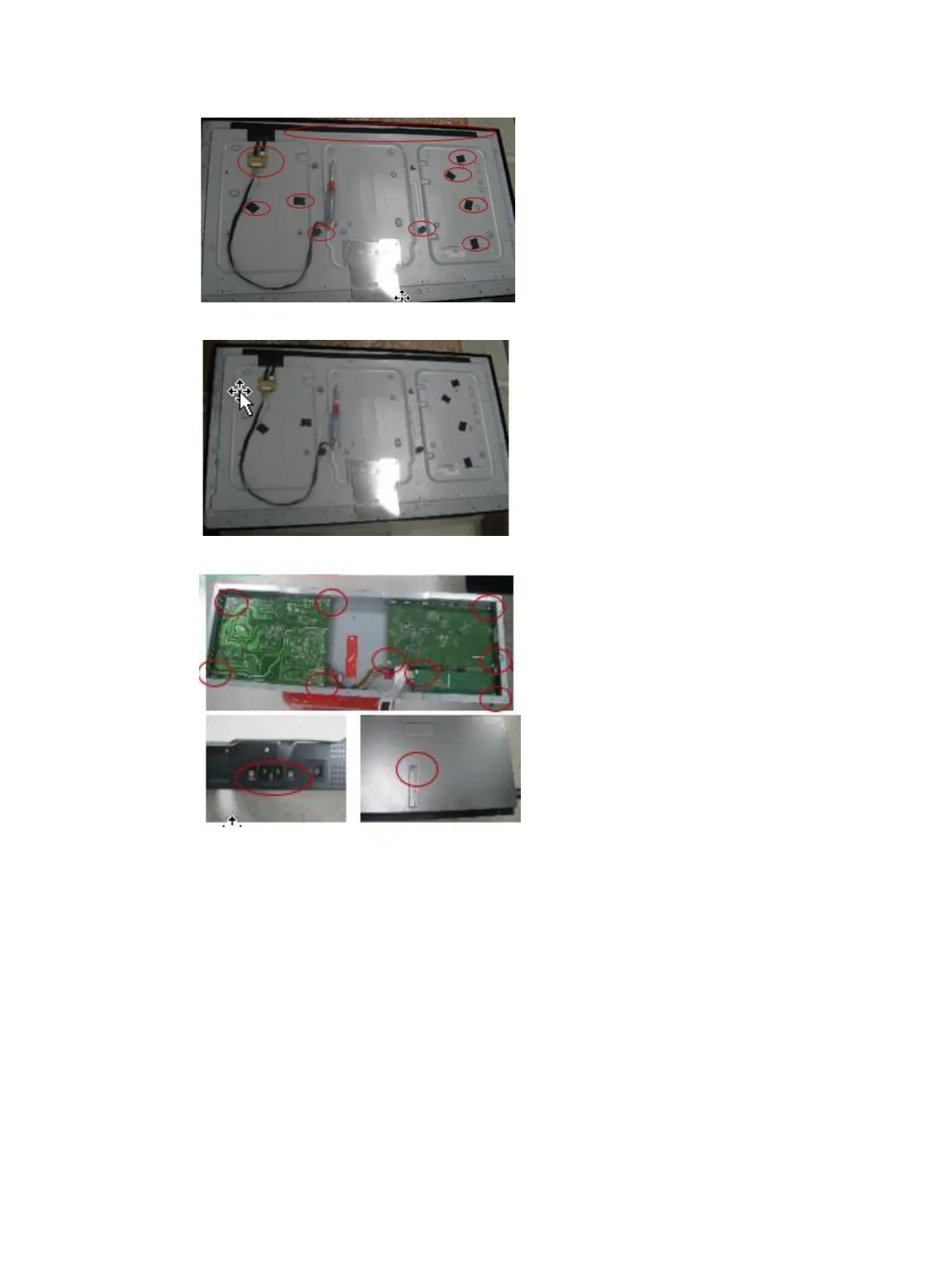

7) Remove tape rubber and LED Driver BD
8) Remove Front cover Assy from display head
9) Remove PCB from Bracket ASSY (remove screws)
Power board
The power board part number is 755.A2403.A001.
Before removing the power board, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 10.
Remove the power board:
1) The HP Z43 power board no connector:
To Next Page
