15
Connector repair
This procedure includes HDMI, Display Port, Mini Display Port, USB-C, USB-A and Phone Jack connectors.

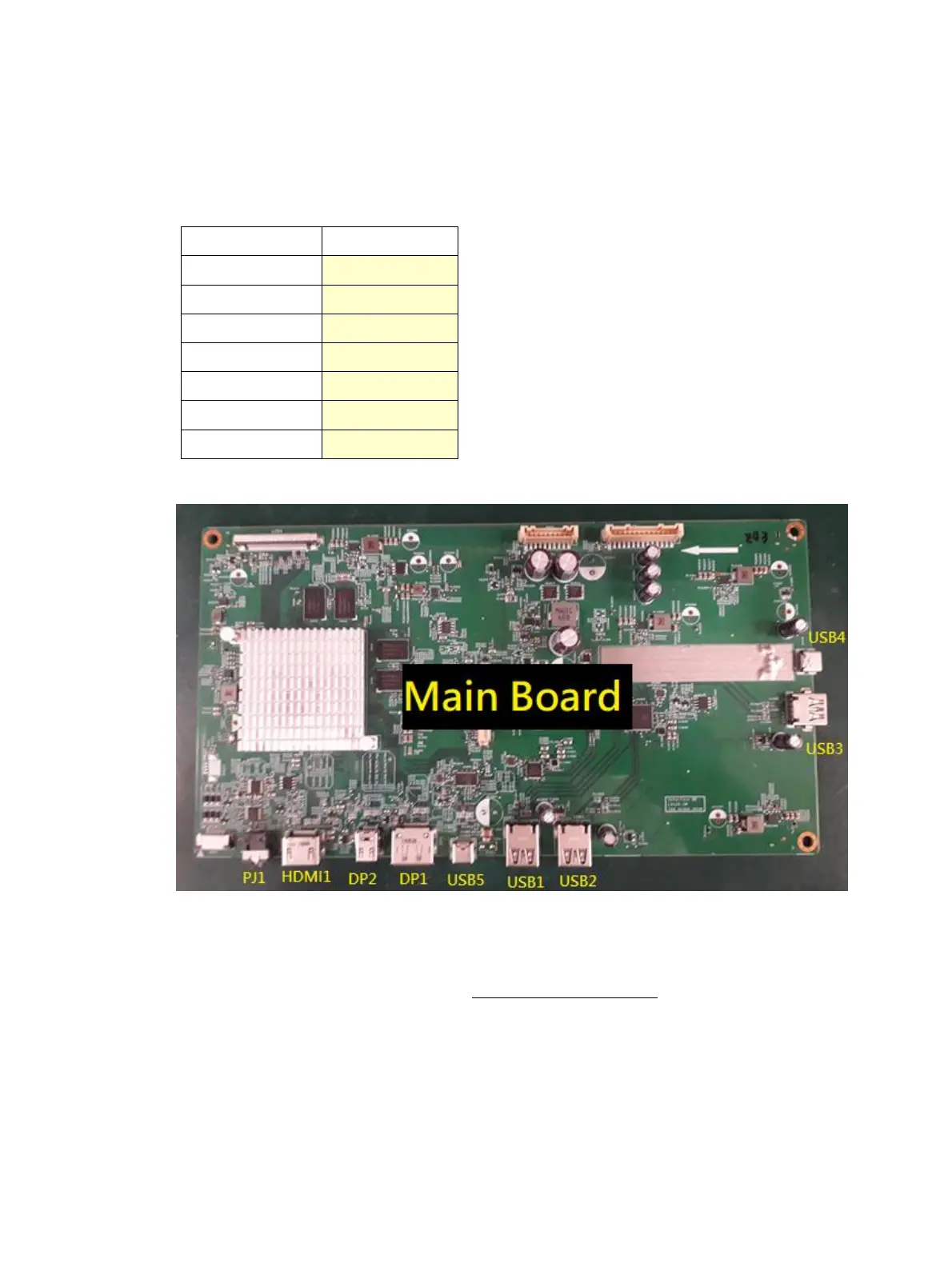

The connectors are on the main board (board part number 7ZB.A2401.A008).
The connector identifiers are as follows:
Before repairing connectors, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 10.
Phone Jack PJ1
Repair the phone jack:
1) Use a hot air gun to melt the solder on the pins. Pin solder with soldering iron and absorber. You can gently
push down with the soldering iron once everything is molten to move phone jack out of the through holes.
