Technical white paper | HP Z640 Workstation

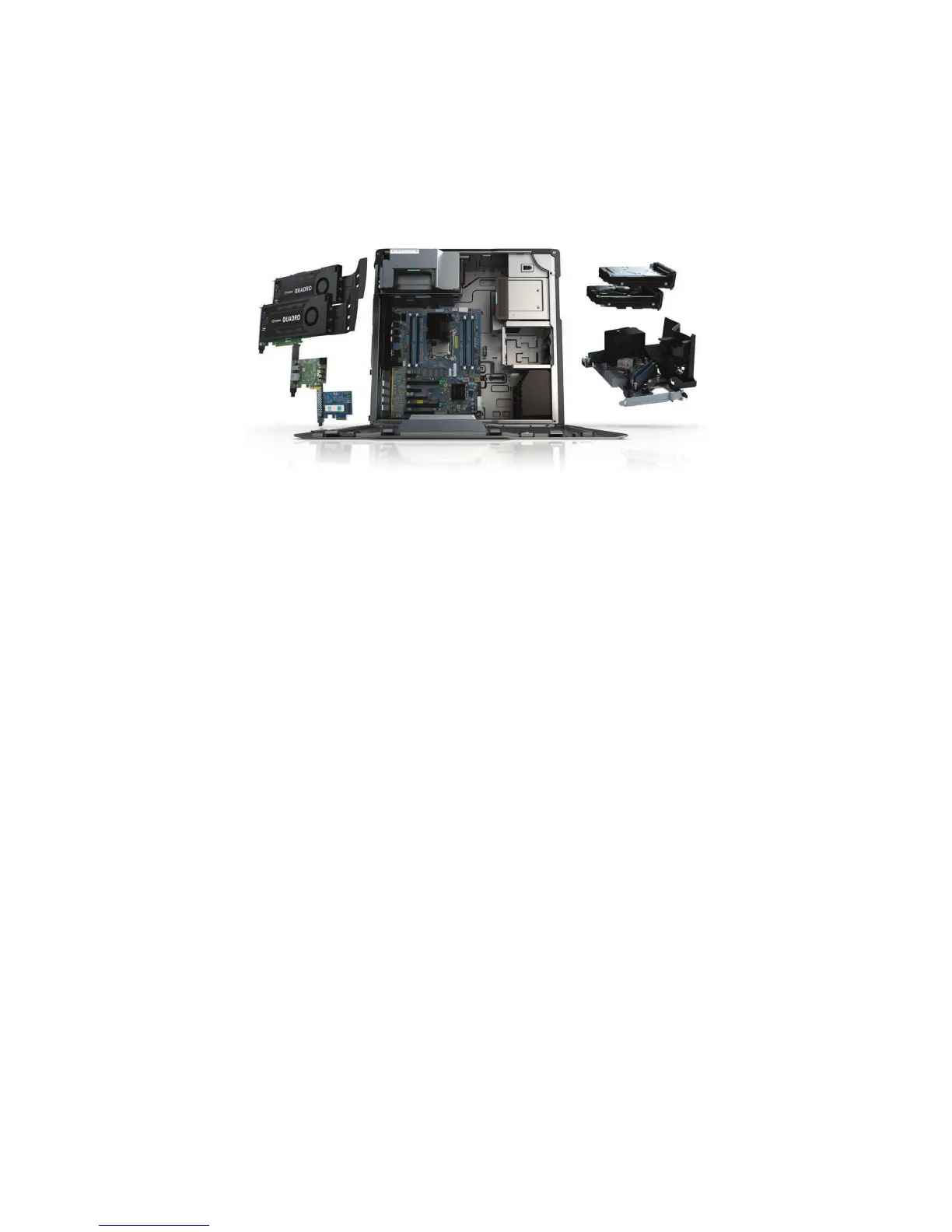

Tool-free design
HP has always been a leader in tool-free product design and with the HP Z640, the serviceability could not be any easier!
The following components can be easily accessed or upgraded without tools: side access panel, hard drives, optical
drives, memory, expansion cards, power supply, system board, and the 2nd processor module. The hard drives are also
direct-connect and can be swapped in and out without dealing with cables. Users will nd the translucent hard drive
carriers very helpful when determining which bays are populated with a drive.
Security
Due to the tool-free ease of use, HP understands system and component security may be a concern; therefore, several
security features have been incorporated. The side access panel key lock and a security slot are included standard. A
system intrusion sensor and a remote/centrally controlled solenoid lock are optional accessories.
Quiet and reliable
Acoustic noise is very important to HP and our customers because a noisy environment can increase user fatigue
and reduces productivity. HP continues its leadership in this area with the design of the Z640. With its extra power
and capability, one might expect the HP Z640 to be louder than the already very quiet HP Z620. However, with some
innovative engineering using very ecient heatsink design, strategically placed fans, and active fan control, the HP Z640
is even quieter. As with all our workstations, the hard drives are mechanically isolated to reduce vibration and noise.
The system is arranged so that sensitive components receive fresh cool air. With internal fans distributed throughout
the system, airow is targeted at the high power-density components. HP’s advanced algorithms control fan speeds
in real time based on system conguration, environment, and key component temperatures to provide users with an
exceptionally quiet system and uncompromising reliability and performance.
While low acoustics and thermal reliability are priorities, it is also important that the system can withstand dicult
physical conditions. The HP Z640 is built to withstand high shock and vibration environments. Rigorous climatic and
dynamic testing helps to ensure that HP Workstations are highly reliable in demanding conditions.
Designed with the environment in mind
HP is committed to environmental sustainability and energy eciency. To reduce energy consumption, HP Workstations
oer ENERGY STAR® qualied congurations and the HP Z640 features a 90% ecient power supply. The HP Workstation
design team has taken a proactive approach (beyond industry regulations) to recyclability and selecting materials that
reduce the risk to the environment. HP Z640 congurations are available with low-halogen materials.
1

HP Z640 Specifications

General

Tcase	72.1 °C
Bus type	QPI
Stepping	R2
Processor cache	20 MB
Processor cores	8
Processor model	E5-2630V3
System bus rate	8 GT/s
Processor series	Intel Xeon E5-2600 v3
Processor socket	LGA 2011-v3
Processor threads	16
Processor codename	Haswell
Number of QPI links	2
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3.2 GHz
Processor operating modes	64-bit
Thermal Design Power (TDP)	85 W
Number of processors installed	1
Maximum number of PCI Express lanes	40
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600, 1866 MHz
Memory bandwidth supported by processor (max)	59 GB/s
Maximum internal memory supported by processor	768 GB
Memory slots	4x DIMM
Internal memory	16 GB
Memory clock speed	2133 MHz
Maximum internal memory	- GB
Memory layout (slots x size)	2 x 8 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	PCI Express
Storage media	SSD
Optical drive type	DVD±RW
Card reader integrated	No
Total storage capacity	256 GB
Discrete graphics card	Yes
On-board graphics card	-
Discrete graphics card model	NVIDIA® Quadro® K4200
Discrete graphics card memory	4 GB
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
Chassis type	Tower
Product color	Black
Country of origin	China
Placement supported	Vertical
Product type	Workstation
Motherboard chipset	Intel® C612
Power supply	925 W
HP segment	Business
Operating system installed	Windows 7 Professional
Optional operating system supplied	Windows 8.1 Pro
Scalability	2S
Processor code	SR206
Processor ARK ID	83356
Processor package size	52.5 x 45 mm
Supported instruction sets	AVX
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00

Weight and Dimensions

Depth	464.8 mm
Width	175 mm
Height	444.5 mm
Weight	1500 g
