Technical white paper | HP Z640 Workstation
I/O slot optimizations
The HP Z640 Workstation utilizes PCI-Express 3.0 technology. This section
provides guidance on optimizing the performance of your system when using
PCI-Express and PCI cards in the I/O slots.
Integrated PCI and PCI-Express 3.0
The HP Z640 provides one 32-bit/33 MHz PCI slot that can accommodate a full height, full length PCI card. The HP
Z640 uses the Intel® Xeon® processor E5-2600 v3 series, with integrated PCI-Express 3.0 controllers delivering a peak
bandwidth of 16 Gb/s per direction. PCI Express 3.0 is backward compatible with 1.0 and 2.0, and slots will train to the
highest common speed. PCI Express 3.0 slots will initialize at 1.0 and then transition to 3.0 through a training sequence
that involves four adaptive training phases. It is recommended to carefully evaluate and validate PCI-Express 3.0 devices
that are not available or supported from HP.
See Figure 1 in previous section for the HP Z640 Workstation Block Diagram
PCI-Express Performance
The HP Z640 integrates PCIe 3.0 controllers within the processor, DMA caching in the CPU, an integrated 4-channel
memory controller, PCIe 3.0 speeds, and a QPI bus speed up to 9.6 GT/s. This produces excellent performance in I/O
bandwidth, remote bandwidth, and latency.

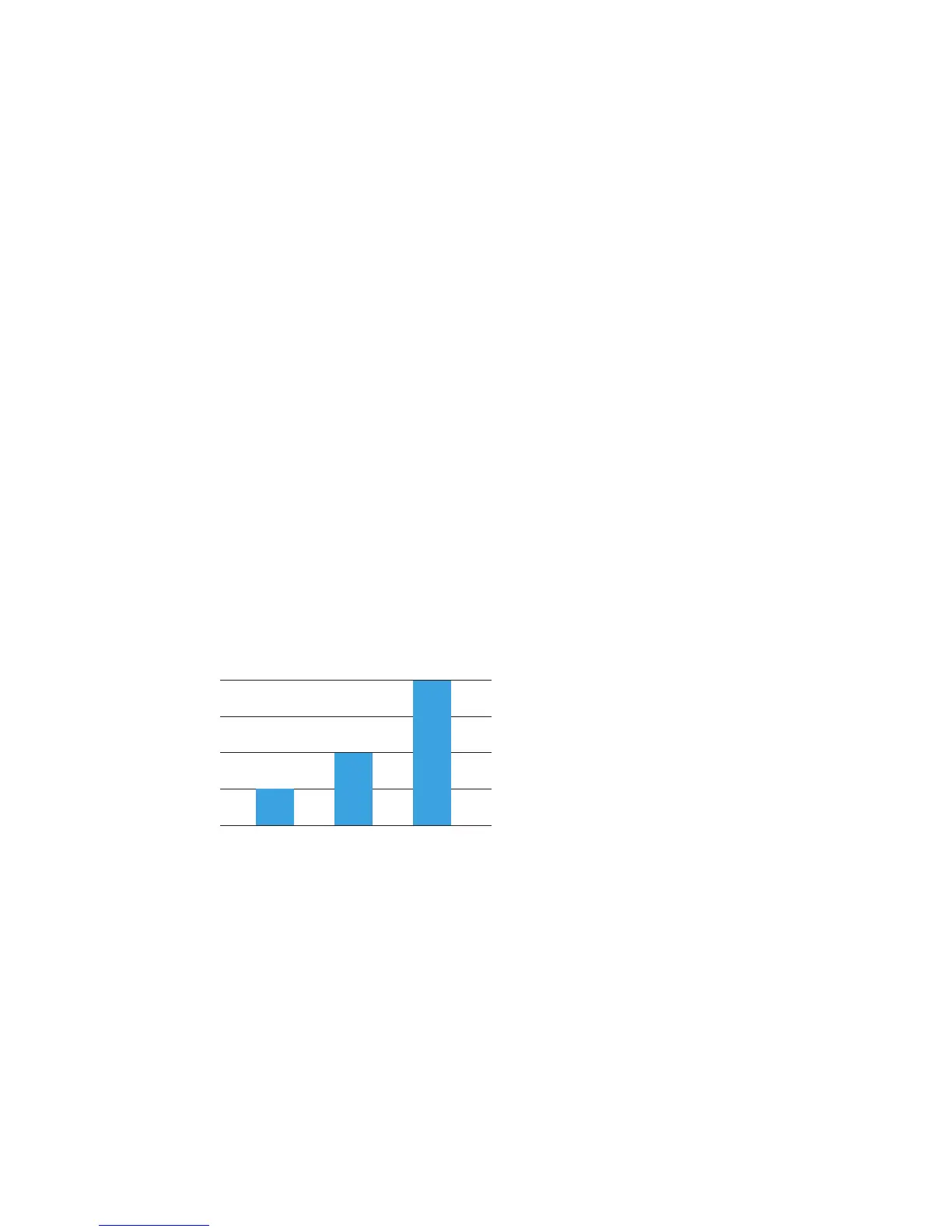

Figure 2. x16 Peak Bandwidth per Direction—Gb/s
16
12
8
4
0
Gen 1.0 Gen 2.0 Gen 3.0

HP Z640 Specifications

General

Tcase	72.1 °C
Bus type	QPI
Stepping	R2
Processor cache	20 MB
Processor cores	8
Processor model	E5-2630V3
System bus rate	8 GT/s
Processor series	Intel Xeon E5-2600 v3
Processor socket	LGA 2011-v3
Processor threads	16
Processor codename	Haswell
Number of QPI links	2
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3.2 GHz
Processor operating modes	64-bit
Thermal Design Power (TDP)	85 W
Number of processors installed	1
Maximum number of PCI Express lanes	40
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600, 1866 MHz
Memory bandwidth supported by processor (max)	59 GB/s
Maximum internal memory supported by processor	768 GB
Memory slots	4x DIMM
Internal memory	16 GB
Memory clock speed	2133 MHz
Maximum internal memory	- GB
Memory layout (slots x size)	2 x 8 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	PCI Express
Storage media	SSD
Optical drive type	DVD±RW
Card reader integrated	No
Total storage capacity	256 GB
Discrete graphics card	Yes
On-board graphics card	-
Discrete graphics card model	NVIDIA® Quadro® K4200
Discrete graphics card memory	4 GB
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
Chassis type	Tower
Product color	Black
Country of origin	China
Placement supported	Vertical
Product type	Workstation
Motherboard chipset	Intel® C612
Power supply	925 W
HP segment	Business
Operating system installed	Windows 7 Professional
Optional operating system supplied	Windows 8.1 Pro
Scalability	2S
Processor code	SR206
Processor ARK ID	83356
Processor package size	52.5 x 45 mm
Supported instruction sets	AVX
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00

Weight and Dimensions

Depth	464.8 mm
Width	175 mm
Height	444.5 mm
Weight	1500 g
