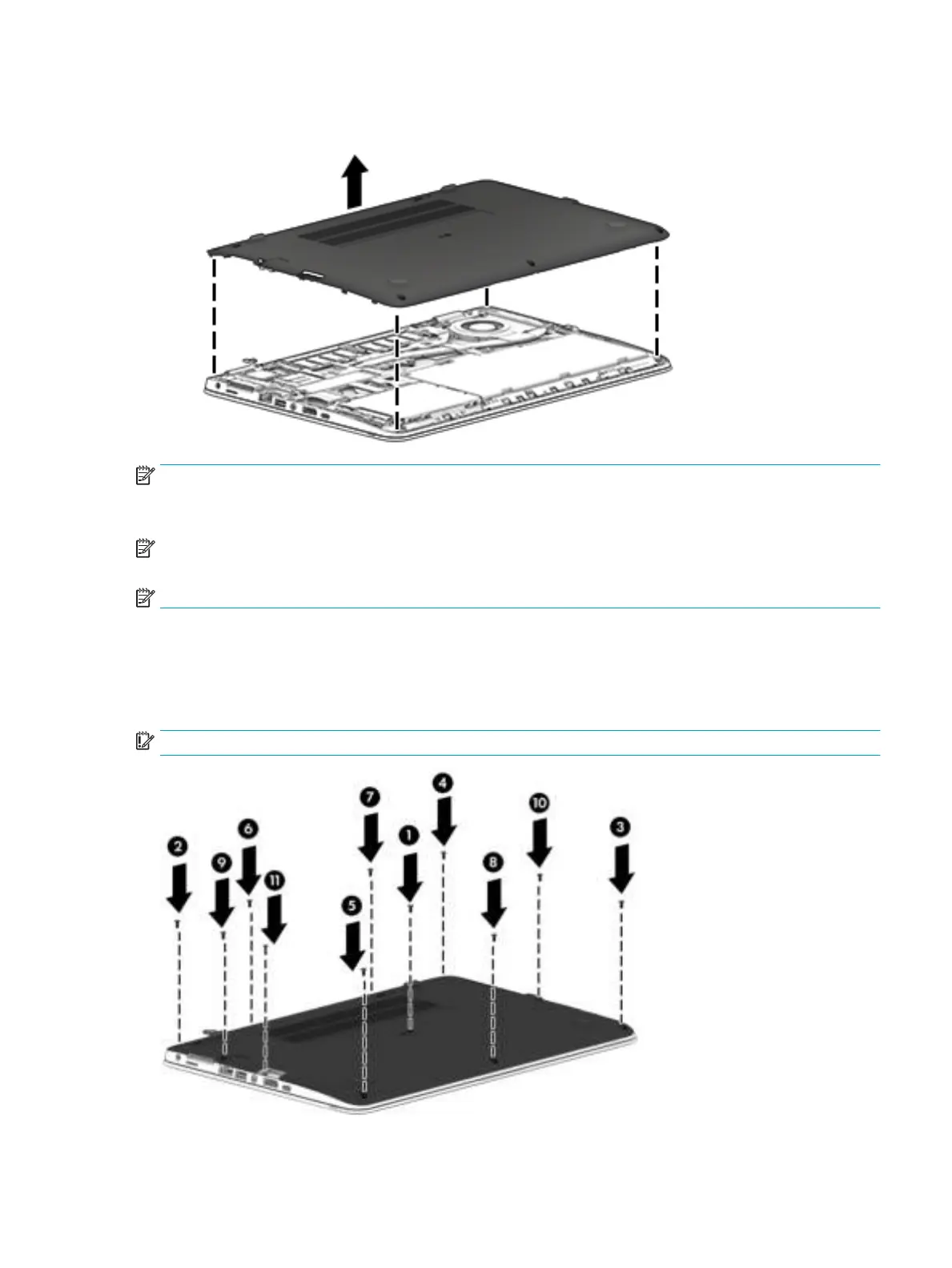

4. Lift the bottom cover o the computer by lifting the rear of the cover near the hinges and tilting the
cover up.
NOTE: The RJ-45 door can be removed from the bottom cover. To replace the door, after removing the
bottom cover, rotate the door upright to a 90 degree angle, and then pull it straight up and o the bottom
cover. To install a new door, position the door upright, and then push it down onto the metal bar.
NOTE: The RJ-45 door and the SD card reader insert is available in the Plastics Kit using spare part number
937303-001.
NOTE: Multiple RJ-45 doors are available using spare part number 937304-001. The kit contains 20 doors.
Reverse the removal procedures to install the bottom cover.
Replacing the bottom cover
When replacing the bottom cover screws, be sure to install the screws in the order indicated in the following
image.
IMPORTANT: Failure to install the screws in the correct order can result in uneven bottom cover installation.
Component replacement procedures 31
