Solid-state drive (M.2)
Description Spare part number
512-GB, M.2, PCIe 813138-001
256-GB, M.2, PCIe 795955-001
128-GB, M.2, PCIe 813137-001
Before removing the solid-state drive, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see Battery on page 37).
5. Remove the service cover (see Service cover on page 38).
Remove the solid-state drive:

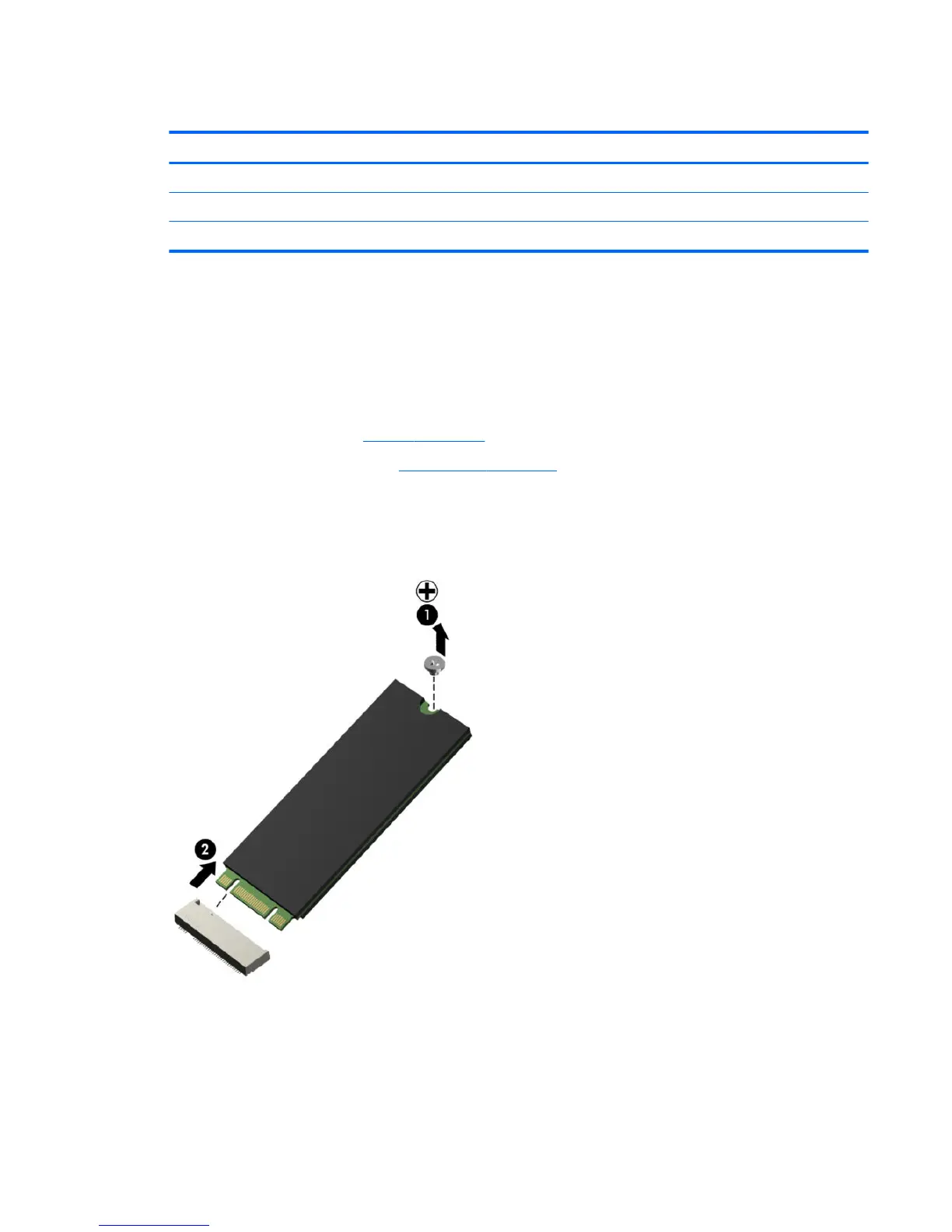

1. Remove the Phillips PM2.0×3.5 screw (1) that secures the solid-state drive to the system board.
2. Remove the solid-state drive (2) by pulling the drive away from the slot at an angle.
Reverse this procedure to install the solid-state drive.
Component replacement procedures 45
