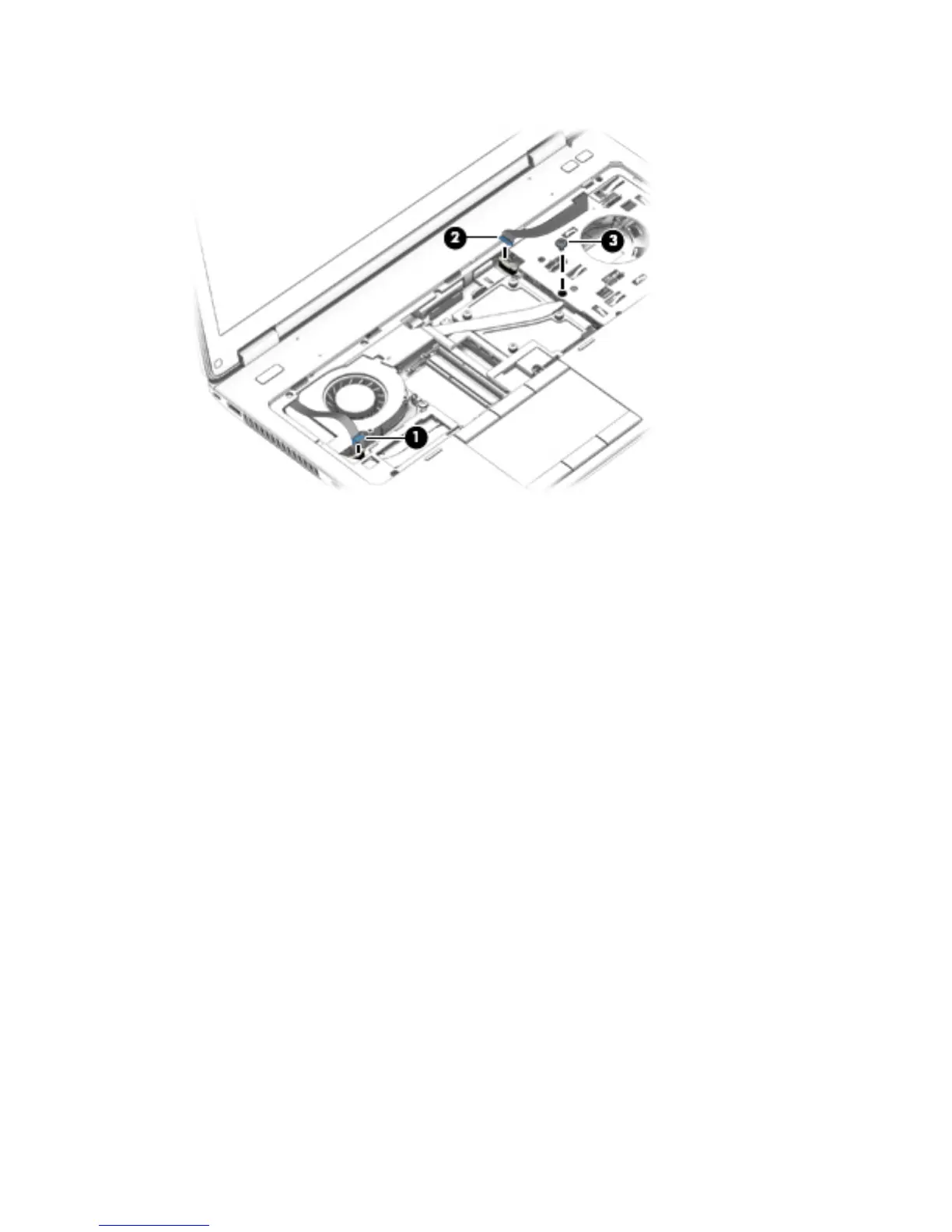

9. Remove the Torx T8M2.5×6.5 screw (3) that secures the top cover to the computer.
10. Lift the rear edge of the top cover (1) until the left and right sides and the front edge detach from the
computer.
11. Slide the top cover (2) forward until the ngerprint reader board cable and the TouchPad cable are
accessible.
12. Release the ZIF connector to which the ngerprint reader board cable is attached, and then disconnect
the ngerprint reader board cable (3) from the system board.
13. Release the ZIF connector to which the TouchPad cable is attached, and then disconnect the TouchPad
cable (4) from the system board.
60 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
