c. Optical drive (see Optical drive on page 41)
d. Keyboard (see Keyboard on page 50)
e. Top cover (see Top cover on page 58)
f. Fan/heat sink assembly (see Fan/heat sink assembly on page 74)

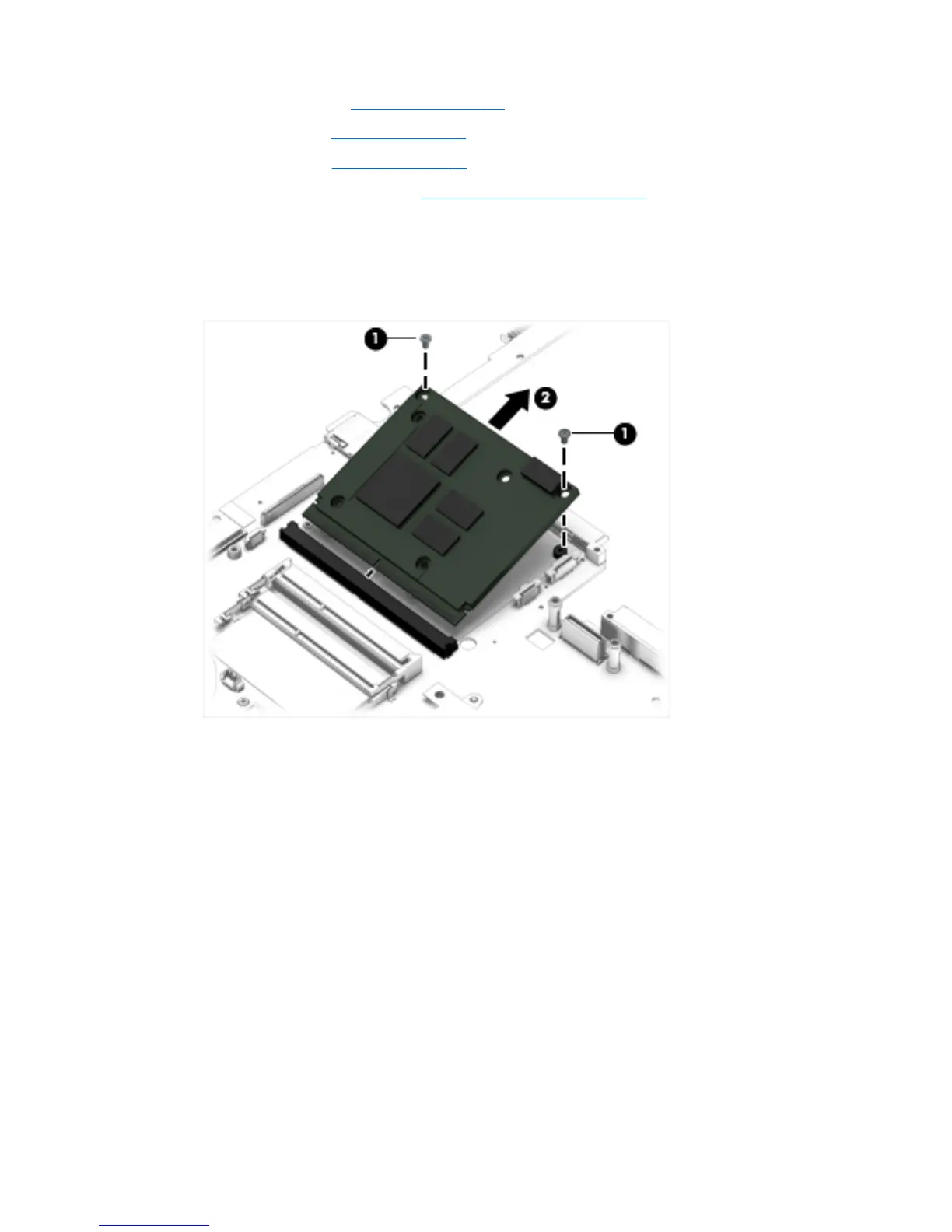

Remove the graphics board:
1. Remove the two Torx T8M2.5×4.5 screws (1) that secure the graphics board to the system board. (The
graphics board tilts up.)
2. Remove the graphics board (2) by pulling the board away from the slot at an angle.
Reverse this procedure to install the graphics board.
Component replacement procedures 79
