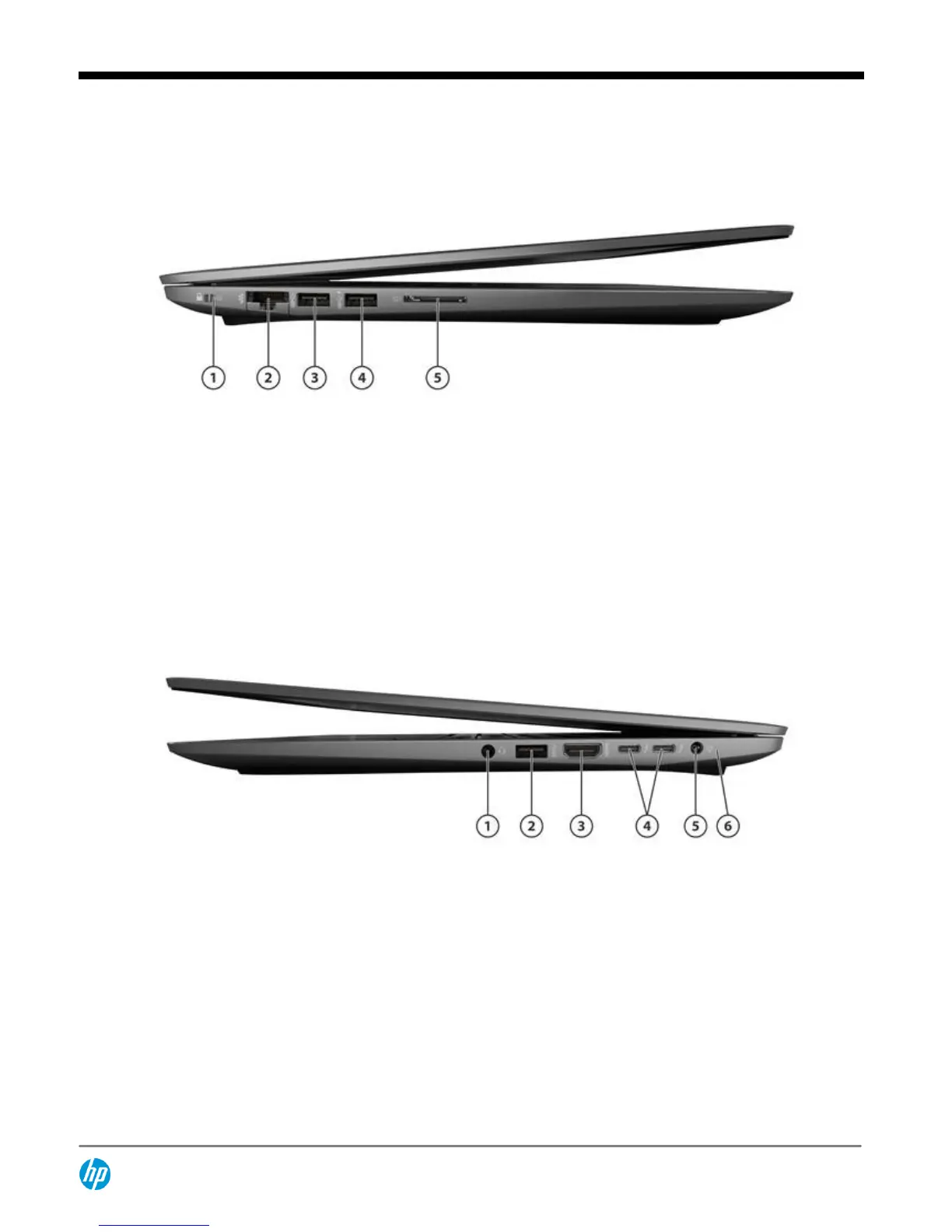

HP Zbook Studio G3 - Side Views and Port Identification

LEFT VIEW
1. Security lock slot 4. USB 3.0 port Charging
2. RJ-45 (Ethernet) 5. SD Card reader
3. USB 3.0 port
RIGHT VIEW
1. Audio in (microphone) / Audio-out (headphone) jack 4. (2) Thunderbolt 3 ports
2. USB 3.0 port 5. Power connector
3. HDMI port 6. Power LED
QuickSpecs
HP Zbook Studio G3 Mobile Workstation
Overview
DA - 15377 Worldwide QuickSpecs — Version 3 — 12.18.2015 Page 2
