HP ZBook Studio G5 User Manual

NFC module
Description Spare part number
NFC module L33682-001
NFC module cable L28668-001 (Cable Kit)
Before removing the NFC module, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see Bottom cover on page 33).
5. Remove the battery (see Battery on page 35).
Remove the NFC module:

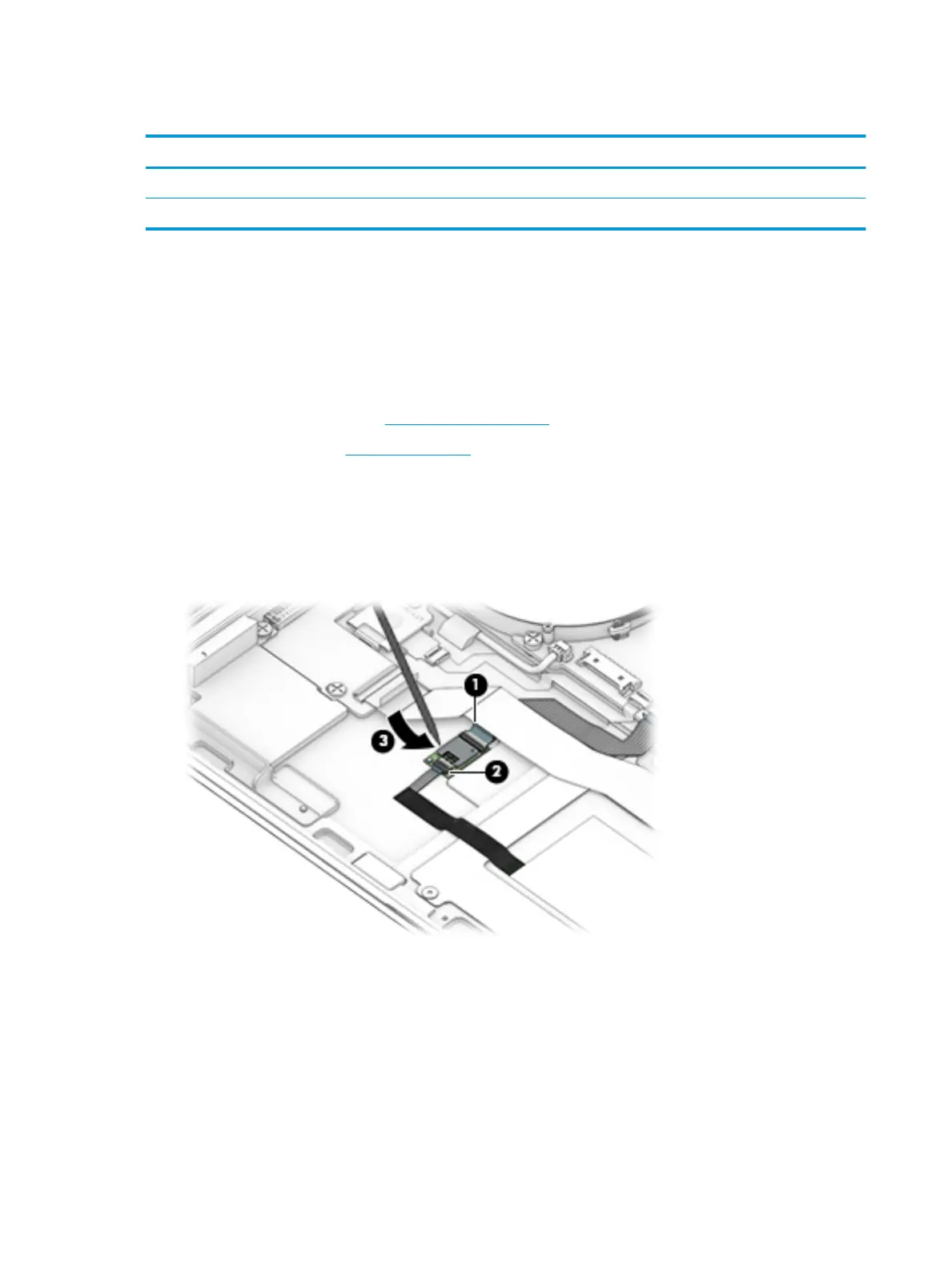

1. Disconnect the system board cable (1) and the NFC antenna cable (2) from the ZIF connectors on the NFC
module.
2. Use a plastic non-conductive tool to release the NFC module from the adhesive securing it to the
computer (3), and then remove the module from the computer.
Reverse the removal procedures to install the NFC module.
52 Chapter 5 Removal and replacement procedures for authorized service provider parts
