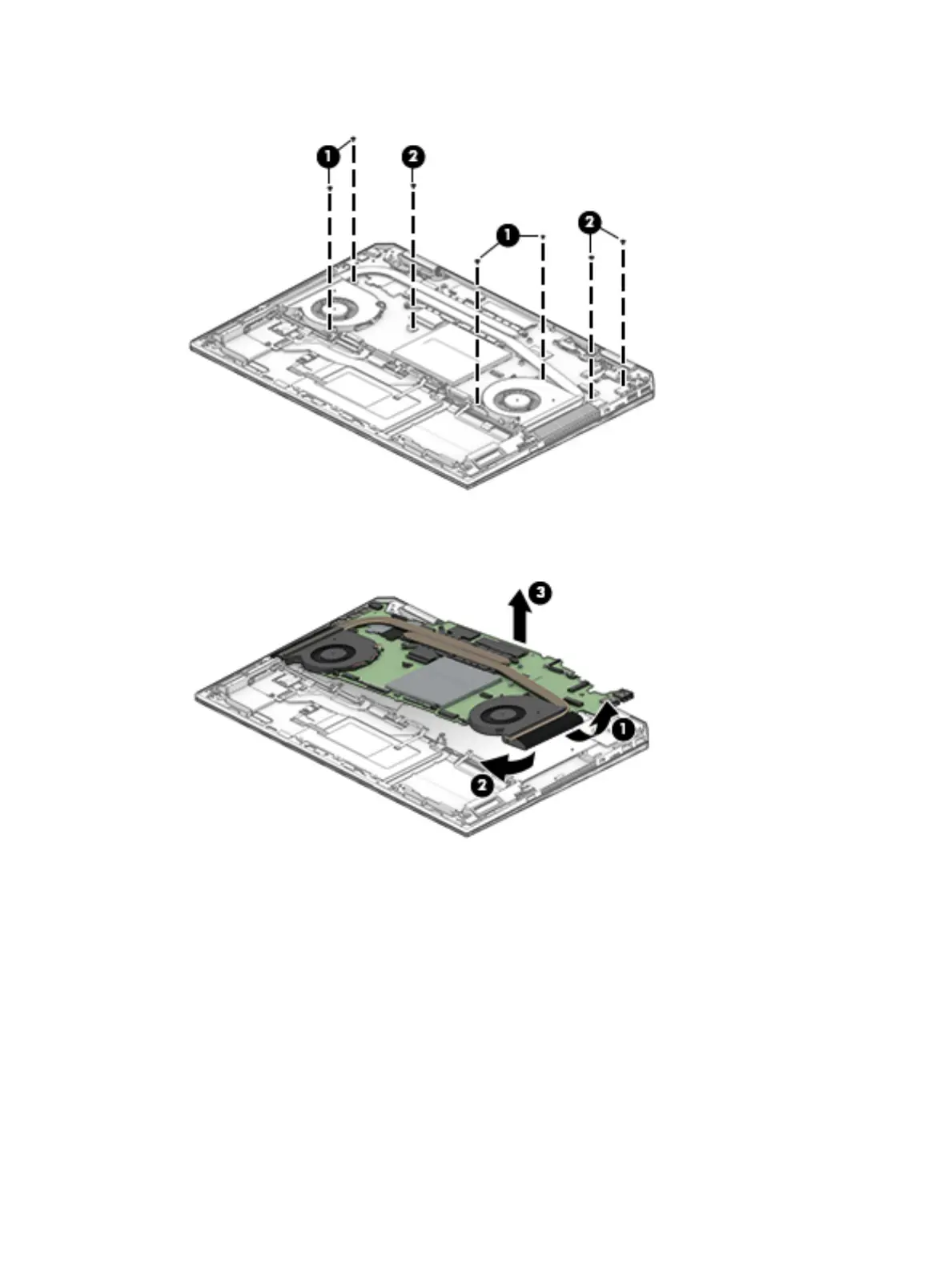

5. Remove the three Phillips M2.0×4.0 screws (2) that secure the system board.
6. Lift in the right side of the board until the connectors disengage from the left side of the computer (1).
7. Rotate the board (2), and then remove the system board from the computer (3).
Reverse this procedure to install the system board.
