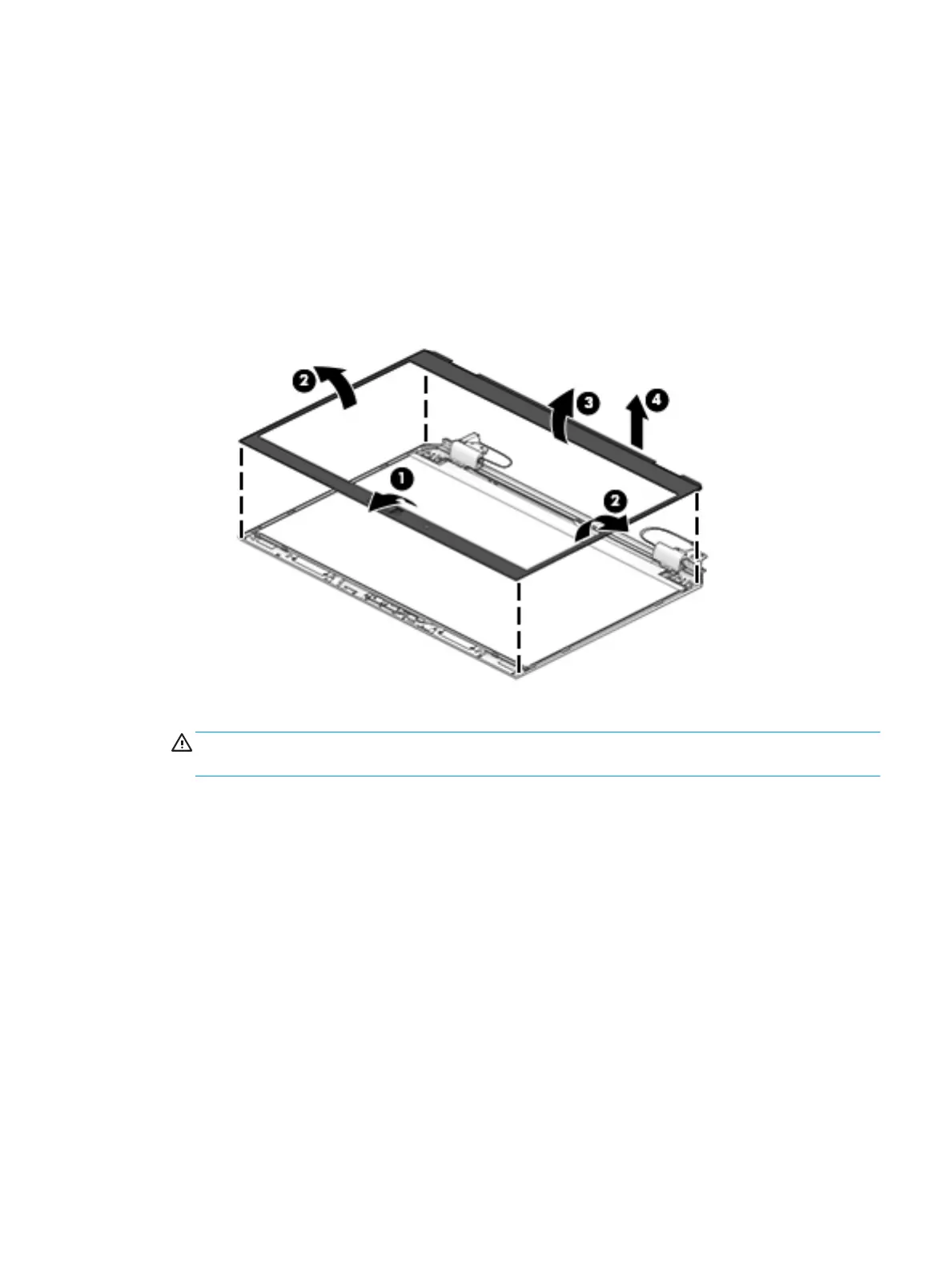

b. Remove the display bezel (4).
The display bezel is available using the following spare part numbers:
L31689-001: Models with an ambient light sensor and only an HD camera
L31690-001: Models with an ambient light sensor and an IR camera
L31691-001: Models with an ambient light sensor and without a camera
L31692-001: Models without an ambient light sensor and only an HD camera
L31693-001: Models without an ambient light sensor and an IR camera
L31694-001: Models without an ambient light sensor and without a camera
9. If it is necessary to replace the camera module:
CAUTION: Handle the module with caution, as it has a thin prole and is susceptible to damage when
not handled carefully.
a. HD camera
Detach the camera module (1) from the display enclosure. (The module is attached to the display
enclosure with double-sided adhesive.)
Component replacement procedures 69
