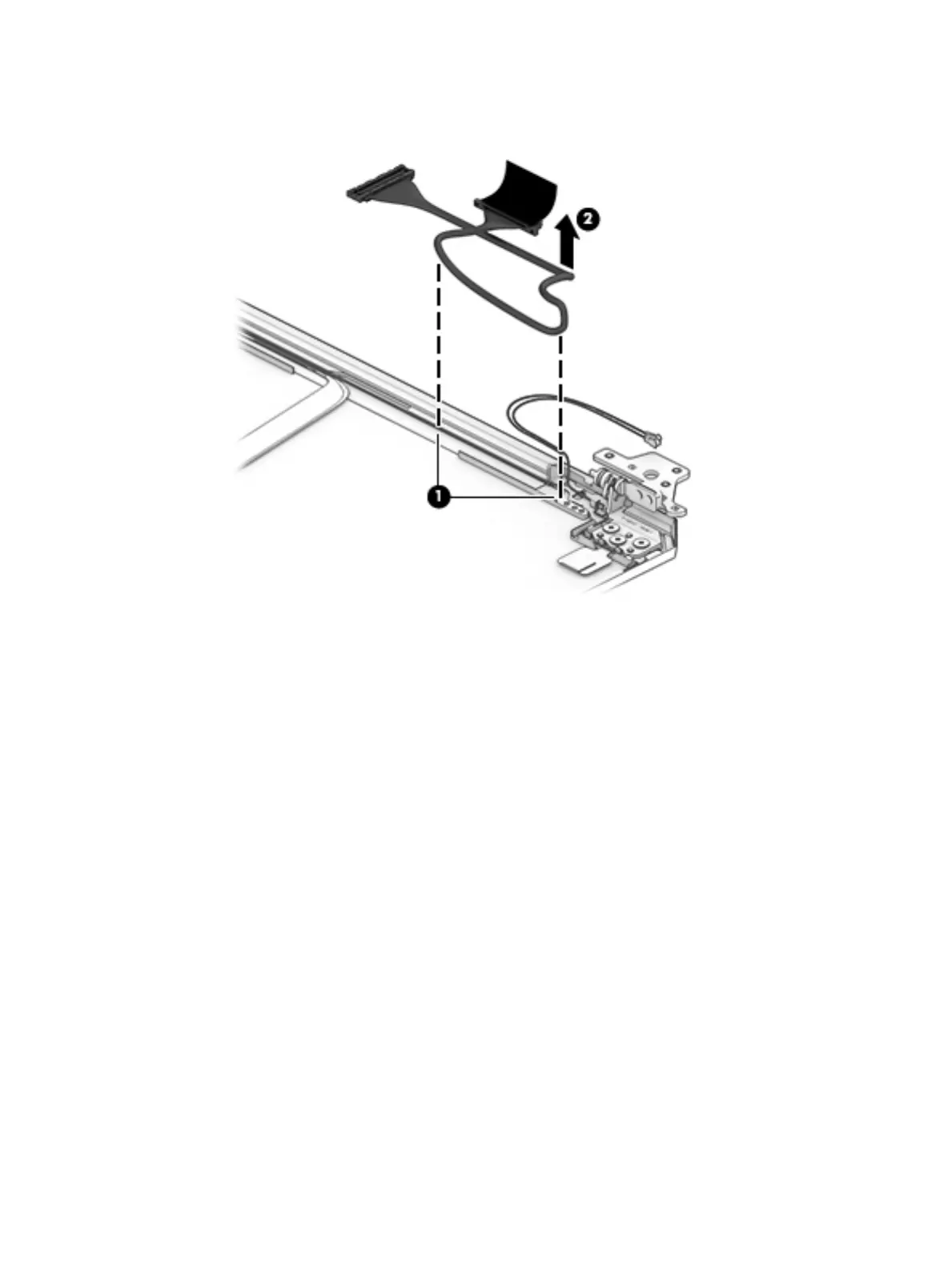

b. Remove the display cable from the display enclosure (2).

The display cable is available using spare part number L31696-001.

Reverse this procedure to reassemble and install the display assembly.

Component replacement procedures 75
