HPE BladeSystem c7000 User Manual

2
Site requirements
Select an installation site that meets the detailed installation site
requirements described in the server user guide on the
Documentation CD and on the Hewlett Packard Enterprise website
(http://www.hpe.com).

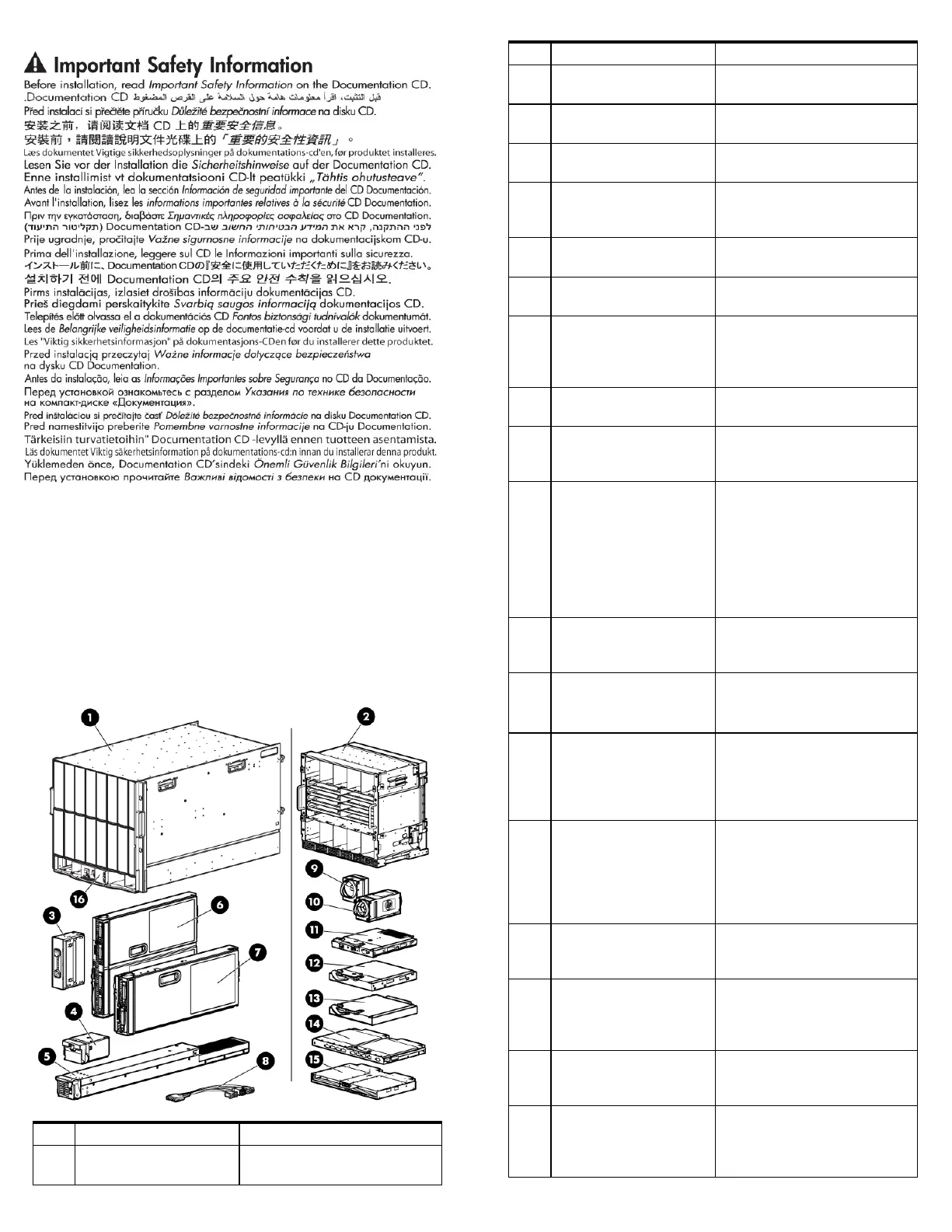

Verifying the pallet contents
Item Name Description
1 BladeSystem c7000
Enclosure
The HPE BladeSystem
enclosure
Item Name Description
2 Rear cage The rear section of the
enclosure
3 Device bay blank A mandatory insert installed in
any unused device bay
4
Power supply blank
A mandatory insert installed in
any unused power supply bay
5 Enclosure hot-plug
power supply (quantity
as ordered)
The power supply for the
enclosure
6 Full-height device
(quantity as ordered)
The full-height server or
storage blade
7 Half-height device
(quantity as ordered)
The half-height server or
storage blade
8 Local I/O cable A cable with serial, USB, and
video connectors that connects
to the I/O connector on the
front of a blade
9
Fan blank
A mandatory insert installed in
any unused fan bay
10 HPE Active Cool 200
Fan (quantity as
ordered)
A fan used to cool the
components installed in the
enclosure
11
Onboard Administrator
with KVM module
Hot-pluggable enclosure
management module. One
module is required to manage
the components installed in the
enclosure. To provide
redundant enclosure
management, you can install
an optional second module.
12
Onboard Administrator
with KVM blank
A mandatory cover installed in
any unused Onboard
Administrator bay
13 Interconnect blank A mandatory insert installed in
any unused interconnect bay
14
Interconnect module
(quantity and type as
ordered)
Any of several components,
such as pass-thrus or switches
that enable communication
between the blade and the
enclosure
15 Onboard Administrator
with KVM tray
Hot-pluggable tray that houses
up to two Onboard
Administrator modules and
provides two enclosure link
connectors, the rear enclosure
UID, LED, and switch.
16 BladeSystem Insight
Display
A display that provides
information about the health
and operation of the enclosure
17* Power retention ties
(single-phase
enclosures only)
Tie straps that help prevent
single-phase power cables
from disconnecting from the
power connectors
18* Documentation CD A CD containing detailed
documentation on using the
enclosure
19* Hard copy installation
instructions for blades,
options, and
interconnects
The printed installation
instructions

HPE BladeSystem c7000 Specifications

General

Form Factor	10U
Interconnect Bays	8
Blade Slots	16 half-height or 8 full-height
Device Bays	16 half-height blade server bays or 8 full-height blade server bays
Power Supplies	Up to 6 hot-plug power supplies
Cooling Fans	10 hot-plug fans
Management	Onboard Administrator
Height	17.5 inches
Width	17.6 inches
Compatibility	HPE ProLiant and Integrity server blades
Non-operating Temperature	-40° to 70°C (-40° to 158°F)
Operating Humidity	10% to 90% (non-condensing)
Non-operating Humidity	5% to 95% (non-condensing)
Networking	Dependent on installed interconnect modules
Operating Temperature	10° to 35°C (50° to 95°F)
