Shenzhen Hpmont Technology Co., Ltd. Chapter 3 Machenical Installation
HD09 Series User Manual V1.1 -7-
3.3 Installation of Exterior Keypad
HD09 allows installing the optional keypad on the keypad of control door cabinet. The optional
keypads are HD-LED-P and HD-LED-S.
3.3.1 Installation of HD-LED-P
HD-LED-P needs a mounting base HD-KMB for installation. Firstly install the base on the keypad of
control door cabinet, and then install HD-LED-P inside the base.

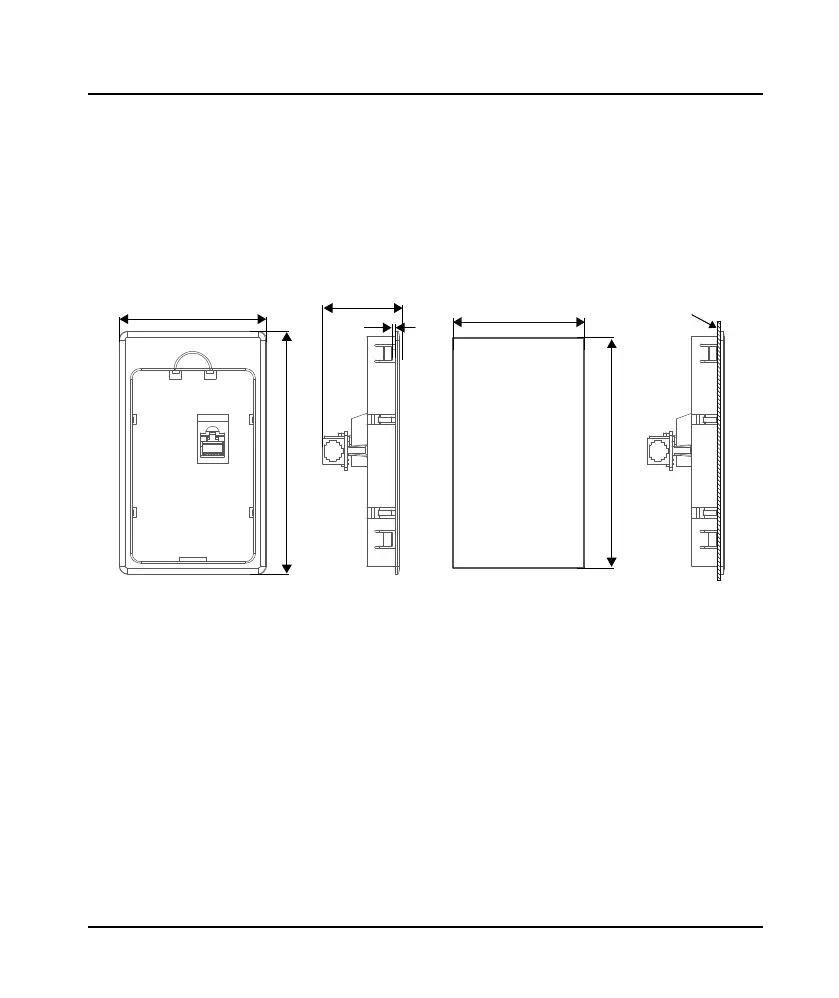

The HD-KMB base and mounting aperture sizes are shown in the following figure (unit: mm).
3.3.2 Installation of HD-LED-P-S
There are 2 installation methods selectable for HD-LED-P-S: Install with screws or a mounting base.
Packing contents: Mounting base, keypad, 2 pieces of M3x5 screws, 1 meter extension cable.
Installation
Door cabinet
76.5±0.2
134.5±0.2
142
86
44.8
1.8
Mounting aperture sizeHD-KMB size
