hpmont HD09 Series User Manual

Shenzhen Hpmont Technology Co., Ltd. Chapter 4 Electrical Installation
HD09 Series User Manual V1.1 -13-

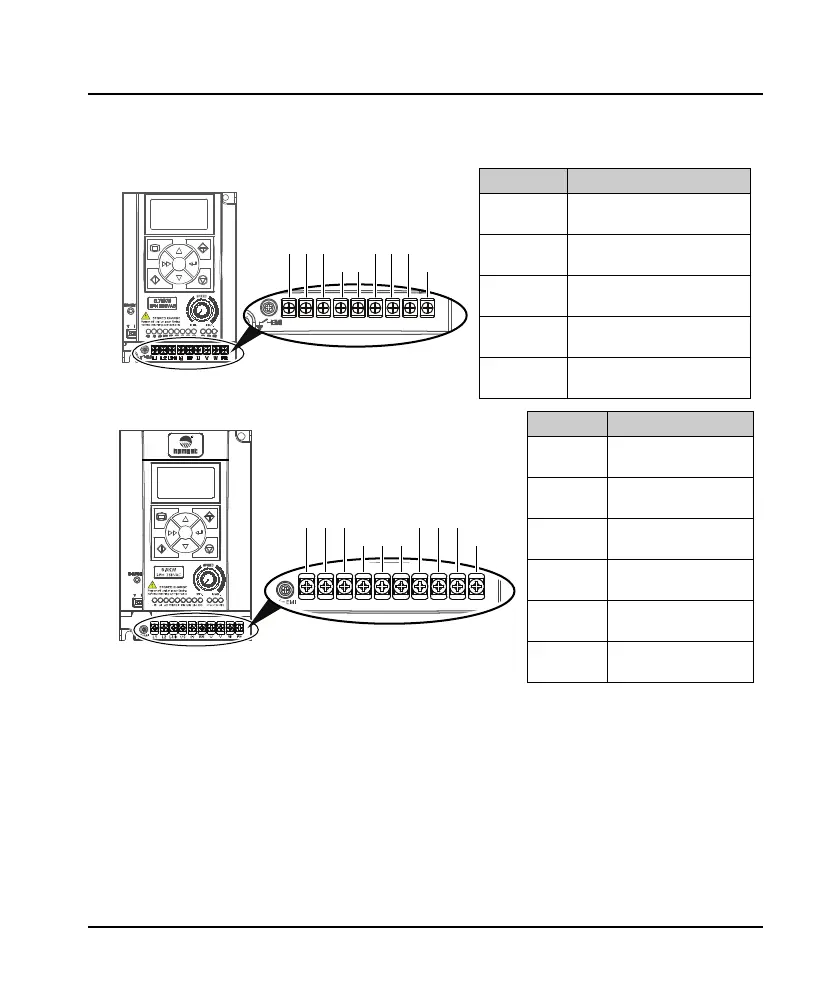

4.2 Power Terminals and Connection
Power Terminal Description
Terminal Description
L1, L2, L3/N
Three-phase AC power input
terminals
L1, L3/N
One-phase AC power input
terminals
U, V, W
Output terminals, connect to
AC motor
(+), BR
Braking resistor connection
terminals
PE
Ground terminal, connect to
the ground
123
Terminal Description
L1, L2, L3/N
Three-phase AC power
input terminals
L1, L3/N
One-phase AC power
input terminals
U, V, W
Output terminals,
connect to AC motor
(+), BR
Braking resistor
connection terminals
(+), (-)
DC supply input
terminals
PE
Ground terminal,
connect to the ground
L1
Size A:
L2
L3/N
(+)BR
U V W
PE
L1
L2
L3/N
PE
W
VU
BR
(+) (-)
Size B:
