Chapter 7 Detailed Function Introduction Shenzhen Hpmont Technology Co., Ltd.
-30- HD09 Series User Manual V1.1

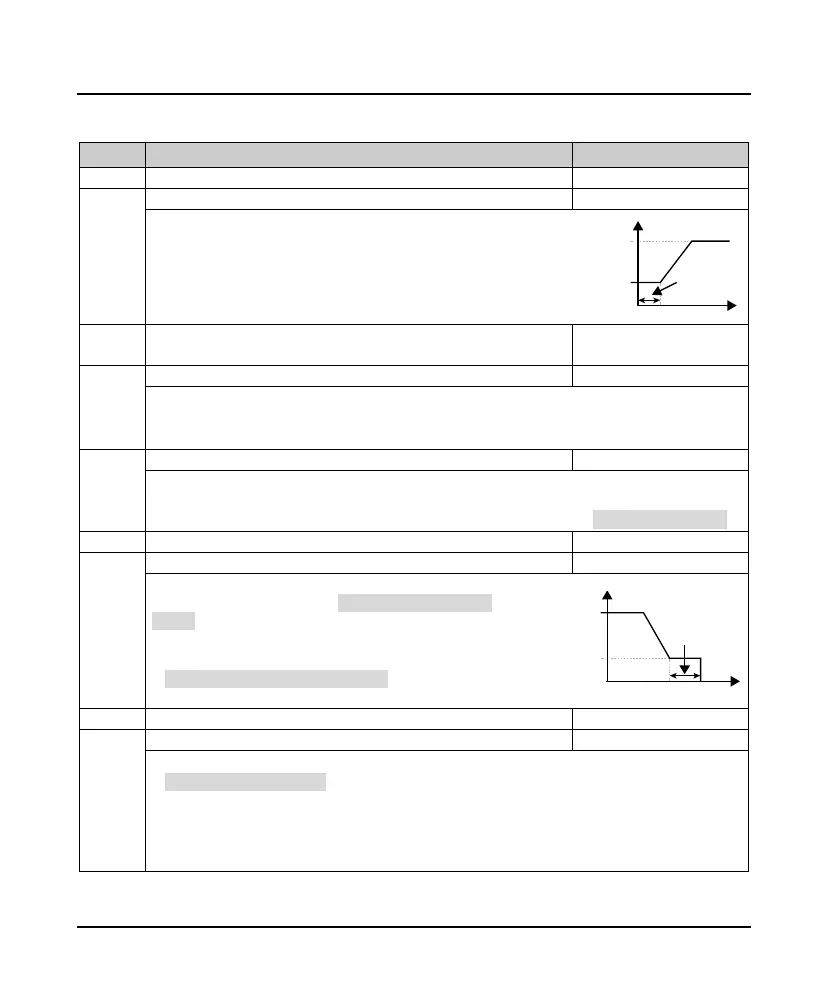

7.3 F02: Start and Stop Controlling Parameter
Ref. Code Function Description Setting Range [Default]
F02.02 Frequency setting of DWELL starting 0.0 - Max. frequency [0.0Hz]
F02.03
Frequency keeping time of DWELL starting
0.00 - 10.00 [0.00s]
F02.02 define DWELL frequency when converter starting.
F02.03 means DWELL frequency of keeping running during starting.
When F02.02 = 0 or F02.03 = 0, DWELL frequency in starting is not
valid.
F02.04 DC brake current setting 0 - 100% (converter rated
current) [50%]
F02.05
Starting DC braking time
0.00 - 60.00 [0.00s]
F02.04 defines current value in starting DC braking and stopping DC braking.
If F02.04 > 10 × motor rated current, then: Braking current = 10 × motor rated current.
When F02.05 = 0, no DC braking procedure.
F02.13
Stoping mode selection
1,2 [2]
1: Stop freely. Converter will stop output after receiving stopping order, machine will be freely stopped via
mechanical inertia.
2: Decelerate to stop. After receiving stopping order, converter will be stopped by decelration time (F03.02).
F02.14
DWELL frequency setting in stopping
0.0 - Max. frequency [0.0Hz]
F02.15 DWELL frequency keeping time in stopping 0.00 - 10.00 [0.00s]
F02.14 defines DWELL frequency of converter stoping F02.15
means keeping time of running in stopping DWELL frequency
(F02.14) during converter stopping.
When F02.14 = 0 or F02.15 = 0, stopping DWELL frequency is
invalid.
When F02.13 = 2 (deceleration stopping) and F02.14, F02.15 are
all not zero, stopping DWELL frequency is valid.
F02.16 Starting frequency of stopping DC braking 0.0 - 50.0 [0.5Hz]
F02.18
Stopping DC braking time
0.00 - 60.00 [0.00s]
During stopping, when running frequency decreased to F02.16, DC braking will start.
F02.13 = 2 (decelerating stop) and F02.14 - F02.16, F02.18 are all not zero:
If F02.14F02.16, first to keep stopping DWELL frequency and keeping time reaches F02.15, DC braking
will start.
If F02.14 < F02.16, running frequency decreased to F02.16, DC braking will start directly.
When F02.18 = 0, no DC braking procedure.
Frequency
Time
F02.02
Frequency set
F02.03
Frequency
Time
Frequency set
F02.14
F02.15
