Chapter 6 Operation Shenzhen Hpmont Technology Co., Ltd.
-24- HD09 Series User Manual V1.1

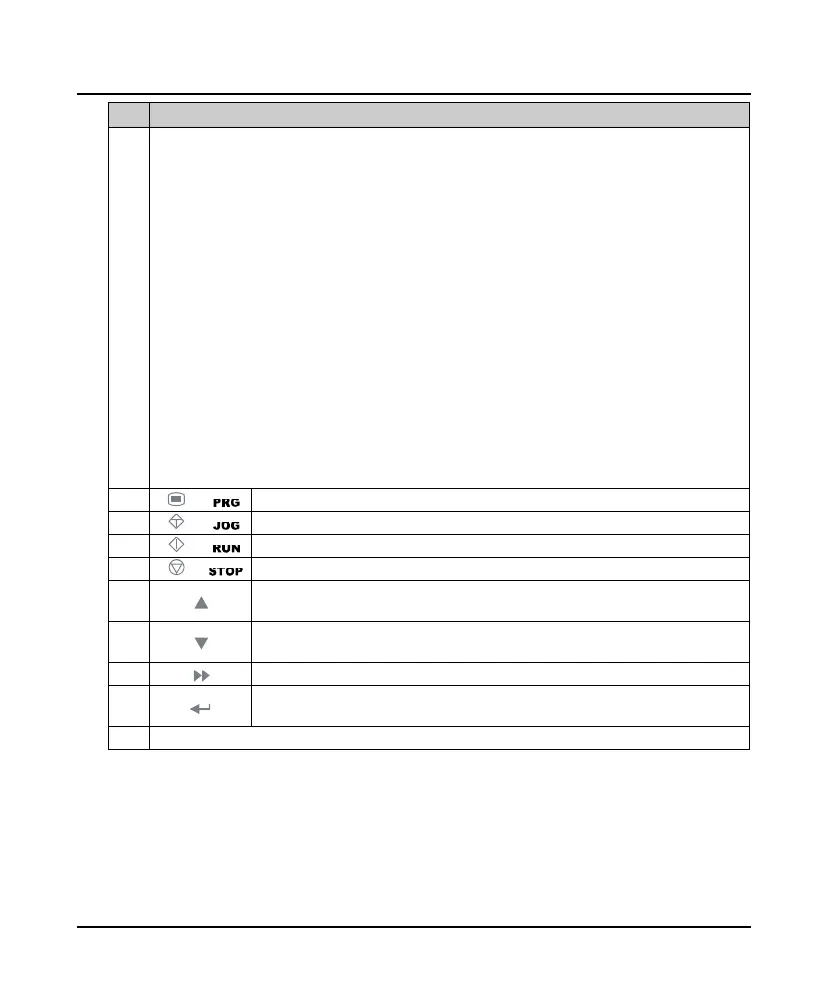

No. Description
1
The standard keypad contains LCD display, while the optional keypad contains LED nixie tubedisplay.
• Three status: Lighting, flashing and lightless.
• Do not remove the standard LCD keypad.
a. Status indicator: Indicating current status.
• FWD (Forward status): Motor is forward running (standard LCD) / lighting (optional LED)
• REV (Reverse status): Motor is reverse running (standard LCD) / lighting (optional LED)
• ALM (Alarm status): Motor is faulty (standard LCD) / lighting (optional LED)
• LO / RE (Local / Remote status): Inverter is in terminal or communication control mode (standard LCD) /
lighting (optional LED)
• LOCK (Password locked status): User password lock of the inverter is avail (standard LCD) / lighting
(optional LED)
b. Display area: Normal: Displays parameter. Faulty: Displays error code when the inverter is faulty.
• If a value is flashing, it mean that the value is revisable.
c. Unit indicator: Display unit of the current value.
• Include: Hz (frequency), A (current), V (voltage), RPM (rotate speed), % (percentage)
2
Program / Exit button: Entry or programming button
3
Jog button: In the keypad control, jog start the inverter
4
Run button: In the keypad control, press this button to run the inverter
5
Stop / Reset button: In the keypad control, to stop the inverter and reset the fault
6
Increment button: In selecting parameter status, press it to increass the value of
parameter; In setting parameter status, press it to incress the setting value.
7
Decrement button: In selecting parameter status, press it to decreass the value of
parameter; In setting parameter status, press it to decress the setting value.
8
SHE shift button: In selecting pr setting parameter status, shift 1 bit.
9
ENT enter/confirm button: Enter lower menu; In setting parameter status, confirm and
save the data.
10
Potentiometer: In setting parameter status, anti-clockwise means decrease, while clockwise means increase.
