HPtec SD4030B3 User Manual

11

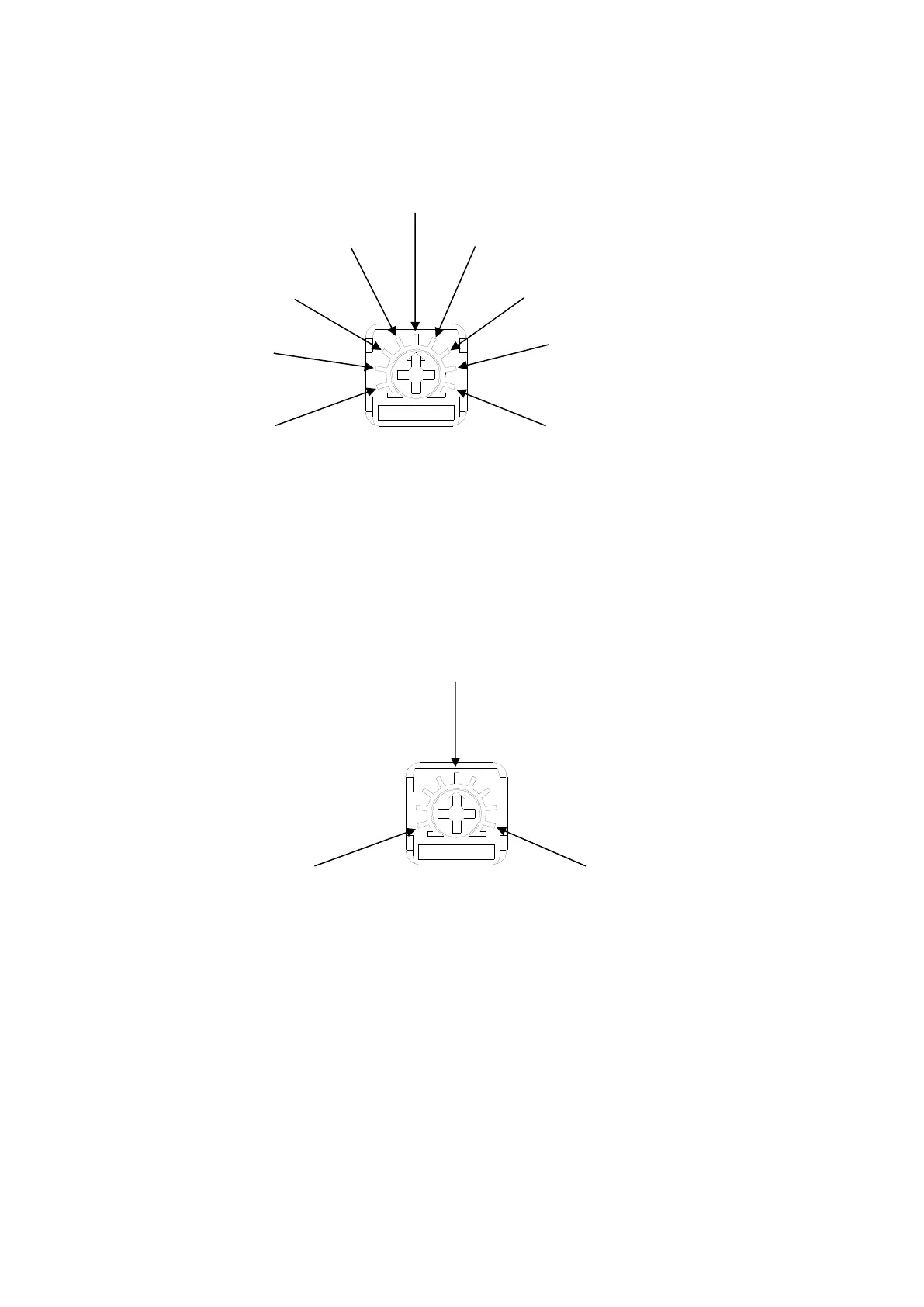

12-2 STOP potentiometer
This potentiometer is for setting a current value at the time of Auto Current Down. The setting value is
a ratio to the setting value of RUN potentiometer.
12-3 JOG potentiometer
Set a frequency value at JOG operation. The following frequency are only a guide, so please adjust the
potentiometer while watching an actual motor rotation speed. Please note that an angle of the potentiometer
and a frequency do not change linearly, and it will rise sharply from near the center.
630pps
“JOG” potentiometer
300pps
14Kpps
４５％
３６％
４８％
５２％
２９％
２２％
５６％
１０％
６０％
“STOP” potentiometer
