HSD ES929 - Pneumatic Connection Points for Spindles with Single-Acting Cylinder; Variation with Vertical Block (Single-Acting Cylinder)

HSD
5801H0056 _______________________________________________________________ 72/181

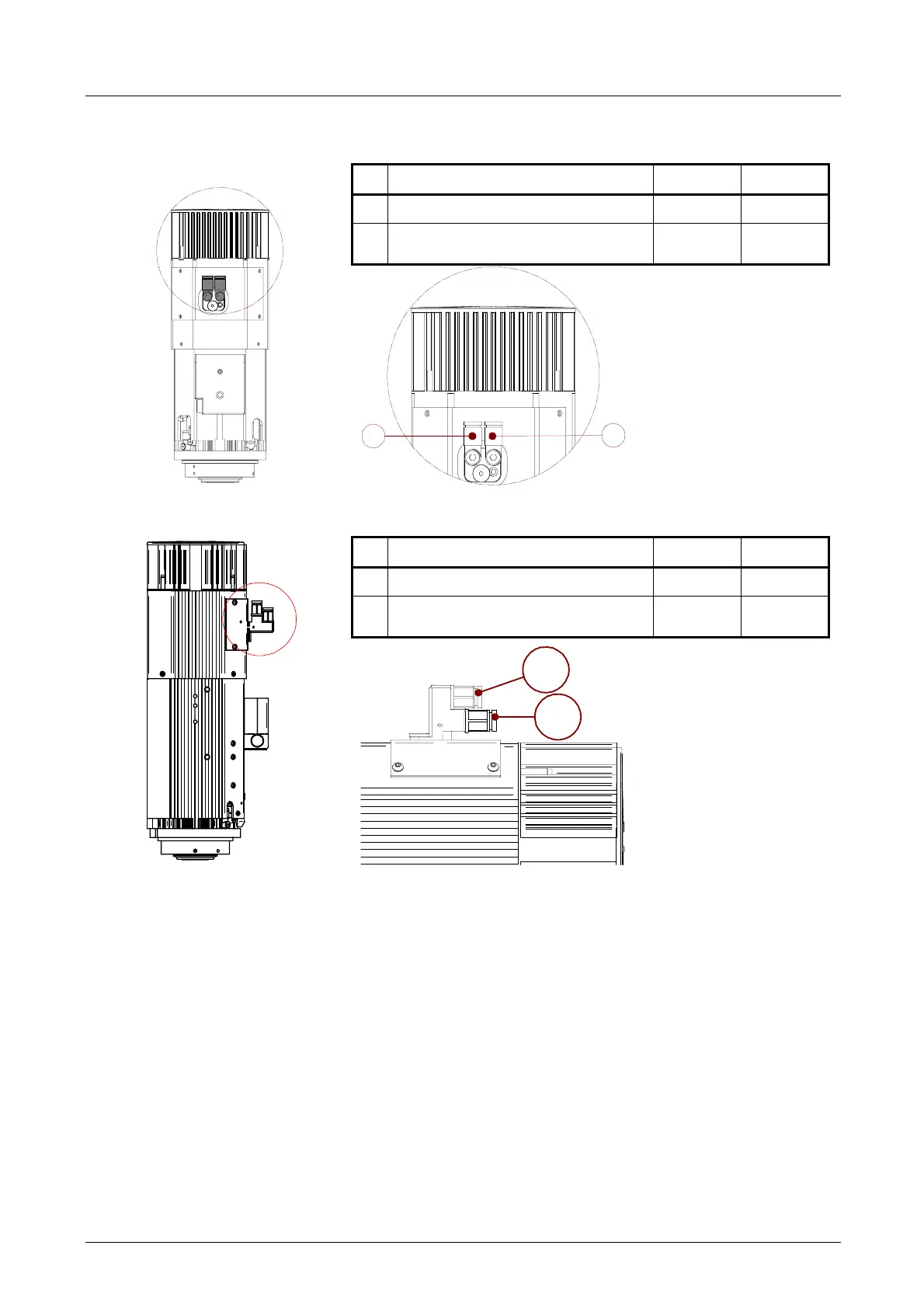

4.4.2 Pneumatic connection points for spindles with single-acting cylinder
Ref. Description Pressure Ø Tube
1 Tool-holder release 6 bar Ø 8 x 6
2
Pressurisation and cone
cleaning
4 bar Ø 8 x 6
2
1
4.4.3 Variation with vertical block (single-acting cylinder)
Ref. Description Pressure Ø Tube
1 Tool-holder release 6-7 bar Ø 8 x 6
2
Pressurisation and cone
cleaning
6-7 bar Ø 8 x 6
1
2
