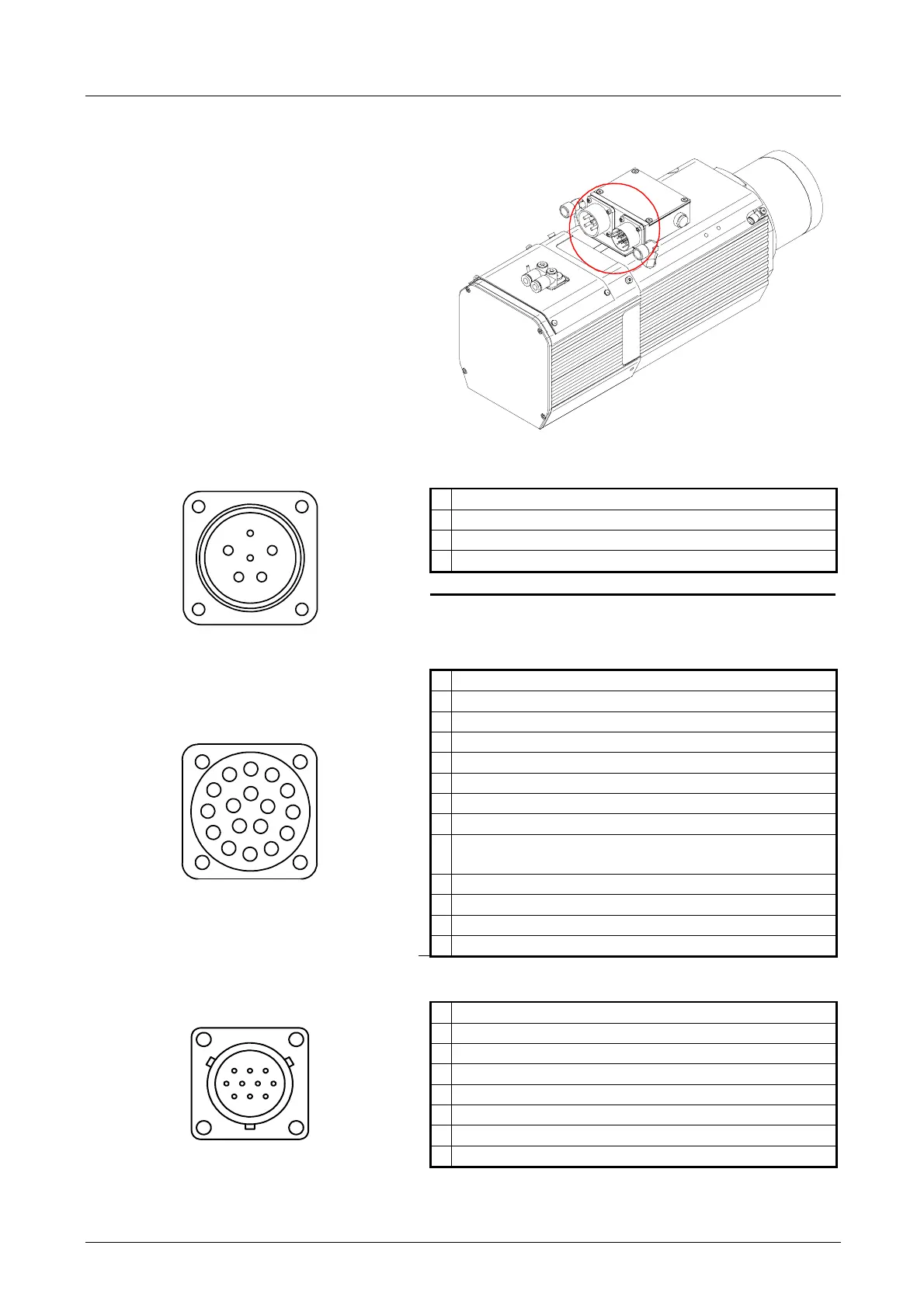

4.6.2 Military connectors
In some HSD electrospindle models a
“boosted” fixed mounting plate is
available. On it there are the “military”
connectors, whose dimensions are
greater than those of the standard
connectors.
4.6.2.1 Power connector
A
U motor phase
B
V motor phase
C
W motor phase
D
Earth connection
E
230V AC 50/60Hz solenoid valve (if present)
A
B
D
C
E
F
F
230V AC 50/60Hz solenoid valve (if present)
4.6.2.2 Sensors connector
A
S2 sensor (tool ejected) OUTPUT
B
S1+ S4 sensor series (tool locked) OUTPUT
C
OUTPUT sensor S3 (shaft stopped)
D
+24V CC power supply sensors S1, S2, S3.
E
+24V CC power supply to lamp of button
F
0V power supply sensors S1, S2, S3, S4.
G
+24V CC power supply to button and sensor SC
H
OUTPUT button
J
0V power supply to lamp of button and sensor
SC
L
SC sensor OUTPUT (C-axis zero-setting)
M
For maintenance
N
Motor thermal alarm
A
B
D
C
E
G
H
F
J
K
L
M
P
R
S
T
N
P
Motor thermal alarm
4.6.2.3 Encoder connector (optional)
A
A +
B
A -
C
B -
D
GND
E
Z +
F
5 V DC
J
B +
B
C
DE
F
G
H
A
KJ
K
Z -
