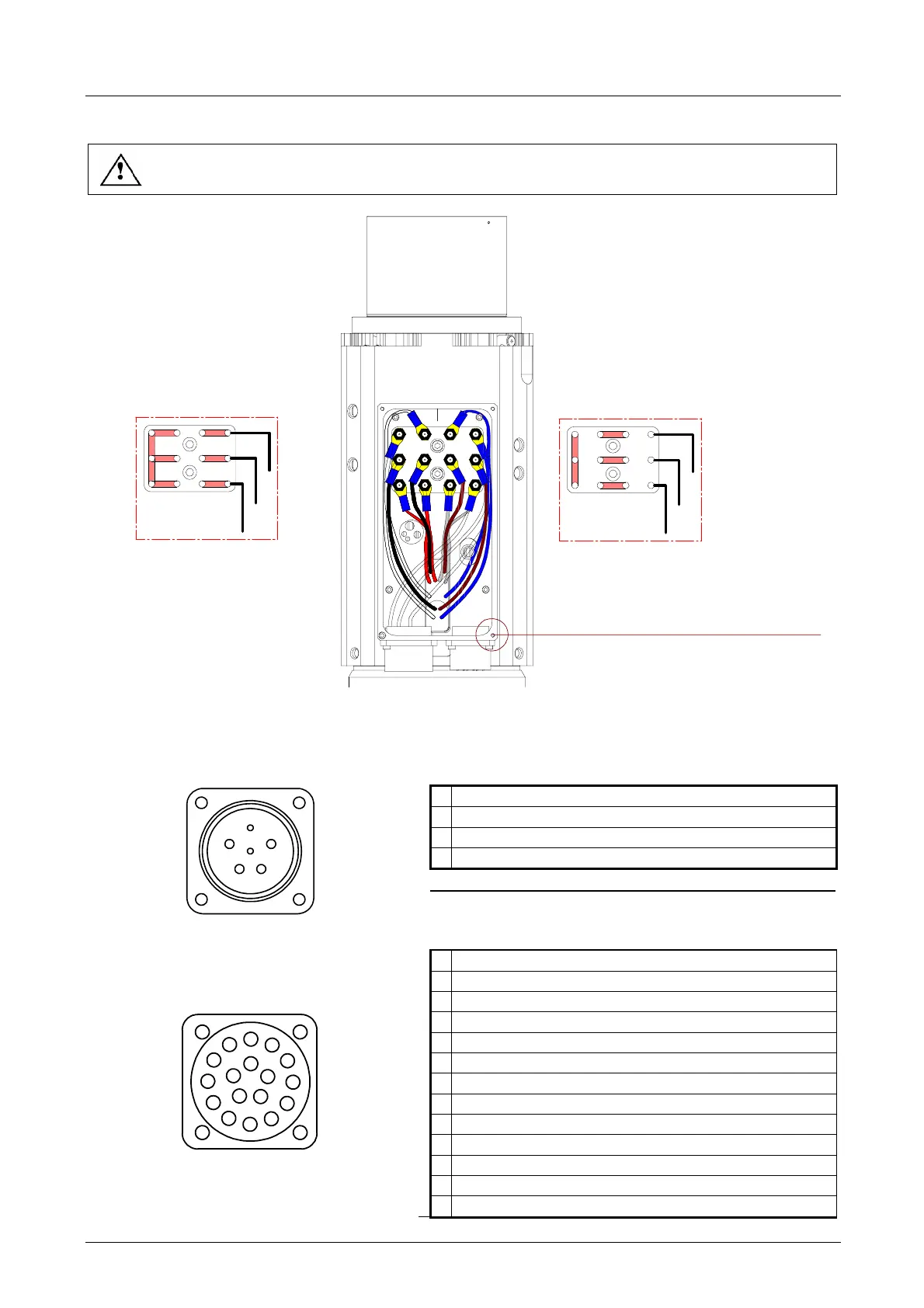

4.6.4 ES988 with configurable terminal board 220/440 V (optional)
Before opening the mounting plate to perform any operation, check that all the
electrically powered parts are disconnected.
U out
V out
W out
Serrare le viti del coperchio della basetta a 1.3 Nm
SET VOLTAGE 440V
W out
V out
U out
SET VOLTAGE 220 V
4.6.4.1 Power connector
A
U motor phase
B
V motor phase
C
W motor phase
D
Earth connection
E
230V AC 50/60Hz electric fan
A
B
D
C
E
F
F
230V AC 50/60Hz electric fan
4.6.4.2 Sensors connector
A
S2 sensor (tool ejected) OUTPUT
B
S1+ S4 sensor series (tool locked) OUTPUT
C
OUTPUT sensor S3 (shaft stopped)
D
+24V CC power supply sensors S1, S2, S3.
E
+24V CC power supply to lamp of button
F
0V power supply sensors S1, S2, S3, S4.
G
+24V CC power supply to button
H
OUTPUT button
J
0V power supply to lamp of button
L
Not used
M
For maintenance
N
Motor thermal alarm
A
B
D
C
E
G
H
F
J
K
L
M
P
R
S
T
N
P
Motor thermal alarm
