4.2.10. Setting the full scale for flexible clamp transducer
The instrument can be used with a flexible clamp transducer (optional accessory). For a
correct current measurement, it is necessary to set the full scale of voltage for the clamp
in use (please refer to the transducer’s user manual for the correct full scale value to be
set). Proceed as follows:
1. Switch off the instrument (OFF)
2. Press and hold key MODE/MXMNPK and switch on the instrument by turning the
rotary switch. The following screen appears on the display:

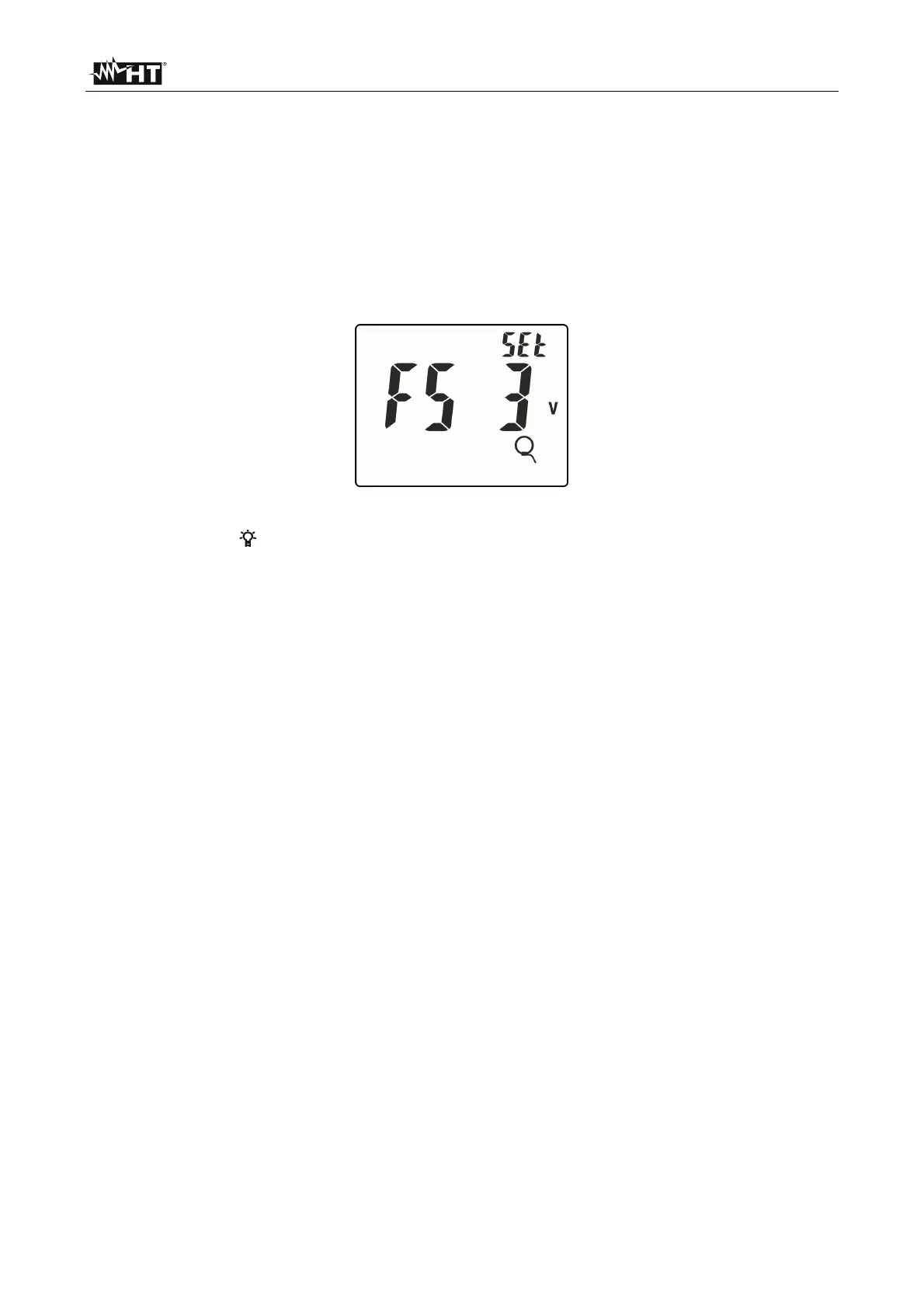

Fig. 5: Setting the full scale for flexible clamp transducer
3. Press keys /
or to set the full scale value of the clamp in use among the options:
3VAC (model F3000U) or 1VAC (other models).
4. Press key GO/HOLD to confirm and go back to measuring screen.
5. Settings are maintained very time the instrument is switched on.
