5. OPERATING INSTRUCTIONS

5.1. DC VOLTAGE MEASUREMENT

CAUTION

The maximum input DC voltage is 1000V. Do not measure voltages

exceeding the limits given in this manual. Exceeding voltage limits could

result in electrical shocks to the user and damage to the instrument.

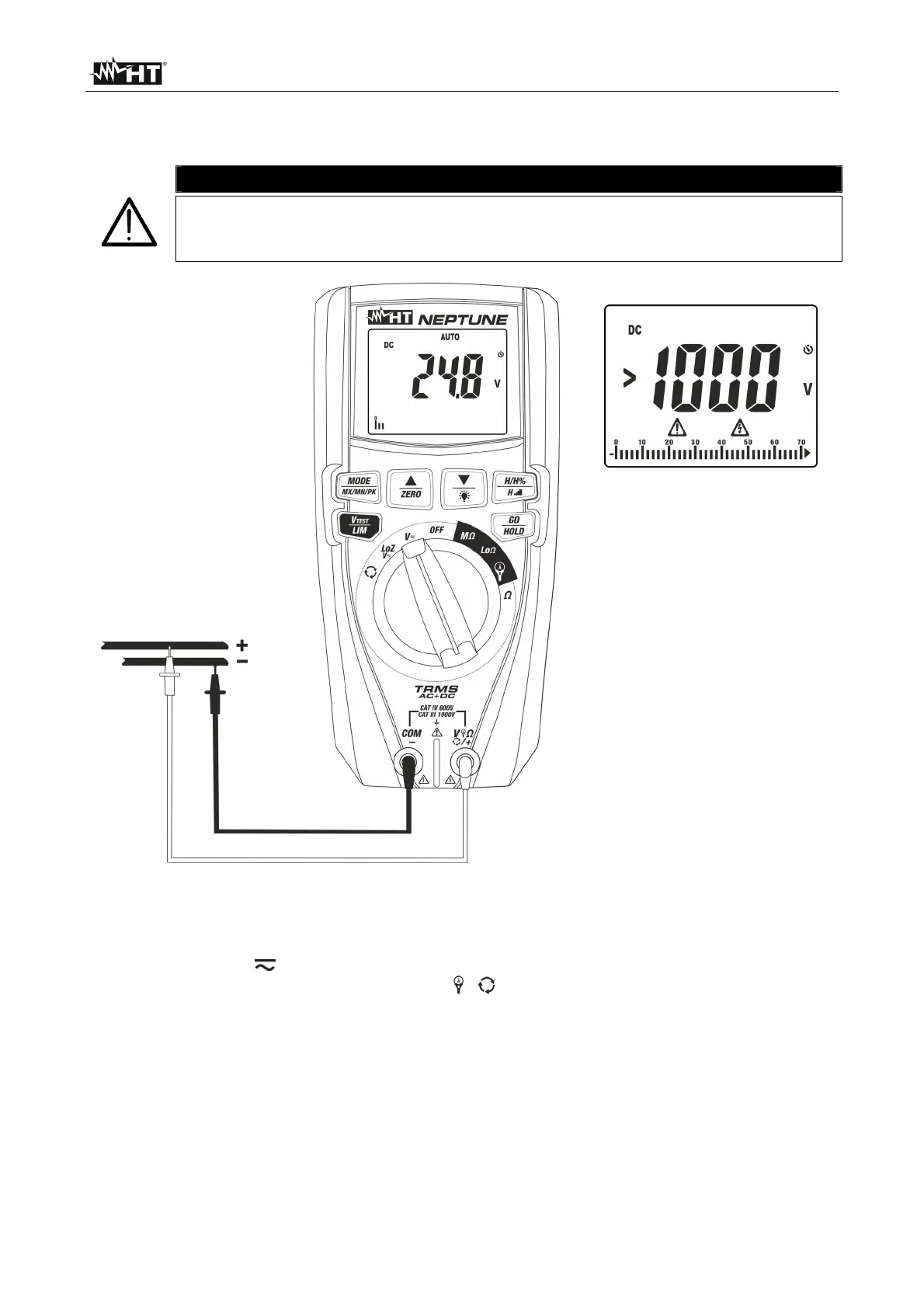

Fig. 6: Use of the instrument for DC voltage measurement

1. Select position V

2. Insert the red cable into input terminal V  /+ and the black cable into input terminal

COM.

3. Position the red lead and the black lead respectively in the spots with positive and

negative potential of the circuit to be measured (see Fig. 6). The display shows the

value of voltage.

4. If the display shows the message “>1000V” (see Fig. 6), the maximum measurable

value has been reached.

5. When symbol "-" appears on the instrument’s display, it means that voltage has the

opposite direction with respect to the connection in Fig. 6.

6. To use functions HOLD, MAX/MIN/PK, see § 4.2
