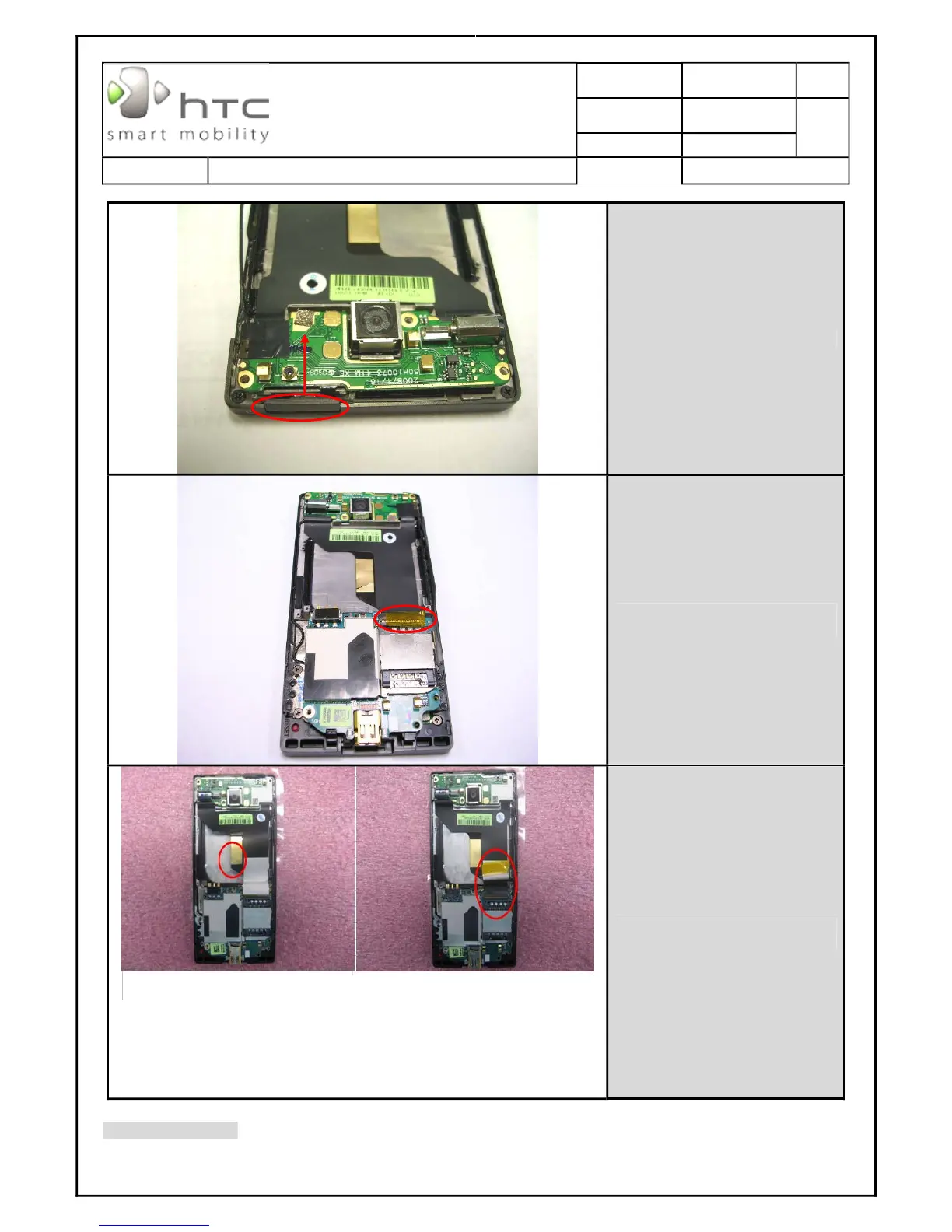

REMOVE THE POWER BUTTON COVER
REMOVE THE LCM FPC TAPE FROM
THE CONNECTOR
LOOSE THE LCM FPC CABLE FROM
THE CONNECTOR
Loss the glue under backward
Remove the EMC tape and
connector cover
