5. Power Measurement Test
5.1 Main board leakage current Test Procedure
This is a quick method to measure if any abnormal leakage current on main board
which caused high power consumption compare to GOOD main board.
(1) Requirement：
- Control box

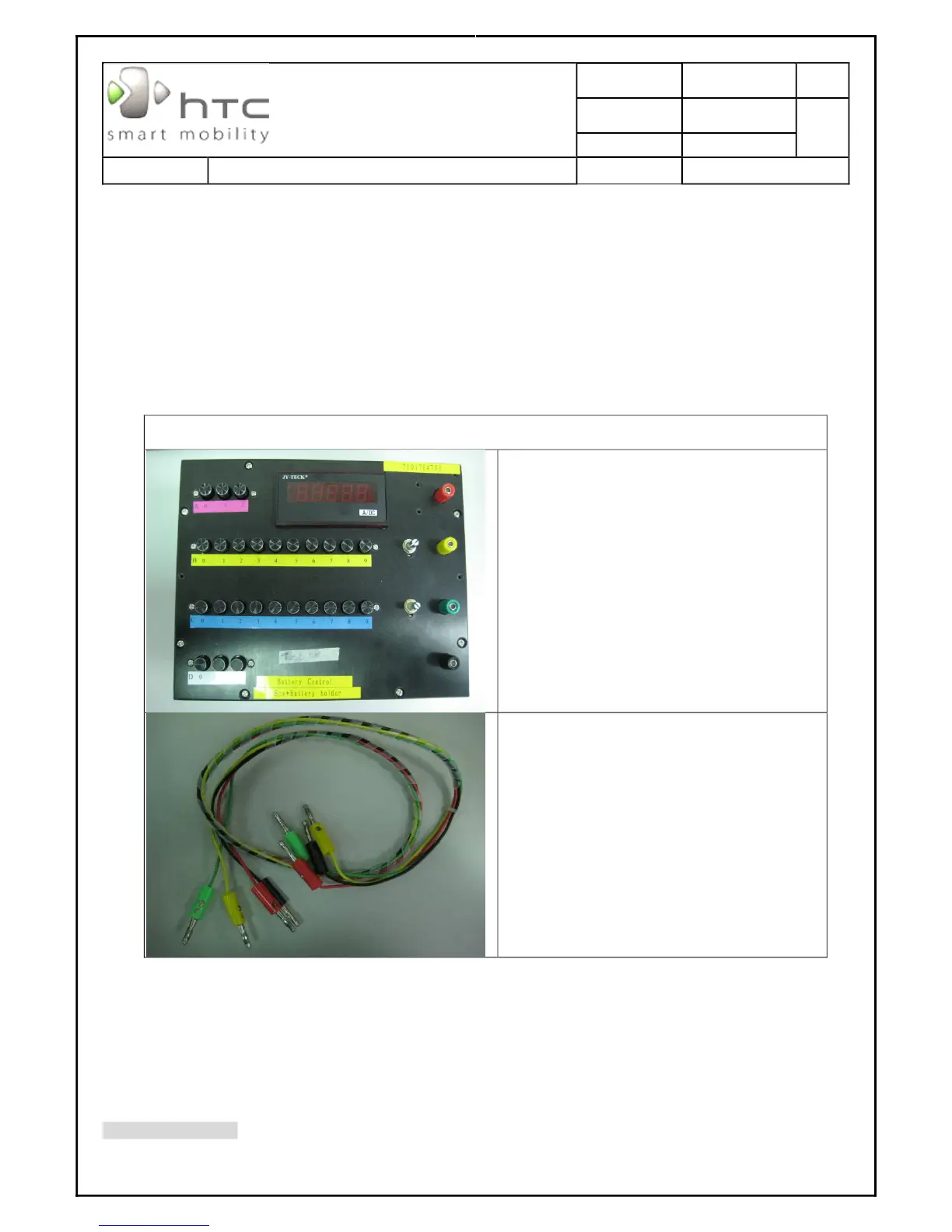

Equipment list
1. Control box
2. 4 colors cable
Cable A: Red
Cable B: Yellow
Cable C: Green
Cable D: Black
