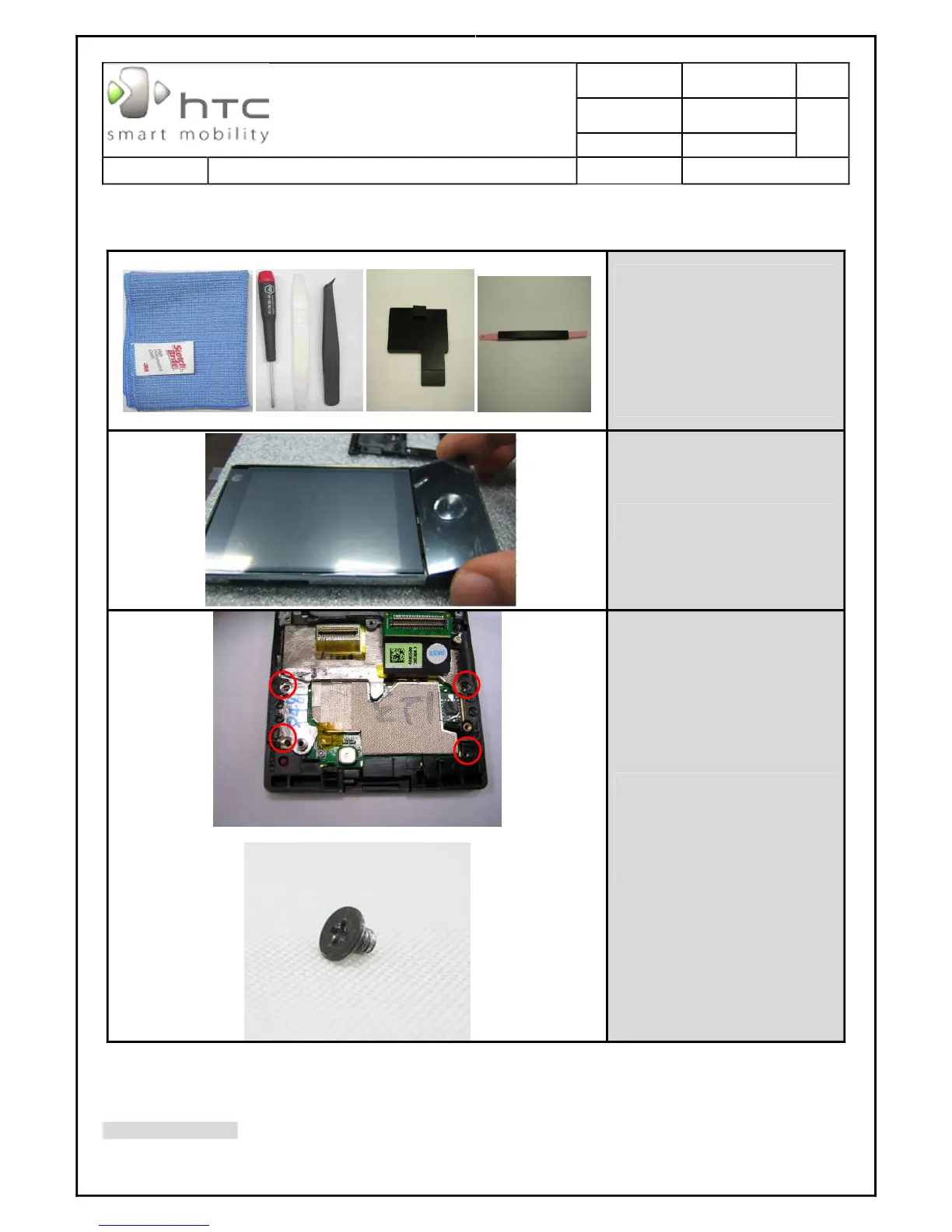

2.3 Assembling procedure
TOOLS NEEDED FOR ASSEMBLING
AND DISASSEMBLING PROCESS.
1. LENS CLEANING CLOTH.
2. PHILIPS SCREW DRIVER 000X40.
3. FLAT PLASTIC STICK.
4. PLASTIC TWEEZERS .
5. BOARD TO BOARD CONNECTOR
ASSEMBLY FXTURE
INSERT THE NAVI BOARD MODULE
INTO THE HOUSING
FASTEN THE 4 SCREWS AS INDICATED
POSITION OF PICTURE
TORQUE: 0.5 ± 0.1KGF
-CM
P/N: 72H02456-00M * 4
