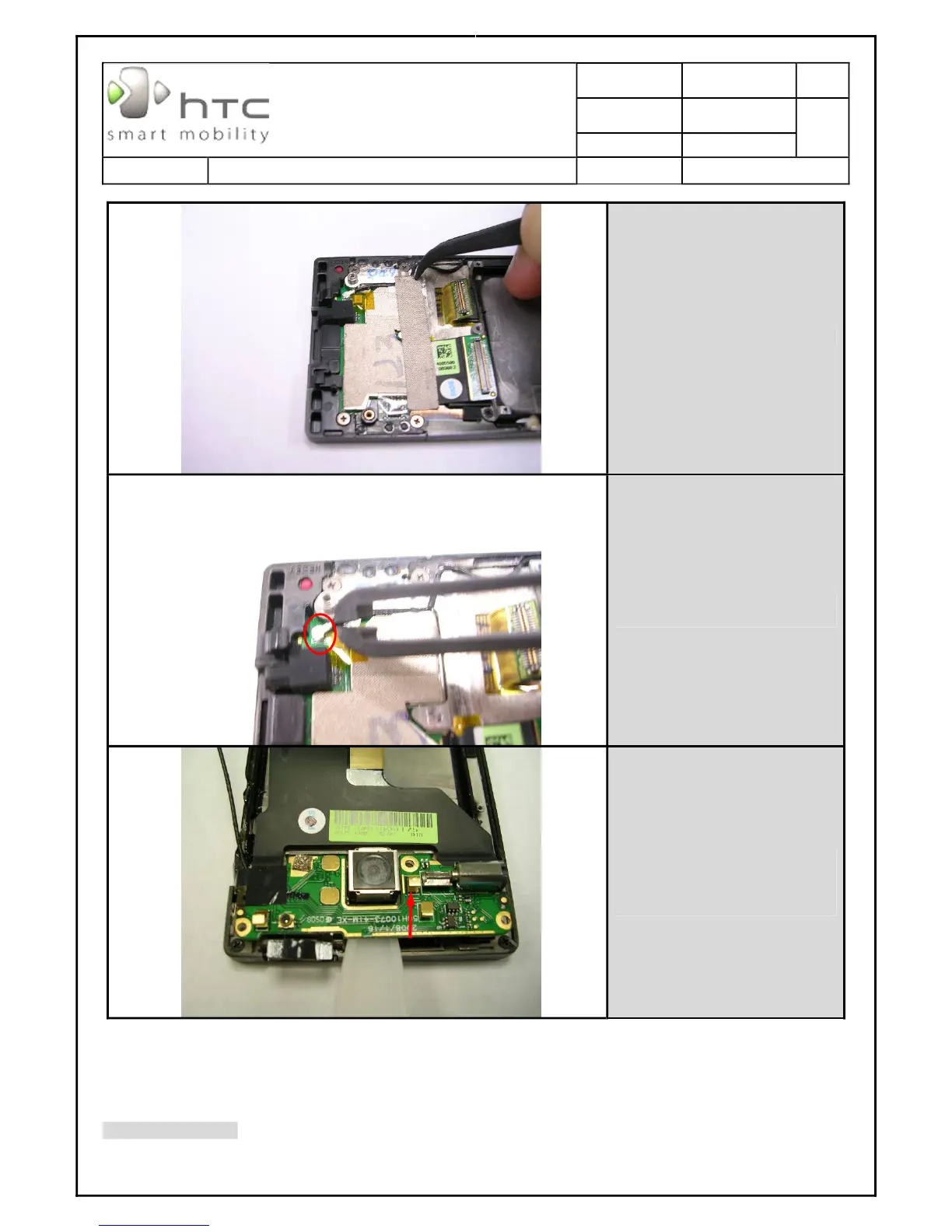

REMOVE THE GASKET TAPE
DISCONNECT THE BT/WIFI COAXIAL
CABLE FROM THE NAVI BOARD
USE FLAT PLAASTIC STICK TO SLIP
OUT THEN TAKE OUT THE RIGID FLEX
BOARD FROM THE HOUSING
CAREFULLY
