HTC VIVE Wireless Adapter User Manual

Setup
Setting up VIVE Wireless Adapter
Here's what you need to do to set up VIVE Wireless Adapter for your headset.

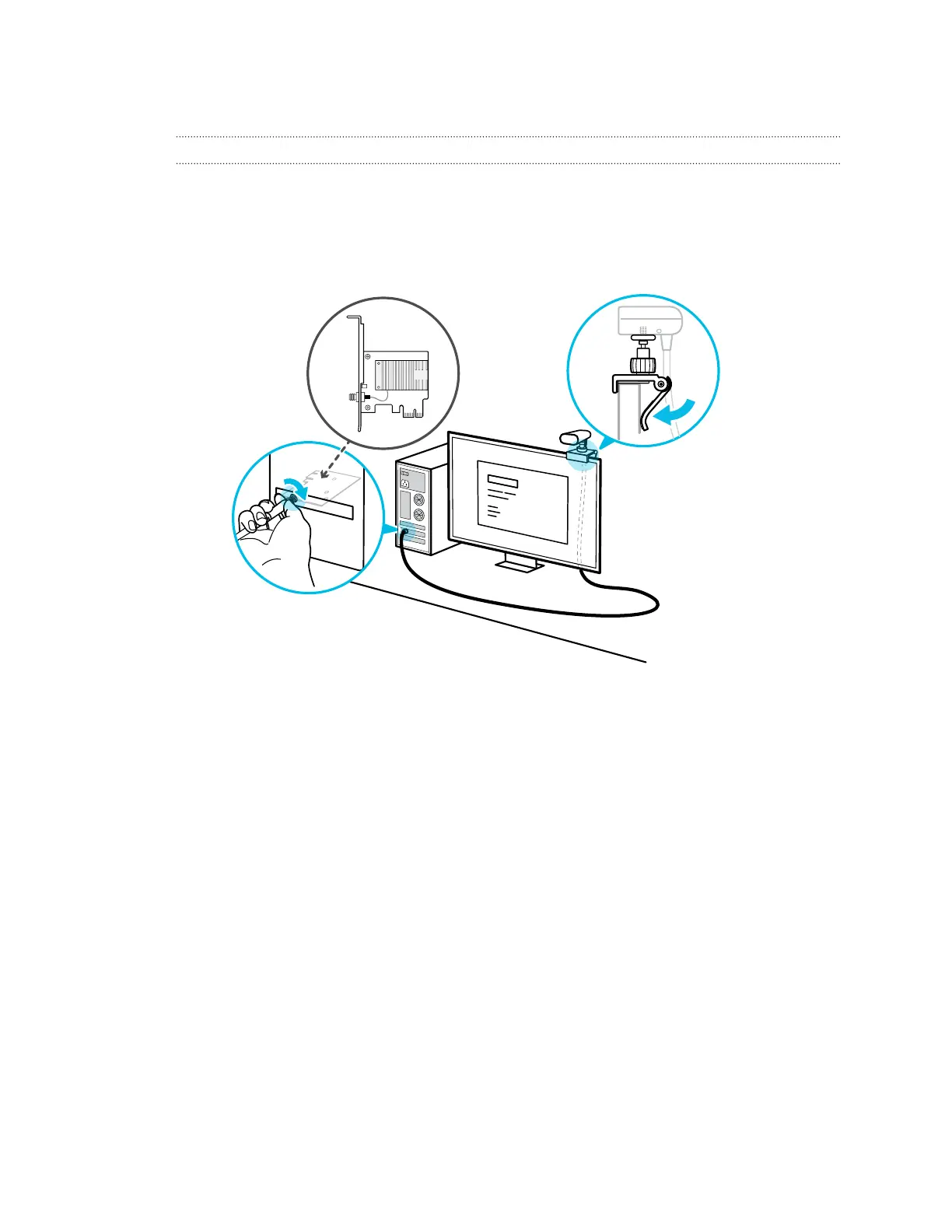

1. Install the PCIe card in your computer. Connect the wireless link box to the card. See
Installing the PCIe WiGig card on page 9 and Connecting the wireless link box to your
computer on page 9.
2. Replace the original headset cable with the short headset cable from the VIVE Cosmos
Wireless Adapter Attachment Kit. See Replacing the headset cable on page 11.
3. Attach the thin velcro pad to VIVE Cosmos. See Attaching the thin velcro pad on page
15.
4. Replace the wireless adapter cradle with the cradle from the VIVE Cosmos Wireless
Adapter Attachment Kit. See Replacing the cradle on the wireless adapter on page 16.
5. Attach VIVE Wireless Adapter and the head pad to VIVE Cosmos. Then connect the short
headset cable from the headset to the wireless adapter. See Attaching the wireless
adapter to VIVE Cosmos on page 17.
6. Use the VIVE Console app to pair the wireless adapter with the wireless link box. For
details, see Pairing VIVE Wireless Adapter with your computer on page 22.
7. Connect the power bank from the VIVE Cosmos Wireless Adapter Attachment Kit to the
wireless adapter. See Connecting the power bank to VIVE Wireless Adapter on page 19.
7 VIVE Wireless Adapter for VIVE Cosmos

HTC VIVE Wireless Adapter Specifications

General

Product type	Tracker
Compatibility	Vive
Product color	Black
Brand compatibility	HTC
Compatible device type	Head-mounted display

Weight and Dimensions

Depth	96.65 mm
Width	200 mm
Height	40.43 mm
Weight	129 g
