Item
Requirements
dustproof plastic tape. Use double-pane glass in the windows and seal
them tightly.
Wall surface
treatment
Paste wallpaper on the wall or apply flat paint. Do not use pulverized
paint.
Cable trays
Use cable trays to arrange cables. The inner faces of the cable trays must
be smooth. The reserved length and width of the cable trays, and the
number, position and dimensions of the holes must comply with the
requirements of device arrangement.
Water pipe
Do not pass service pipes, drainpipes, and storm sewers through the
equipment room. Do not place a fire hydrant in the equipment room, but
place it in the corridor or near the staircase.
Internal
partition wall
Separate the area where the equipment is installed from the equipment
room door. The partition wall can block some outside dust.
Installation
position of the
air conditioner
Install air conditioner vents so that the air does not blow directly on
equipment.
Other
requirements
Avoid the proliferation of mildew, and keep out rodents (like mice).

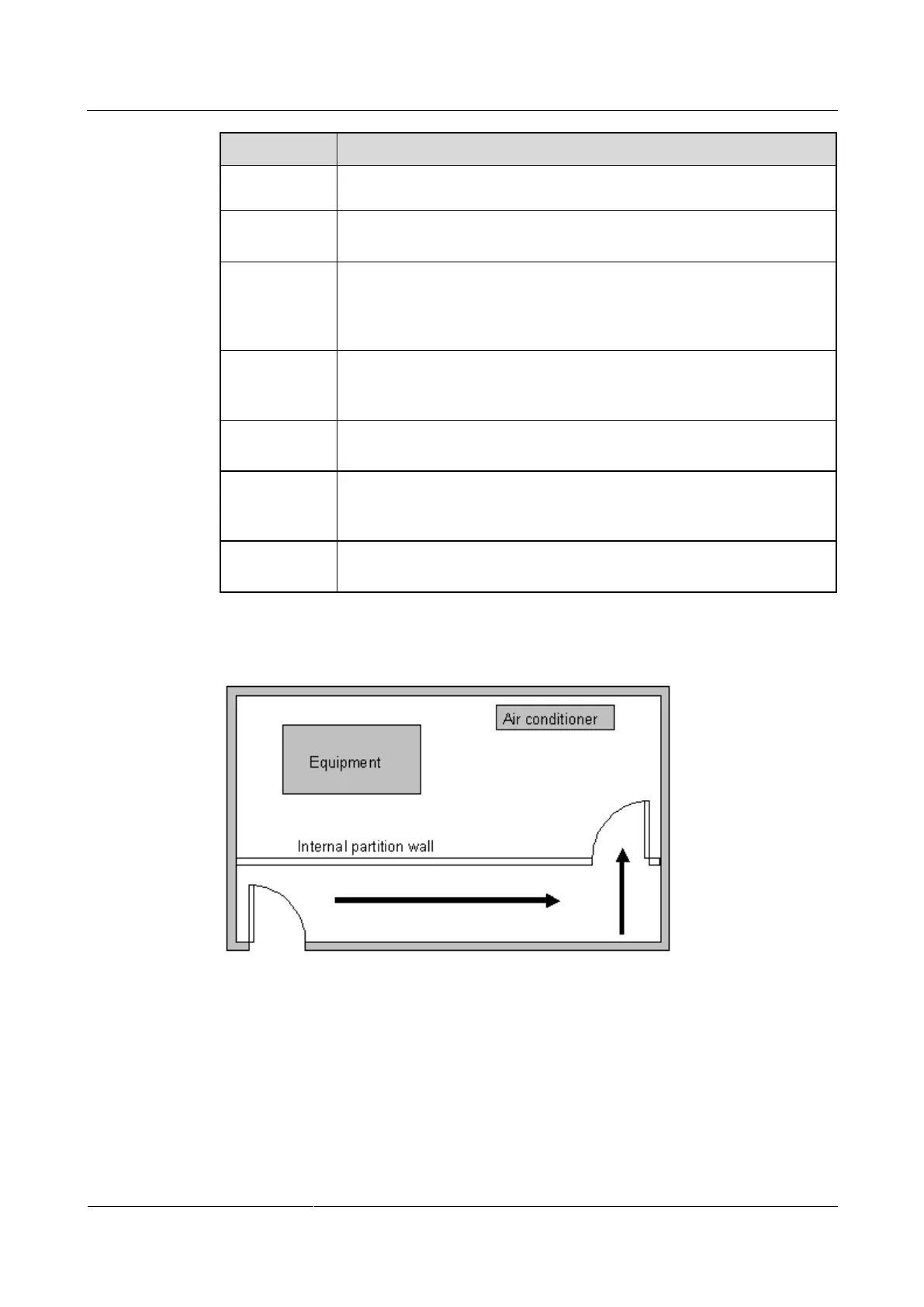

Figure 5-80 Internal partition wall inside the equipment room
Equipment Room Environment
Dust on devices may cause electrostatic discharge and result in poor contact for connectors or
metal connection points. This problem can shorten the life span of devices and cause faults.
The equipment room must be free from explosive, conductive, magnetically-permeable, and
corrosive dust. Table 5-11 shows the requirement for dust concentration in the equipment
room.

Huawei AP4030DN Specifications

General

2.4 GHz	Yes
Bandwidth	5 GHz
Frequency band	2.4, 5 GHz
Number of users	256 user(s)
Operating modes	Access Point (AP)
Channels quantity	13 channels
Number of VLAN IDs	4094
Transmitting power	20 dBmW
Scheduling features	Airtime scheduling, Queue mapping & scheduling
Control channel mode	Tagged & untagged
Fit AP mode features	802.11k & 802.11v smart roaming, AC dual-link backup, AC unified management & maintenance, Dual-MPP mesh networking, Mesh networking, Hotspot 2.0, Plug and Play, Service holding upon CAPWAP link disconnection, Unified authentication on the AC, WDS zero-configuration deployment, Wireless distribution system (WDS)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Rate adjustment type	Automatic & manual
Virtual LAN features	SSID-based VLAN assignment
Data unit aggregation	A-MPDU (Tx/Rx), A-MSDU (Rx only)
WLAN channel features	WLAN channel management, WLAN channel rate adjustment
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1167 Mbit/s
Location services supported	AeroScout tags, Ekahau tags, Wi-Fi terminals
Number of virtual APs (VAPs)	16
Wi-Fi Multimedia (WMM) features	WMM parameter management for each radio, WMM profile based packet scheduling, WMM profile based priority mapping, WMM power saving
Maximum data transfer rate (5 GHz)	867 Mbit/s
AC input voltage	12 V
Power consumption (max)	10.2 W
Internal	No
Placement	Table
Product color	White
LED indicators	Status
International Protection (IP) code	IP41
Flash memory	32 MB
Internal memory	256 MB
Security algorithms	802.1x RADIUS, WAPI, WEP, WPA, WPA2, WPA2-PSK
Device type identification	DHCP options, Organizationally Unique Identifier (OUI), User Agent (UA)
Service Set Identifier (SSID) features	Hidden SSID
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Operating altitude	-60 - 5000 m
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Local AP management	Serial port, Telnet
Antenna features	Integrated antenna
Antenna gain level (max)	6 dBi

Weight and Dimensions

Width	180 mm
Height	39.5 mm
Weight	400 g
