Huawei AR500 - AR503 GW-Lcm7

3 WAN interface: GE electrical interface 4 Two SIM card slots
NOTE
l The SIM card slots support double-card
single-standby.
l Industrial SIM cards are recommended
for the router.
l The mounting hole above the SIM card
slots is used to fix the SIM card cover
with a screw.
5 RST button
NOTE
This button is used to reset the router.
l To restore the factory settings, hold down
the button for at least 5 seconds.
l To reset the system, press the button.
Resetting the router will interrupt services.
Exercise caution when deciding to press this
button.
6 USB interface (host)
7 Reserved 3G/LTE antenna interface 8 3G/LTE antenna interface
9 GPS antenna interface 10 Two Wi-Fi antenna interfaces
4.1.5 AR503GW-LcM7
Appearance and Structure
Figure 4-5 shows the appearance of the AR503GW-LcM7 router.

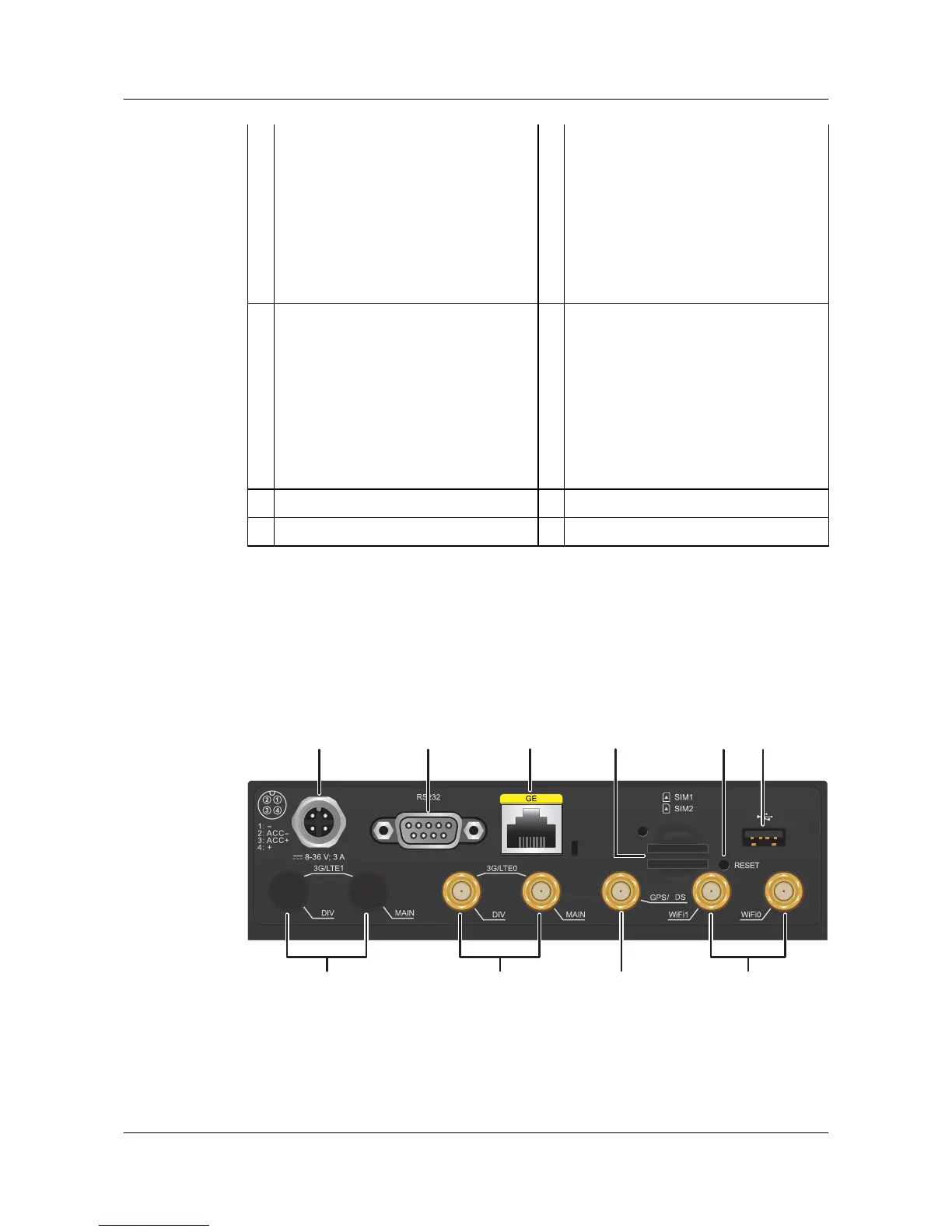

Figure 4-5 AR503GW-LcM7 appearance
21 3
9
456
87 10
B
