4.5.2 AR2504E-H
Appearance and Structure

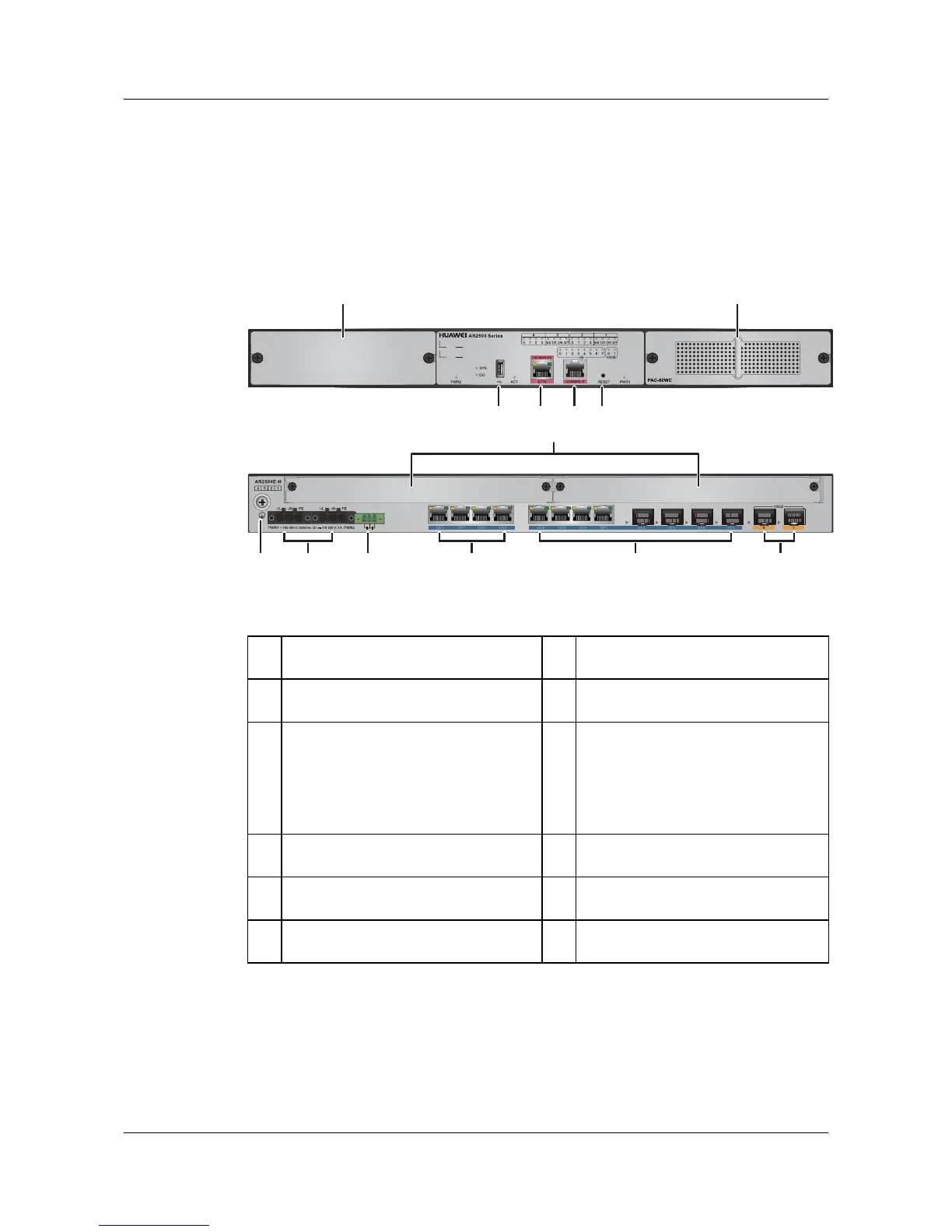

Figure 4-26 shows the panels of the AR2504E-H router.
Figure 4-26 AR2504E-H panels
1234
11 11
56 7 8 9 10
12
1
USB interface 2 ETH interface
3 Console interface 4 RST button
5 Ground point
NOTE
The router must be reliably grounded using a
ground cable to protect the router from
lightning and electromagnetic interference.
6 Two power sockets
7 DO interface 8 Four GE electrical interfaces
9 Four GE combo interfaces 10 Two 10GE optical interfaces
11
Two power module slots
12
Two WSIC slots
4.5.3 AR2504-D-H
Appearance and Structure
Figure 4-27 shows the appearance of the AR2504-D-H router.
