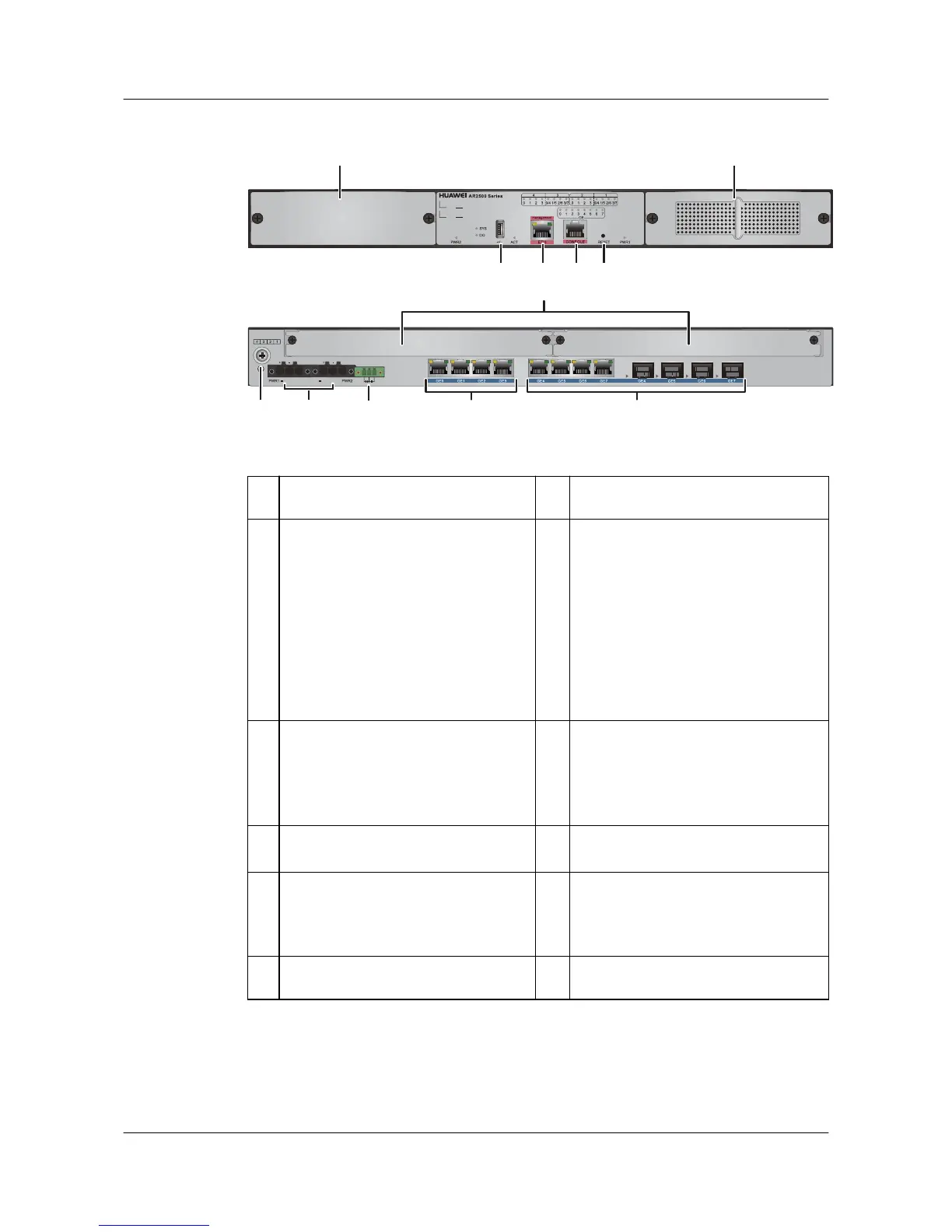

Figure 4-27 AR2504-D-H appearance
1234
10 10
PLD60S12-C1
5
11
67 8 9
AR2504-D-H
NC
NC
24-48V;4-2A 24-48V;4-2A
1
USB interface
2
ETH interface
3
Console interface
4
RST
NOTE
This button is used to reset the router.
l Holding down the button for 10 seconds
will restore the factory settings.
l Pressing the button will reset the
system.
Resetting the system will interrupt services.
Exercise caution when performing this
operation.
5
Ground point
NOTE
To protect the router from lightning and
interference, reliably ground the router
using a Ground Cable.
6
Two DC power sockets
7
DO interface
8
LAN interfaces: four GE electrical
interfaces
9
LAN interfaces: four GE combo
interfaces
10
Two power module slots
Applicable power module: 60 W DC
power module
11
Two WSIC slots
- -
