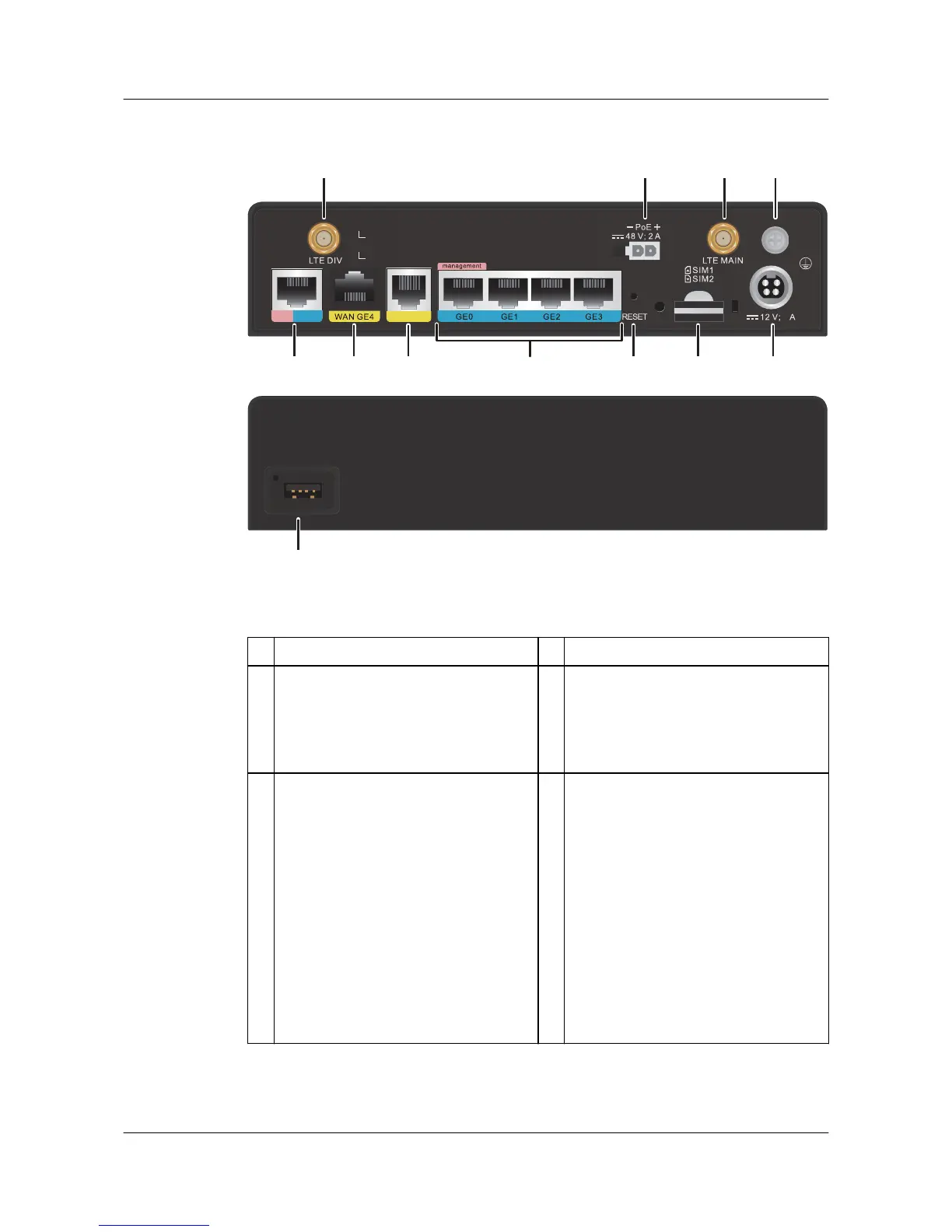

Figure 4-8 AR509G-Lc appearance
11
AR509G-Lc
V D S L
1
CON RS232
1
8
9 8 10
2 3 5 6 74
1
CON/RS232 interface 2 WAN interface: GE electrical interface
3 WAN interface: VDSL interface 4 LAN interfaces: four GE electrical
interfaces
NOTE
GE0 is a management interface and is used to
upgrade the router.
5 RST button
NOTE
This button is used to reset the router.
l To reset the system, press the button.
l To restore the factory settings, hold down
the button for a period longer than 3
seconds and shorter than 10 seconds.
l Holding down the button for 10 seconds
or longer will switch from the default
CON mode to the RS232 mode or from
RS232 to CON mode.
Resetting the router will interrupt services.
Exercise caution when deciding to press this
button.
6 Two SIM card slots
NOTE
l Industrial SIM cards are recommended
for the router.
l The router supports double-card single-
standby, and SIM1 is the default master
card.
l If only one SIM card needs to be
installed, install it in slot SIM1.
