Huawei EchoLife HG531 User Manual

6
2 Connecting the Cables and Getting
Started
2.1
Simple Connection

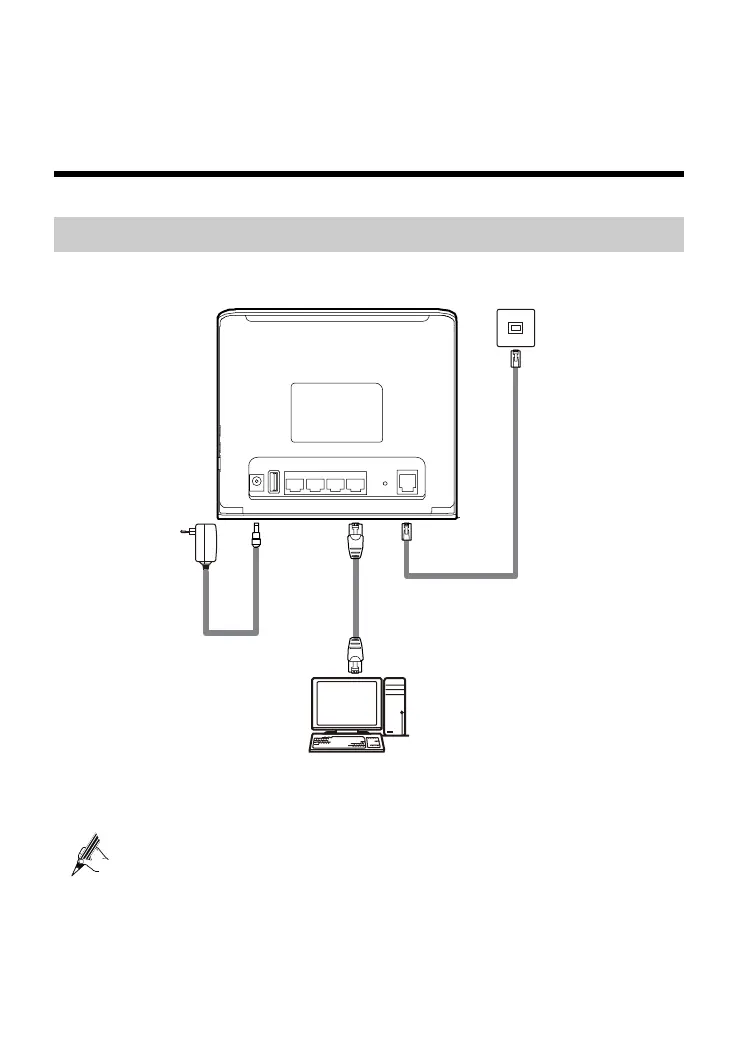

If your telephone line is used for the broadband network access only and do not need to
use a telephone, take the following figure as a reference for connecting the cables.
1
3
4
POWER
LAN4 LAN3 LAN2 LAN1USB
RESE T
ADSL
1. Telephone jack on the wall 2. Power adapter 3. Computer
If the wireless network function is used on the HG531 for the network
access, you do not need to connect the cables.

Huawei EchoLife HG531 Specifications

General

Model	HG531
Category	Gateway
Wireless Standard	802.11b/g/n
Frequency Band	2.4 GHz
Ethernet Ports	4 x 10/100 Mbps
USB Port	No
Wireless	Yes
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Power Supply	12V DC, 1A
ADSL Standard	ITU G.992.1 (G.dmt), ITU-T G.992.2 (G.lite), ITU-T G.992.3 (ADSL2), ITU-T G.992.5 (ADSL2+)
Security	WEP, WPA, WPA2
Ports	4 Ethernet, 1 DSL
Operating Humidity	5% to 90% (non-condensing)
WLAN Speed	Up to 54 Mbps (802.11g), Up to 150 Mbps (802.11n)
