Huawei EchoLife HG531 User Manual

7
2.2
Connecting One Telephone

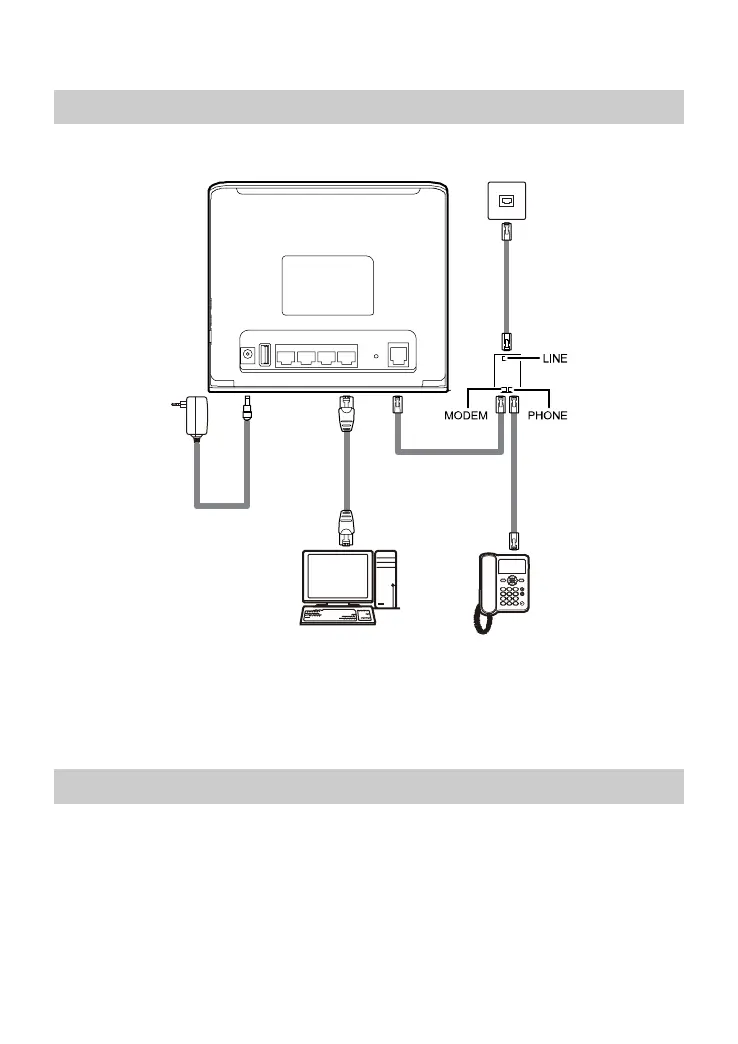

If your telephone line is used for both the broadband network access and a telephone
connection, take the following figure as a reference for connecting the cables.
####
#### ####
1
3
4
5
2
POWER
LAN4 LAN3 LAN2 LAN1USB
RESE T
ADSL
1. Telephone jack on the wall 2. Splitter 3. Power adapter
4. Computer 5. Telephone
2.3
Connecting Multiple Telephones
If your telephone line is used for the broadband network access, telephone connections,
and fax connections, take the following figure as a reference for connecting the cables.

Huawei EchoLife HG531 Specifications

General

Model	HG531
Category	Gateway
Wireless Standard	802.11b/g/n
Frequency Band	2.4 GHz
Ethernet Ports	4 x 10/100 Mbps
USB Port	No
Wireless	Yes
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Power Supply	12V DC, 1A
ADSL Standard	ITU G.992.1 (G.dmt), ITU-T G.992.2 (G.lite), ITU-T G.992.3 (ADSL2), ITU-T G.992.5 (ADSL2+)
Security	WEP, WPA, WPA2
Ports	4 Ethernet, 1 DSL
Operating Humidity	5% to 90% (non-condensing)
WLAN Speed	Up to 54 Mbps (802.11g), Up to 150 Mbps (802.11n)
