Vehicle Scenario
In this scenario, eMDC610 and eMRS610 are integrated into a KISS 1U SHORT KTQM67
server. KISS 1U SHORT KTQM67 is a 1 U high 19 inch server developed for vehicle
mounting. The server installation is reinforced so that the server has good anti-shocking
performance. The design of the server is optimized from the aspects of shock absorption,
reinforced installation, heat dissipation, and electromagnetic compatibility (EMC). The server
is formed by stainless steel boards and the environment performance complies with
GB4879.5M2.

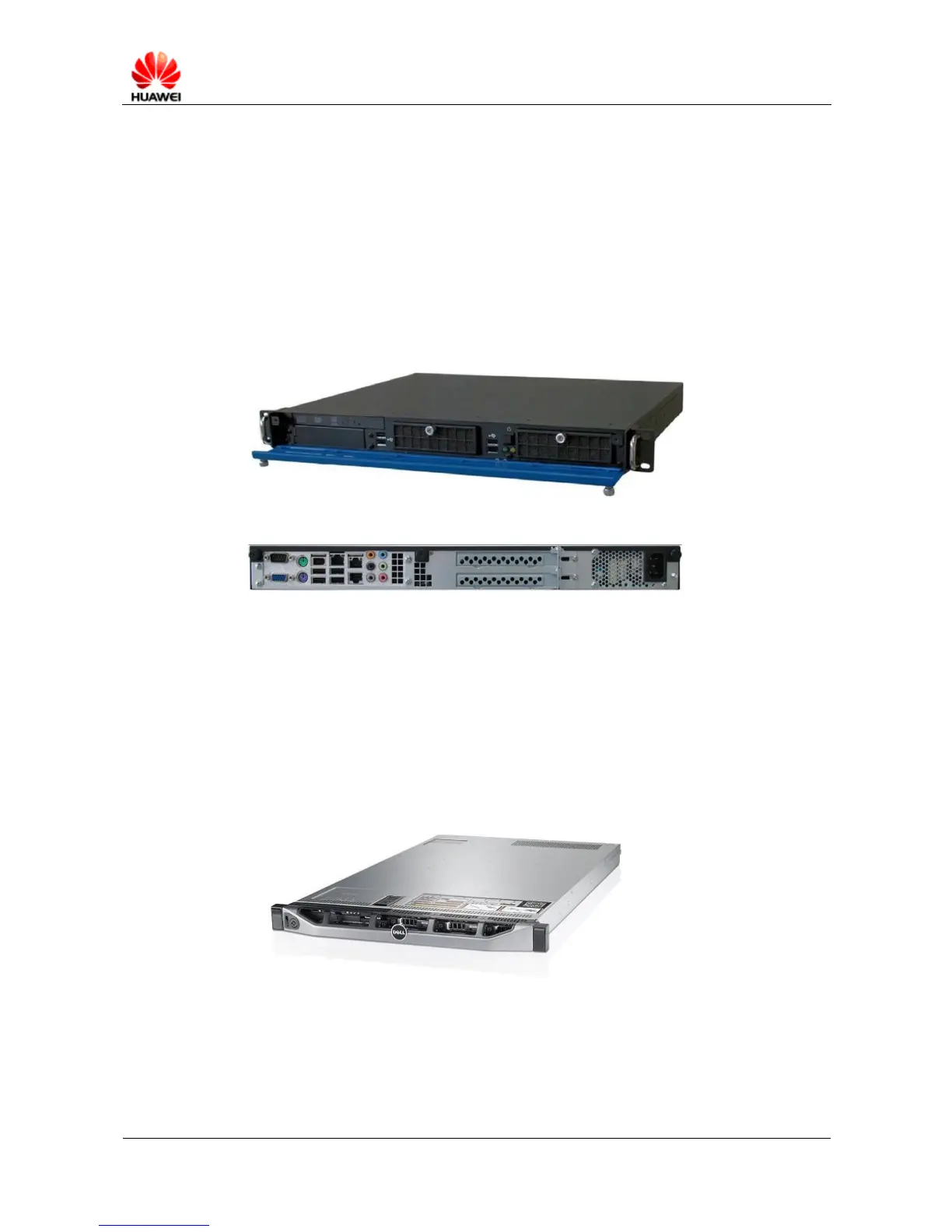

Figure 3-2 shows the appearance of an JPC-8110.
Figure 3-2 KISS 1U SHORT KTQM67
KISS 1U SHORT KTQM67 front panel
KISS 1U SHORT KTQM67 back panel
Single Station or Small Network Scenario
In these scenarios, an eMDC610 is installed in a DELL R620 server. In the single station
scenario, eMDC610 and eMRS610 are integrated into a DELL R620 server. Figure 3-3 shows
the appearance of an R620.
Figure 3-3 Appearance of an R620 server
Large Network Scenario
In this scenario, an eMDC610 is installed in a DELL R820 server. Figure 3-4 shows the
appearance of an R820.
