Huawei eMDC610 - Front View; Rear View

eLTE3.1 Dispatch Platform
Product Description
Issue 04 (2014-08-06)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Page 34 of 46

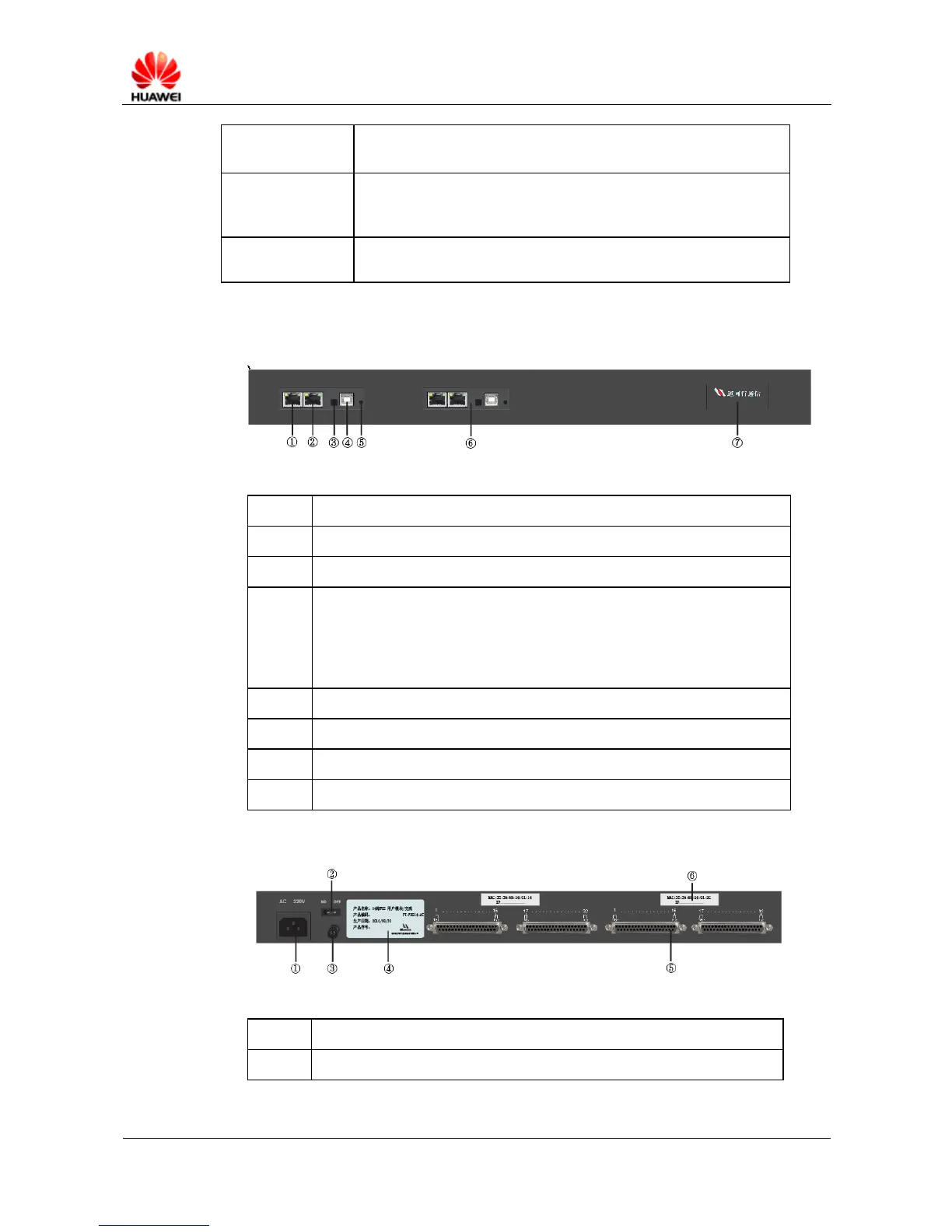

Front View
An ETS trunking gateway is 1 U high and supports 19-inch standard rack installation.
No.
Description
1
Ethernet port 1
2
Ethernet port 2
3
Three indicators are available. The first is the power indicator, the second
is the running status indicator, and the third is the fault indicator. When the
system starts up and runs properly, the power indicator is steady green, the
running status indicator is blinking green, and the fault indicator is off. If a
fault occurs, the fault indicator turns red.
4
Serial port
5
Reset button
6
Ports on board 2, identical in the meaning of each port described above
7
Trademark
Rear View
No.
Description
1
220 V power socket
ETS-8WP
Trunking, ultra short wave, and short wave gateway, providing VOX
and COR, and supporting eight channels
ETS-4WAP
Trunking, ultra short wave, and short wave gateway, providing the
VOX, COR, and channel change, and supporting four channels
ETS-2WA
AT command trunking gateway, supporting two channels
