a) Small Network Scenario and Large Network Scenario
In these scenarios, eMRS610 is installed in DELL R620 servers that selectively work with
DELL MD1220 disk arrays. Figure 4-2 shows the appearance of an R620.

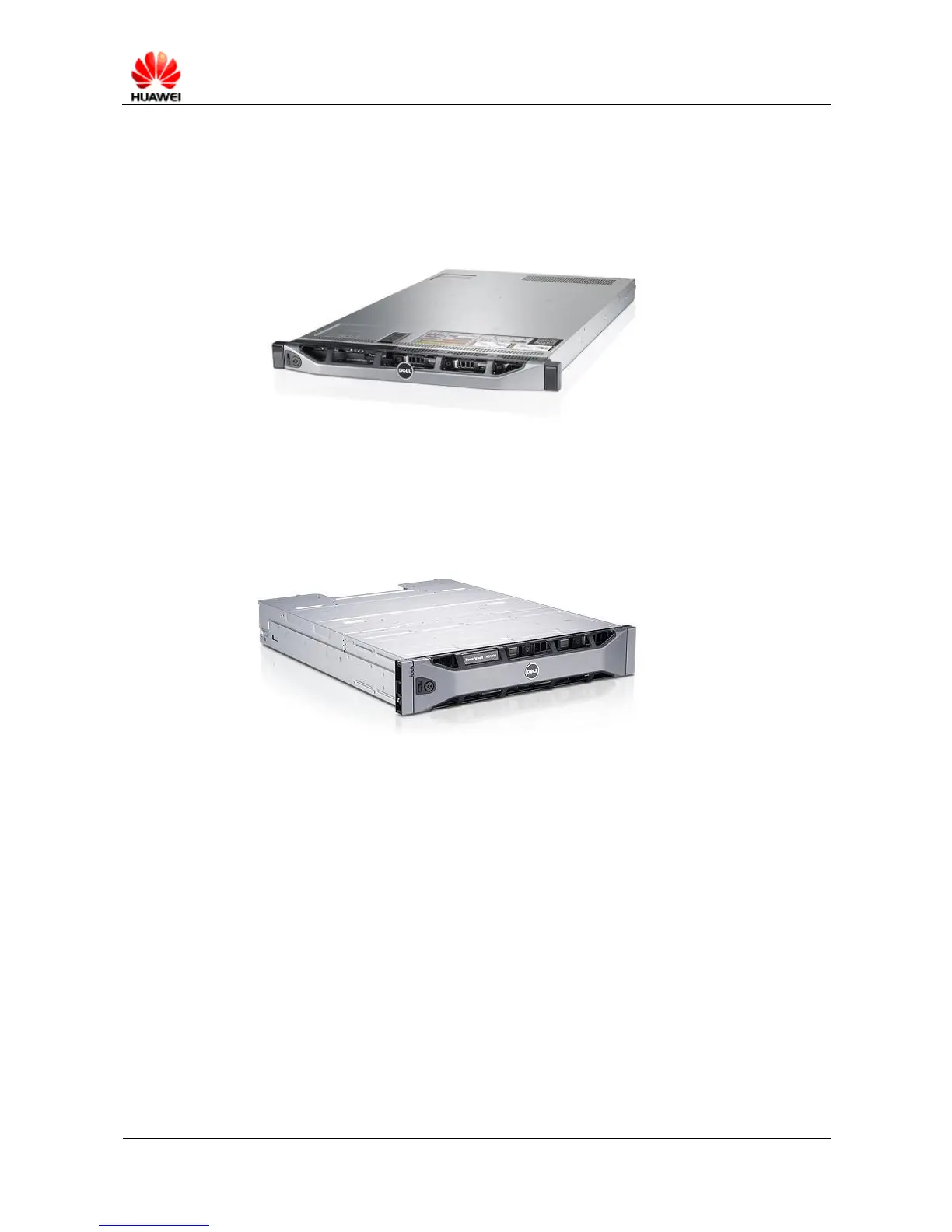

Figure 4-2 R620 server appearance
Figure 4-3 shows the appearance of an MD1220.
Figure 4-3 MD1220 disk array appearance
4.3 Technical Specifications
This section describes the technical specifications of eMRS610.
