•To check tail fiber connection, you need to check the deviation of the optical power between an optical interface
on the board and the peer interface on the ODF. If the optical power meter reads a value less than or equal to 1
dB, it indicates that the tail fiber connection is correct. Otherwise, check the fiber.
•If the fiber is connected through a flange, the deviation should be less than 2 dB.
•When using an optical power meter during a test, you are recommended to record the launched optical power
of each optical interface and check whether the launched optical power is normal.
•Consult the project supervisor or software engineer and determine whether it is necessary to test the received
optical power by using an optical power meter, with an intention to check whether the received optical power is
normal.
2

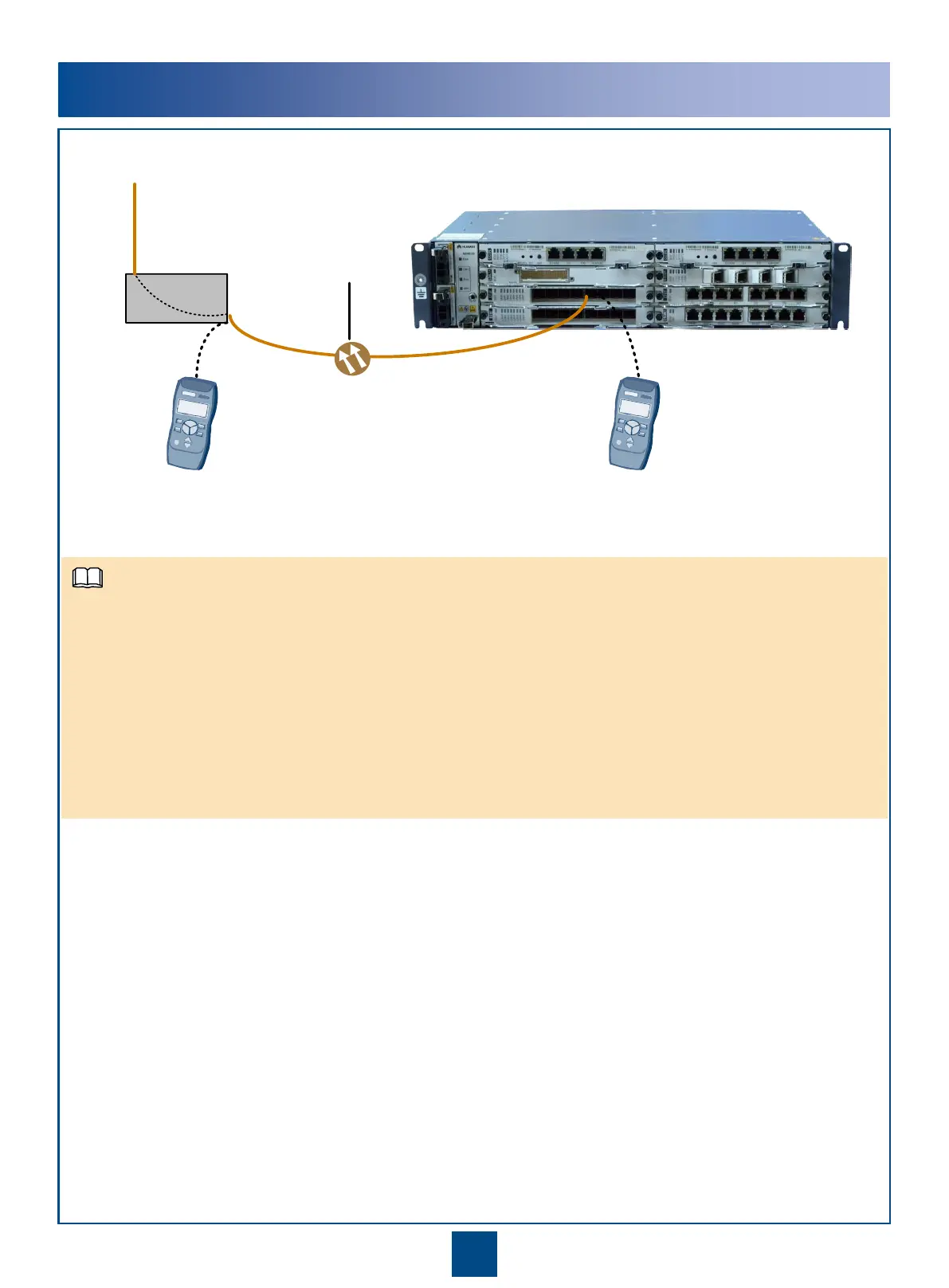

Checking Tail Fiber Connection
External cable
Optical power
meter
Fiber jumper
connected to the
OUT port
Optical power
meter
NOTE
To Next Page
