Huawei S1700 Series User Manual

3 Two 1000BASE-X ports 4 Reset button
NOTICE
To restore the factory settings of a
switch, hold down the Reset button for
at least 6 seconds. This operation will
not reset the switch.
To reset a switch, press the Reset
button.
Resetting the switch will cause service
interruption. Exercise caution when you
press the Reset button.
5 Ground screw
NOTE
No ground cable is delivered with the
switch.
6
AC power socket
NOTE
It is used with an AC power cable.
Indicators

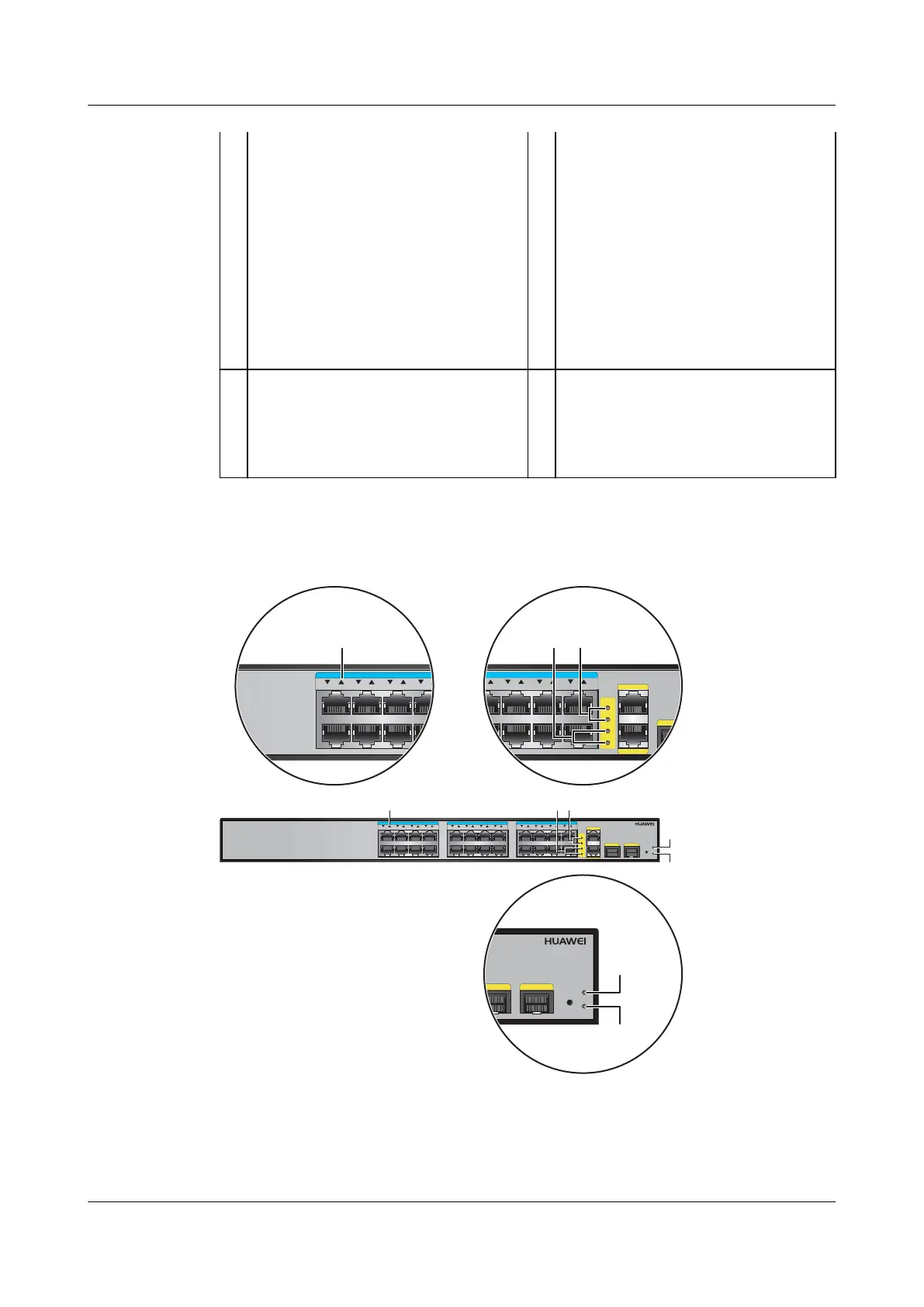

Figure 5-2 Indicators on the S1700-28FR-2T2P-AC
S1700-28FR-2T2P-AC
GE 3 GE 4
12 34 56 78
RESET
PWR
RUN
910 1112 1314 1516
17 18 19 20 21 22 23 24
GE 2
GE 1
GE 1
GE 2
GE 3
GE 4
2
1
345
GE 3
18 19 20 21 22 23 24
GE 2
GE 1
GE 1
GE 2
GE 3
GE 4
45
GE 3 GE 4
RESET
PWR
RUN
2
1
12 34 56 78
3
S1700 Managed Series Ethernet Switches
Product Description
5 Hardware Structure
Issue 18 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 19
